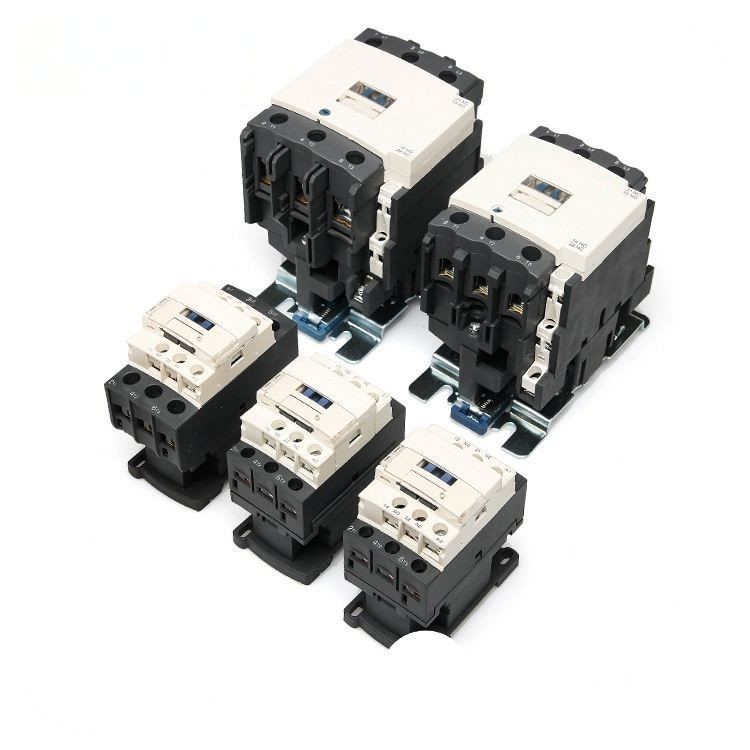

This 3 Pole AC Contactor is designed in accordance with IEC60947-4-1 and is suitable for 3-phase power system. It is rated with operational voltage of 220VAC and current of 20A, 32A, 40A, 50A, 60A, 80A, 125A, and provides reliable performance and protection. It is equipped with an IP20 grade protection level and insulation voltage of 690VAC, and it is capable of 3600/h mechanical endurance.
| Parameter | Value |
|---|---|
| Power Frequency | 50/60Hz |
| Rated Operational Current | 60A |
| Protection Level | IP20 |
| Rated Current | 20A, 32A, 40A, 50A, 60A, 80A, 125A |
| Rated Operational Voltage | 220VAC |
| Installation Method | Screw OR DIN RAIL |
| Number of Auxiliary Contacts | 3 |
| Rated Voltage | 220VAC |
| Number of Poles | 3 |
| Rated Insulation Voltage | 690VAC |
| AC Magnetic Contactor | 3 Phase |
| Rail or Screw | Coil Voltage 220VAC |

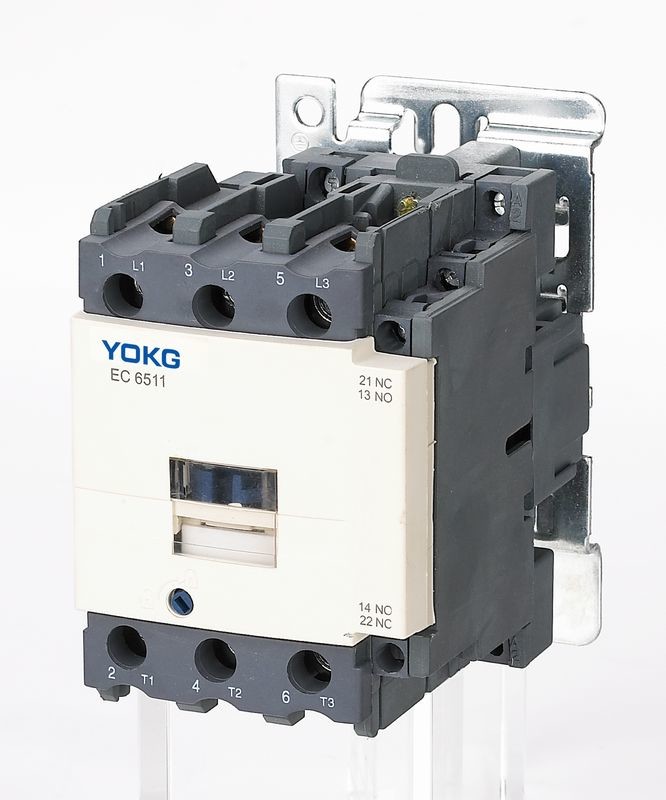

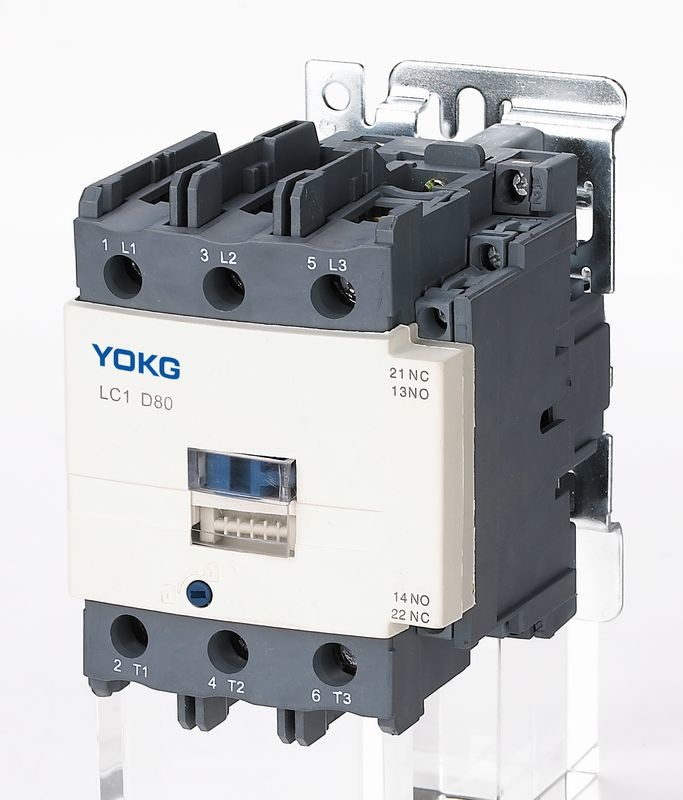

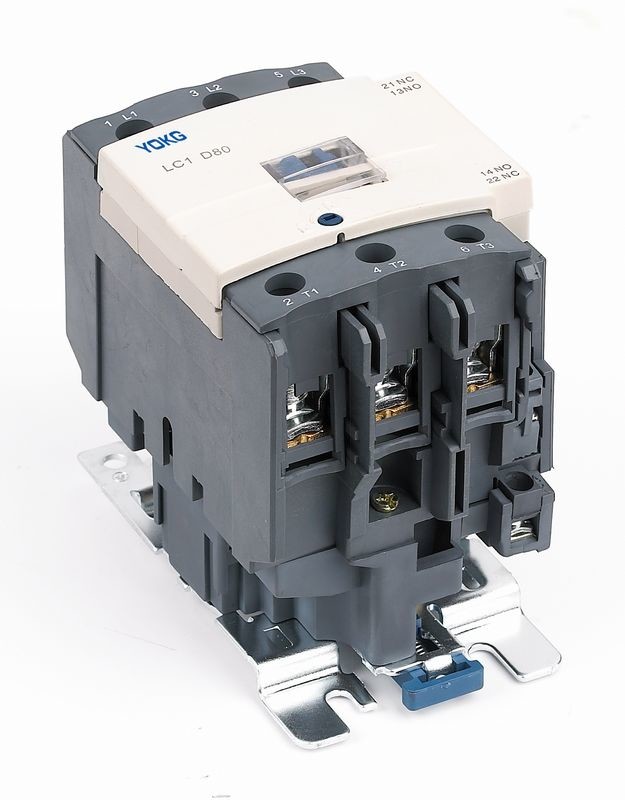

3 Pole AC Contactor is 3P+NC+NO AC contactor that is designed for the purpose of controlling 3-phase motors. It has been rated with insulation voltage 690VAC, rated operational voltage 220VAC, power frequency 50/60Hz, and rated operational current 60A. It also has 3 auxiliary contacts. It is available in the following models: SC1-09, SC1-12, SC1-18, SC1-25, SC1-32, SC1-40, SC1-50, SC1-65, SC1-80, and SC1-95. It is manufactured in Zhejiang, China.
This 3 Pole AC Contactor is suitable for controlling various types of industrial equipment and appliances, such as pumps, compressors, cranes, motors, and other machinery. It can be used in residential, commercial, and industrial applications. It provides reliable operation and is suitable for a wide range of applications. It is easy to install and requires low maintenance.
This contactor is a cost-effective solution for controlling 3-phase motors. It is designed for long-term use and can provide reliable and efficient operation. It is also highly reliable and safe to use. It is the perfect choice for controlling 3-phase motors in residential, commercial, and industrial applications.
We provide 3 Pole AC Contactor with the following features:
