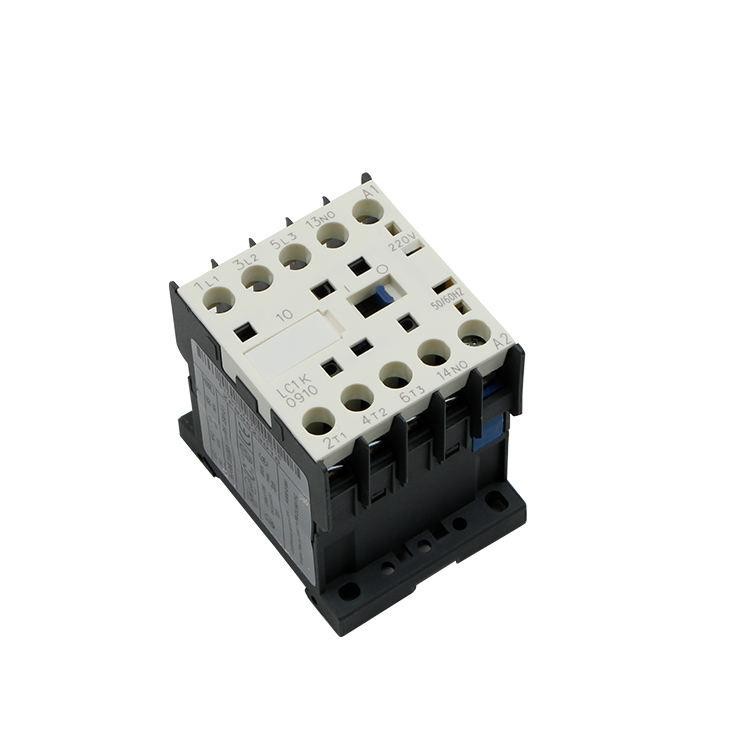

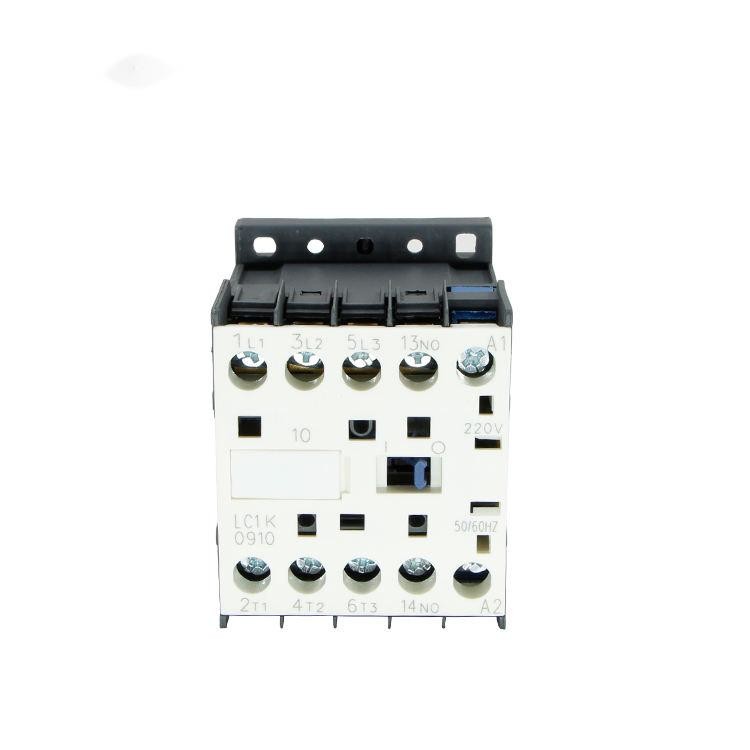

Magnetic LC1-K06 09 12 16A Mini Ac Contactor Lc1k0910f7 Lc1k0910m7 Lc1k0910u7
Application:
LC1-K series AC contactor is suitable for using in the circuit up to the rate and frequent starting,controling the AC motor.
The addtion of auxiliary contact group to the contactor,combined with the proper thermal relay,can act to protect the circuit
bound to overload.
Coil voltages available:
LC1-K: AC 24V 36V 48V 110V 220V 380V
Standard control coil voltage CODE:
| LC1K (AC voltage coil) | |||||||||||||||||
| Volts (50/60Hz) |
12 | 20 | 24 | 36 | 42 | 48 | 110 | 115 | 120 | 127 | 200/ 208 |
220/ 230 |
230 | 230/ 240 |
256 | 277 | 380/ 400 |
| Code | J7 | Z7 | B7 | C7 | D7 | E7 | F7 | FE7 | G7 | FC7 | L7 | M7 | P7 | U7 | W7 | UE7 | Q7 |
| Volts (50/60Hz) |
400 | 400/ 415 |
440 | 480 | 500 | 575 | 600 | 660/ 690 |
|||||||||
| Code | V7 | N7 | R7 | T7 | S7 | SC7 | X7 | Y7 | |||||||||
FAQ:
1.How can we get quotations?
A:We will send quotations within 24 hours after getting your enquiry. Urgent need you can call us or send us messages via Whatsapp.
2.Can we get sample to check your quality?
A:All items sample are available.
3.Can you do the design for packing?
A:Yes. We have ad team can assist you design inner and outer box if need.
4.What is your terms of delivery?
A:Normally we work on EXW FOB CIF.
