Product Details:
|
| Rated Insulating Voltage: | 690V | Protection Level: | IP65 |
|---|---|---|---|
| Type: | Motor Protection | Rated Current(A): | 9A 12A 18A 25A 32A 40A 50A 65A 80A 95A |
| Product Name: | AC Contactor Motor Magnetic Starter | Material: | Plastic Silver Copper |
| High Light: | Silver Copper Point Magnetic Contactor,7.5kw 18A Magnetic Starter Switch,380V Magnetic Starter Switch 3 Phase |
||

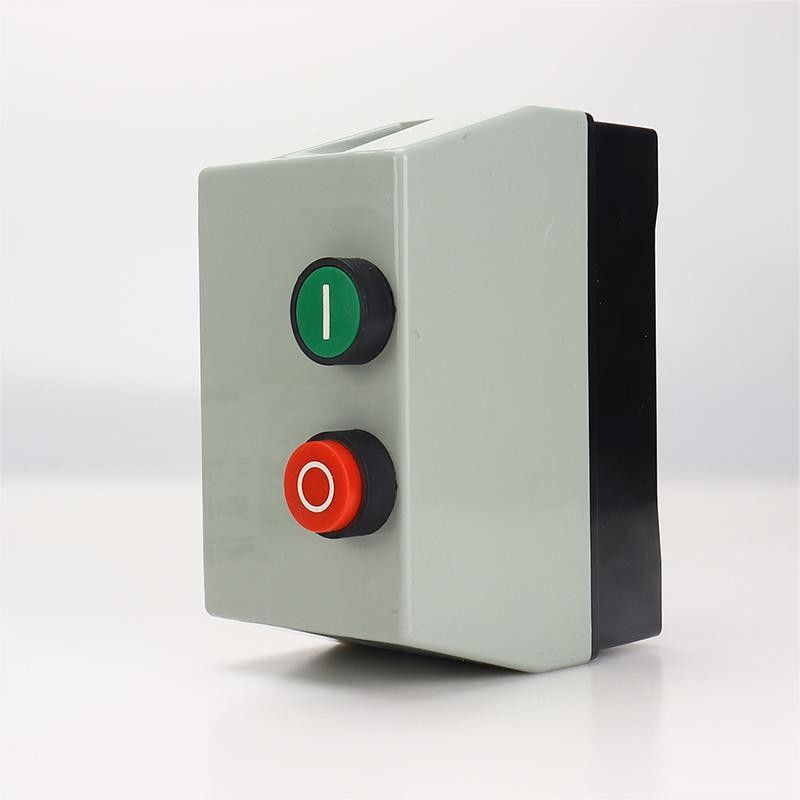

2.7.5kw 18A 3 Phase Start Stop Switch 220V 380V Silver Copper Point Magnetic Contactor
Application:
|
Product Name:
|
Magnetic starter
|
|
Model:
|
SE1 series
|
|
Brand Name
|
Yokg or OEM
|
|
Rated voltage:
|
AC 110V-400V
|
|
Rated frequency:
|
50Hz/60Hz
|
|
Number of poles:
|
3P+NO/NC
|
|
Rated current:
|
09A 12A 18A 20A 25A 32A 40A 50A 63A 80A 95A
|
|
Executive Standards:
|
IEC 60947-4
|
|
Installation:
|
Din rail / screw installation
|
|
Application
|
AC Magnetic starter
|
Technical data:
| Model | Rated working current |
Three phase capacity | Matching thermal overload relay | Current setting range | ||
| 220V/230V | 380V/400V | 415V/440V | ||||
| SE1-09 | 9 | 2.2 | 4 | 4 | LR2-D1314 | 7～10 |
| SE1-12 | 12 | 3 | 5.5 | 5.5 | LR2-D1316 | 9～13 |
| SE1-18 | 18 | 4 | 7.5 | 9 | LR2-D1321 | 12～18 |
Thermal overload relay model pictures as following:
FAQ:
1.Can I get samples before place an order ? because I really don't know how is your product quality.
Of course! We also believe that sample order is the best way to prove the quality.
2.Can you print our own logo?
Yes,Our company are available for OEM.
3.Can you produce according to the samples?
Yes, we can produce by your samples.
