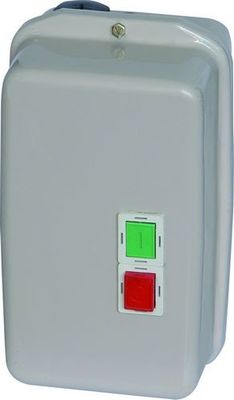

220V 380vac Three Phase Magnetic Starter Contactor Motor Starter SE1-40~65
Application:
SE1 series magnetic starter is mainly used in the circuit of AC 50 HZ or 60 HZ, rated insulation of 440V, and the rated current up to 95A, apply to start the electromotor and parking. The Three Phase Magnetic Starter magenetic rated working current can be 40A, 50A, 65A, IP55 Protection. 2 Push buttons make the starter switch can be controlled easily.
Technical data:
| Model | Rated working current |
Three phase capacity | Matching thermal overload relay | Current setting range | ||
| 220V/230V | 380V/400V | 415V/440V | ||||
| SE1-40 | 40 | 11 | 18.5 | 22 | LR2-D3355 | 30～40 |
| SE1-50 | 50 | 15 | 22 | 25 | LR2-D3359 | 48～65 |
| SE1-65 | 65 | 18.5 | 30 | 37 | LR2-D3361 | 55～70 |
Thermal overload relay model pictures as following:
