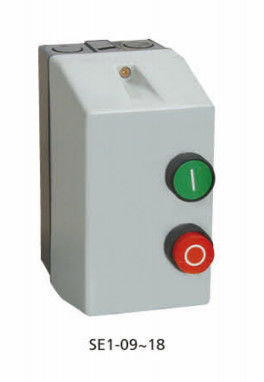

IP55 9A 12 Amp 18A 3 Phase Manual Motor Starter Switch With Push Buttons SE1-09 SE1-18

Basic Information

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	SE1-09～18

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month

Get Best Price Contact Now

Detail Information

Rated Working Current:	9A,12A,18A	Color:	White
Material:	Plastic, Metal	Standard:	IEC60947-4-1, GB14048.4
Coil:	AC	Protection:	IP55
Highlight:	18A 3 Phase Manual Motor Starter Switch , IP55 AC Motor Starter Switch , SE1 09 3 Phase Motor Starter

Product Description

9A 12 Amp 18A Magnetic Starter AC Contactor Push Buttons SE1-09~18

Application:

SE1 series magnetic starter is mainly used in the circuit of AC 50 HZ or 60 HZ, rated insulation of 440V, and the rated current up to 95A, apply to start the electromotor and parking

Technical data:

Model	Rated working current	Three phase capacity			Matching thermal overload relay	Current setting range
Model	Rated working current	220V/230V	380V/400V	415V/440V	Matching thermal overload relay	Current setting range
SE1-09	9	2.2	4	4	LR2-D1314	7～10
SE1-12	12	3	5.5	5.5	LR2-D1316	9～13
SE1-18	18	4	7.5	9	LR2-D1321	12～18

IP55 9A 12 Amp 18A 3 Phase Manual Motor Starter Switch With Push Buttons SE1-09 SE1-18 0

IP55 9A 12 Amp 18A 3 Phase Manual Motor Starter Switch With Push Buttons SE1-09 SE1-18 2

Thermal overload relay model pictures as following:

IP55 9A 12 Amp 18A 3 Phase Manual Motor Starter Switch With Push Buttons SE1-09 SE1-18 3
