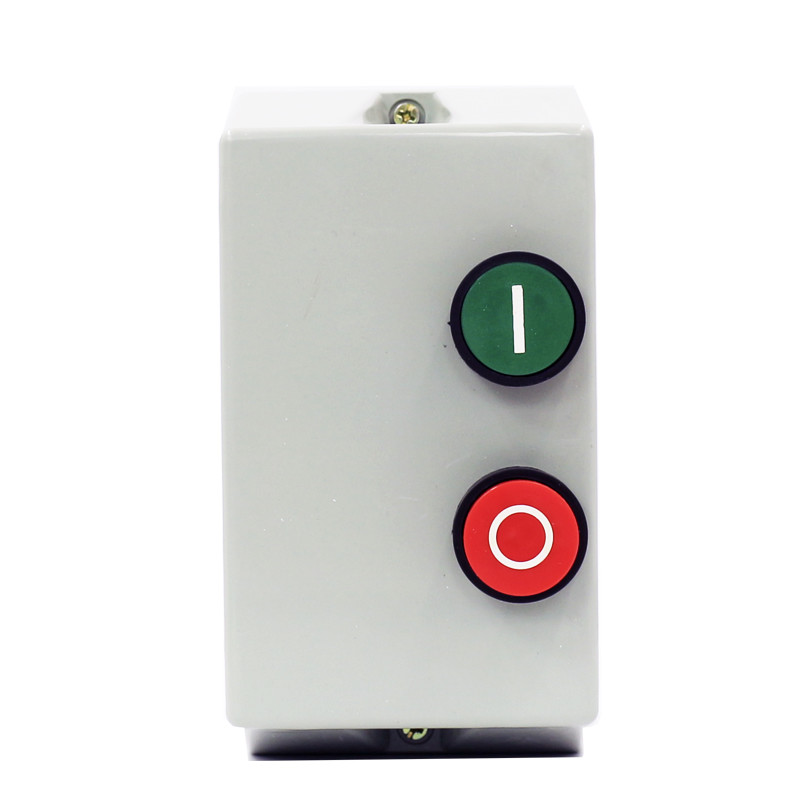

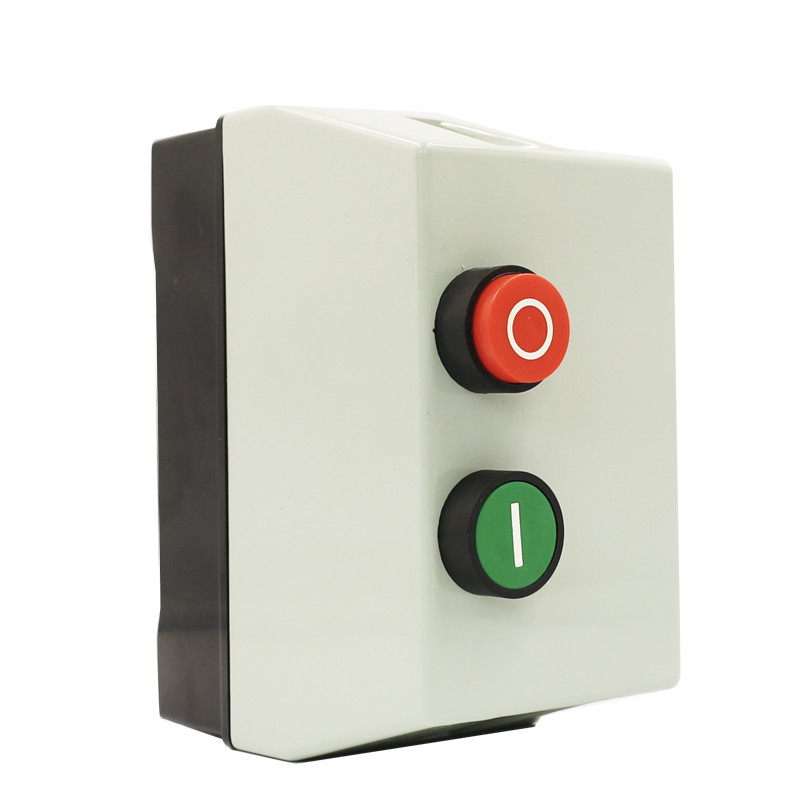

9amp 18A SE1-09~18 220V 380V Motor Magnetic Starter Switch
Application:
SE1 series magnetic starter is mainly used in the circuit of AC 50 HZ or 60 HZ, rated insulation of 440V, and the rated current up to 95A, apply to start the electromotor and parking
Characteristics:
Standard: IEC60947-4-1, GB14048.4
Ambient temperature: -5 ℃ to +40 ℃
Operating positions: Identical to positions for contactors
Technical data:
| Model | Rated working current |
Three phase capacity | Matching thermal overload relay | Current setting range | ||
| 220V/230V | 380V/400V | 415V/440V | ||||
| SE1-09 | 9 | 2.2 | 4 | 4 | LR2-D1314 | 7～10 |
| SE1-12 | 12 | 3 | 5.5 | 5.5 | LR2-D1316 | 9～13 |
| SE1-18 | 18 | 4 | 7.5 | 9 | LR2-D1321 | 12～18 |

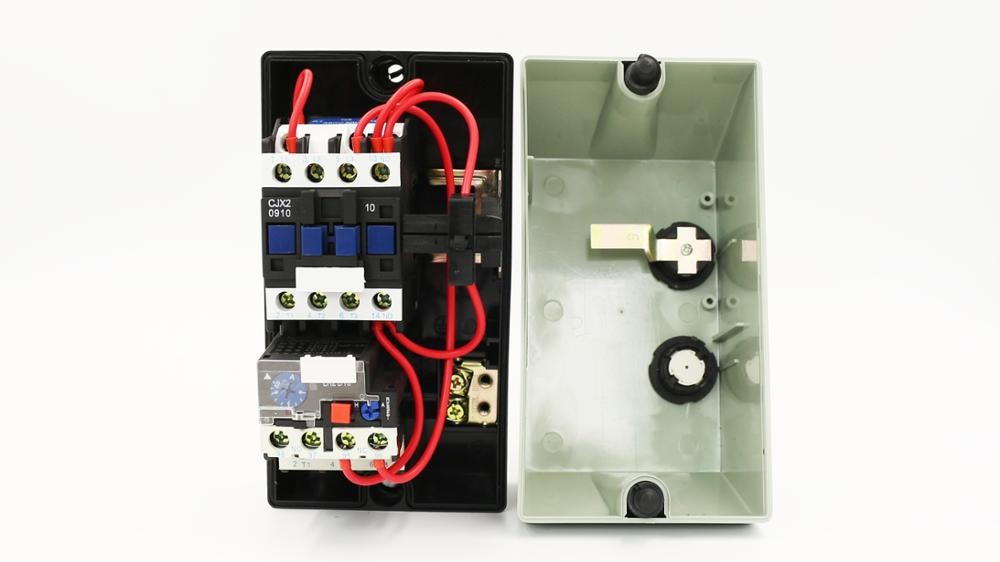

Thermal overload relay model pictures as following:
