Product Details:
|
| Main Circuit Rating Current: | 40A | Current Range: | 9A, 12A,18A, 25A, 32A, 40A, 50A, 65A,80A, 95A |
|---|---|---|---|
| Product Name: | AC Contactor | Auxiliary Contact: | 1NO+1NC 1NO 1NC |
| Model Number: | LC1D | Frequency Of Coil: | 50Hz,60Hz,50/60HZ |
| High Light: | 3P AC Contactor With Wiring Diagram,1NO+1NC Telemecanique Contactor,LC1D Series 3 Pole AC Contactor |
||

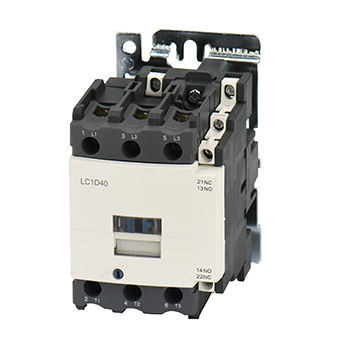

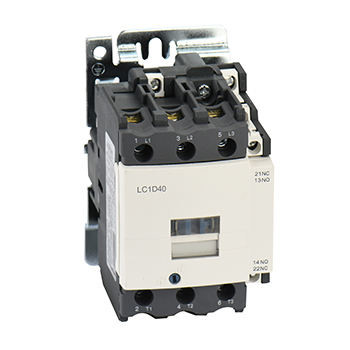

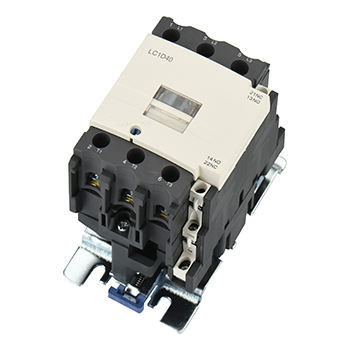

LC1D Series 40A 220v 1NO+1NC Telemecanique Contactor With Wiring Diagram Function
General:
Installation: Din rail / screw installation
Certification: CE,CB,TUV
Standard: IEC 60947-1, IEC 60947-4-1
Ambient temperature: -5℃~+40℃
Wiring capacity(mm): 1.5-35
Frequency: 50/60Hz
Altitude: ≤ 2000m
Pollution degree: Class 3
Installation category: III
Protection degree: IP20
Features:
1.This SC1 AC contactor with a dust cover for protection and more pretty.
2.With the thermal relay,it combined into the electromagnetic starter.
3.Full set accessories
4.Auxiliary contact group Top hung/side hung
5.Time-delay auxiliary contact
Model and Implication:
Main parameters and Technical Performance:
| Type | SC1-40 | SC1-50 | SC1-65 | SC1-80 | SC1-95 | ||
| Rated heating current (A) | 50 | 60 | 80 | 110 | 110 | ||
| Rated insulation voltage (V) | 690 | ||||||
| Rated impact withstand voltage (KV) | 6 | ||||||
| Rated making capacity | 10le | ||||||
| Rated breaking capacity | 8le | ||||||
| Poles | 3 | ||||||
| Auxiliary contact | 1NO + 1NC | ||||||
| Short-time withstand current(A) | 10S | 320 | 400 | 520 | 640 | 760 | |
| AC-3 Rated working current(A) |
220V/230V | 40 | 50 | 65 | 80 | 95 | |
| 380V/400V | 40 | 50 | 65 | 80 | 95 | ||
| 660V/690V | 34 | 39 | 42 | 49 | 49 | ||
| AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW |
220V/230V | 11 | 15 | 18.5 | 22 | 25 | |
| 380V/400V | 18.5 | 22 | 30 | 37 | 45 | ||
| 660V/690V | 30 | 33 | 37 | 45 | 45 | ||
| Operation frequency (times/h) | Electrical life | 600 | |||||
| Mechanical life | 3600 | ||||||
| AC-3 Electrical life (10000/times) | 80 | 60 | 60 | 60 | 60 | ||
| Mechanical life (10000/times) | 800 | 800 | 800 | 600 | 600 | ||
| Equipped fuse type | RT16-63 | RT16-80 | RT16-80 | RT16-100 | RT16-125 | ||
| Rated control supply voltage Us(V) | 50/60Hz | 12～480 | |||||
| Operation range | Pull-in | (85%～110%)Us +40℃ | |||||
| Releasing | (20%～75%)Us -5℃ | ||||||
| Ac coil average power(VA) | Start | 200 | |||||
| Keeping | 20 | ||||||
| Power efficiency class | class 3 | ||||||
| Thermal loss(W) | 6 ～10 | ||||||
| Actuation time(ms) | Close | 20 ～ 25 | 20 ～ 35 | ||||
| Break | 8 ～ 15 | 8 ～ 20 | |||||
| Main circuit wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 2.5～25 | 2.5～25 | 2.5～25 | 4～50 | 4～50 |
| 2 sticks | 2.5～16 | 2.5～16 | 2.5～16 | 4～25 | 4～25 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 2.5～25 | 2.5～25 | 2.5～25 | 4～50 | 4～50 | |
| 2 sticks | 2.5～10 | 2.5～10 | 2.5～10 | 4～16 | 4～16 | ||
| Hard wire (㎟) | 1 stick | 2.5～25 | 2.5～25 | 2.5～25 | 4～50 | 4～50 | |
| 2 sticks | 2.5～16 | 2.5～16 | 2.5～16 | 4～25 | 4～25 | ||
| Fastening screw size | M8 | M10 | |||||
| Tightening fastening torque (N.m) | 3.5 | 4 | |||||
| Control loop wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | ||
| Hard wire (㎟) | 1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| Fastening screw size | M3.5 | ||||||
| Tightening fastening torque (N.m) | 0.8 | ||||||
Appearance and Installation Dimension:
Installation dimension:
| Type | A max | B max | C max | a | b | ∅ |
| SC1-40～65 | 75 | 127 | 119 | 40 | 100/110 | 6.5 |
| SC1-80～95 | 85 | 127 | 130 | 40 | 100/110 | 6.5 |
FAQ:
Q: Are you the MANUFACTURER or Trader?
A: we are the factory for switching power supply, as well as other products, the products are of high quality with most reasonable price.
Q: What is the LEAD TIME?
A: the lead time is usually 5-20 days, it depends on your exact product and quantity.
Q: Do you accept OEM?
A: Yes, it is highly welcome.
