Product Details:
|
| Number Of Pole: | AC1,AC3 | Product's Life: | 10000 Thousands |
|---|---|---|---|
| Auxiliary Contact: | 1NO+1NC,2NO+2NC | Frequency: | AC50/60Hz |
| Brand Name: | YOKG, OEM | Category: | AC Contactor |
| High Light: | GC Series 3 Pole AC Contactor,220V Magnetic AC Contactor,3 Pole Electrical Magnetic AC Contactor |
||

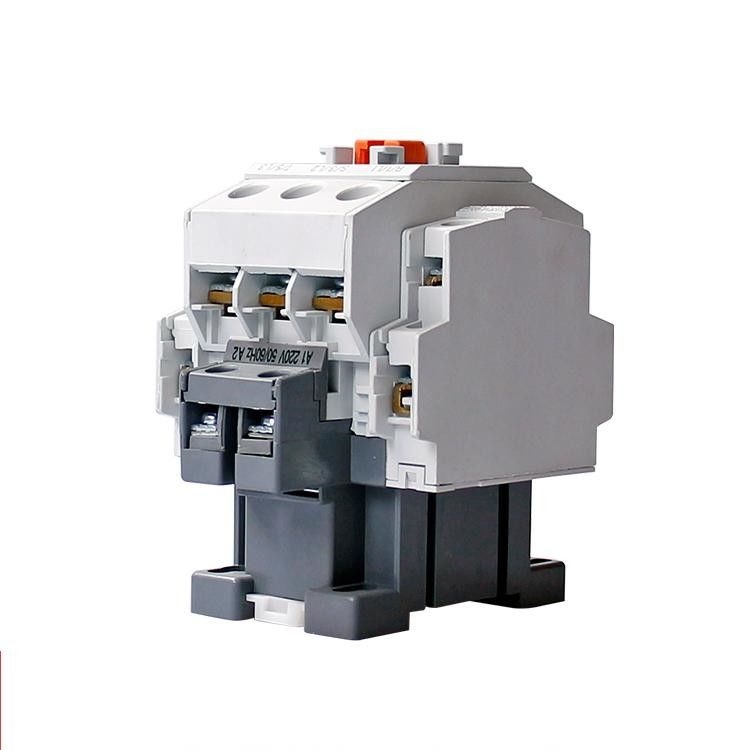

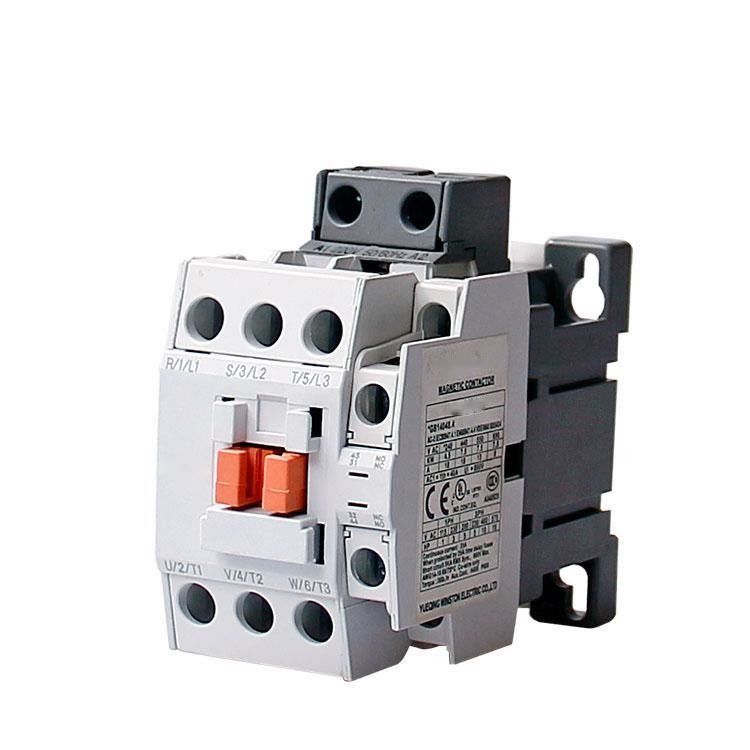

GC Series AC 220V 3 Phase 25A Motor Control Electrical Magnetic AC Contactor
Main parameters and Technical Performance:
| Type | GC-9 | GC-12 | GC-18 | GC-22 | ||
| Rated heating current (A) | 25 | 25 | 40 | 40 | ||
| Rated insulation voltage (V) | 690 | |||||
| Rated impact withstand voltage (KV) | 6 | |||||
| Rated making capacity | 10le | |||||
| Rated breaking capacity | 8le | |||||
| Poles | 3 | |||||
| Auxiliary contact | 1NC+1NO | |||||
| Short-time withstand current(A) | 10S | 72 | 96 | 144 | 196 | |
| IEC-60947 | AC1 Load | 25 | 25 | 40 | 40 | |
| AC3 Load power |
200～240V | 2.5KW | 3.5KW | 4.5KW | 5.5KW | |
| 380～440V | 4KW | 5.5KW | 7.5KW | 11KW | ||
| 500～550V | 4KW | 7.5KW | 7.5KW | 15KW | ||
| 690V | 4KW | 7.5KW | 7.5KW | 15KW | ||
| AC3 Load current |
200～240V | 11A | 13A | 18A | 22A | |
| 380～440V | 9A | 12A | 18A | 22A | ||
| 500～550V | 7A | 12A | 13A | 18A | ||
| 690V | 5A | 9A | 9A | 32A | ||
| UL508 | Continuous current | 20A | 25A | 30A | 32A | |
| single-phase machine |
115V | 0.5HP | 0.5HP | 1HP | 2HP | |
| 230V | 1HP | 2HP | 3HP | 3HP | ||
| Three-phase machine |
200V | 2HP | 3HP | 5HP | 7.5HP | |
| 230V | 2HP | 3HP | 5HP | 7.5HP | ||
| 460V | 5HP | 7.5HP | 10HP | 10HP | ||
| 575V | 7.5HP | 10HP | 15HP | 15HP | ||
| Operation frequency (times/h) | Electrical life | 1200 | ||||
| Mechanical life | 3600 | |||||
| AC-3 Electrical life (10000/times) | 100 | 100 | 100 | 100 | ||
| Mechanical life (10000/times) | 1000 | 1000 | 1000 | 1000 |
||
Installation dimension:
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
Why Choose Us:
--------------------------------------------------------------------
a. Reply your inquire in 24 working hour.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on our goods and service.
