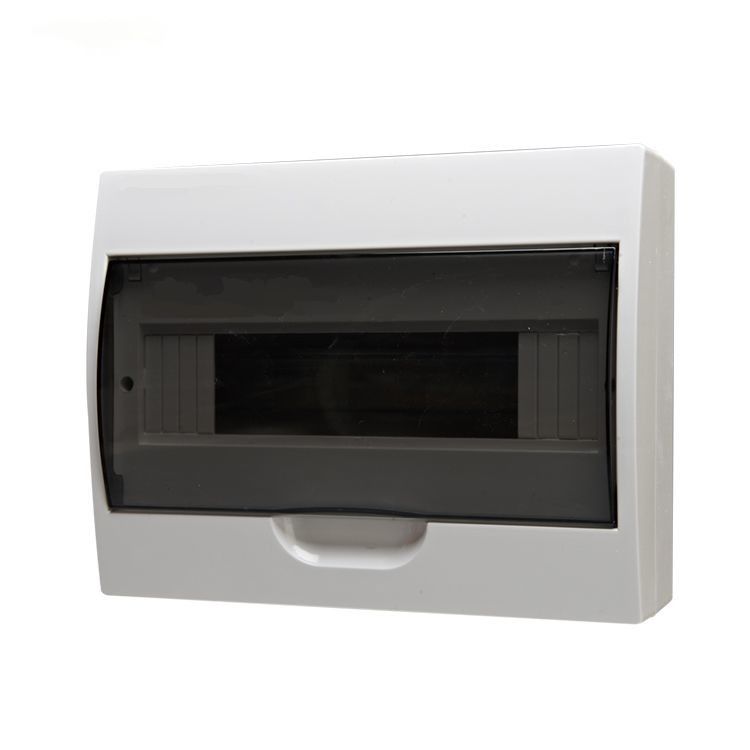

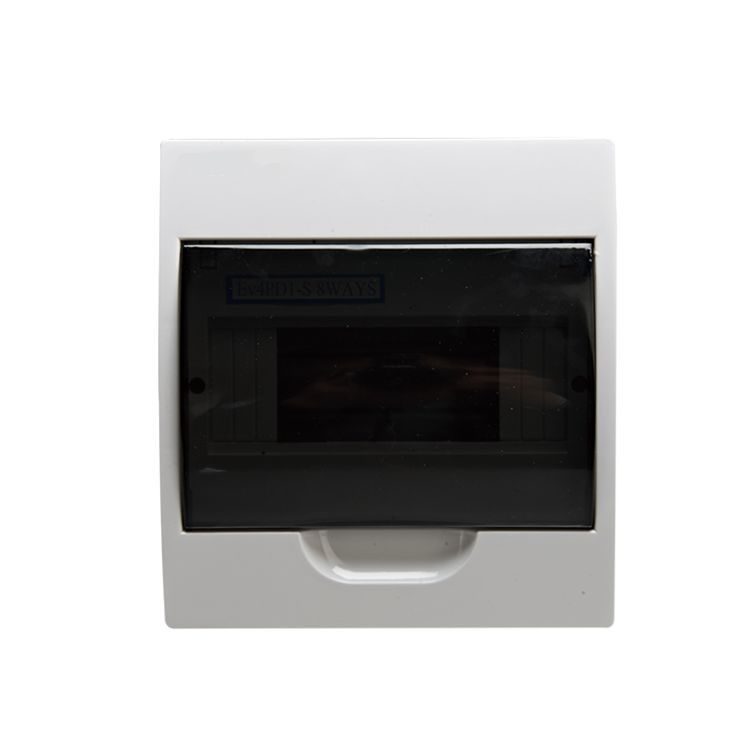

6ways Power Circuit Breaker Box Indoor Electrical Distribution Box
General:
TXM Series distribution box have following characteristics:
♦ High impact resistance material
♦ Safe and full material copper terminals
♦ Ultra-large space box for moving and easy wiring
♦ Function of Distribution box:protect MCB and other devices.
Model description:
Concealed mounted:
| Model | Dimensions | ||
| L (mm) | W (mm) | H (mm) | |
| TXM-2RAP | 94 | 146 | 85 |
| TXM-4RAP | 135 | 222 | 85 |
| TXM-6RAP | 171 | 222 | 85 |
| TXM-8RAP | 207 | 222 | 85 |
| TXM-10RAP | 244 | 222 | 85 |
| TXM-12RAP | 280 | 222 | 85 |
| TXM-15RAP | 334 | 222 | 85 |
| TXM-18RAP | 399 | 251 | 92 |
| TXM-24RAP | 300 | 344 | 98 |
| TXM-36RAP | 300 | 481 | 98 |
Opend mounted:
| Model | Dimensions | ||
| L (mm) | W (mm) | H (mm) | |
| TXM-2RAP | 94 | 146 | 85 |
| TXM-4RAP | 112 | 200 | 94 |
| TXM-6RAP | 146 | 200 | 94 |
| TXM-8RAP | 184 | 200 | 94 |
| TXM-10RAP | 222 | 200 | 94 |
| TXM-12RAP | 256 | 200 | 94 |
| TXM-15RAP | 312 | 200 | 94 |
| TXM-18RAP | 363 | 220 | 94 |
| TXM-24RAP | 270 | 325 | 94 |
| TXM-36RAP | 270 | 458 | 94 |
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2.Can I have a sample for testing?
Yes, we can offer free sample, but you should afford the shipping cost.
3. Are you a manufacture factory?
Yes, we are professional in producing low voltage eletric products nearlt 20 years, special owned high quality control team to ensure every detail.
4. Can I get one sample?
Yes, sure! We also agree that sample order is the best way to build the trust for our cooperation.
5. Does your products can print our logo?
Yes, OEM and ODM are acceptable.
6. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
7. How can I get the after-service?
We will send you free spare parts for repair if the problems are caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.
