Product Details:
|
| Material: | Plastic Panel, Iron Bottom | Installation Grade: | 3 |
|---|---|---|---|
| Way: | 4,6,9,13,16,26,32ways | Type: | Concealed Mounted Type, Open Mouted Type |
| Application: | Residential | Rtaed Voltage: | 220V, 380V |
| High Light: | SN 32 Way MCB Box,24 way distribution board 220V 380V,32 Way MCB DB Box 220V |
||

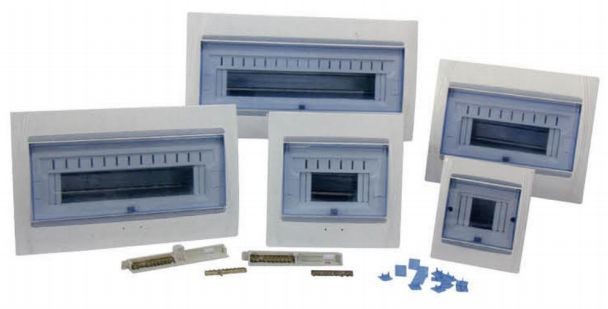

SN Series Factory 32 Way MCB Electrical Db Distribution Box Mounted Type
General:
SN series of luxury box is divided into two kinds concealed mounted type and open mouted type. It is with plastic panel and iron bottom. Two terminals (ground connection and zero connection)in the box are easy for the user wiring and routing. This product is applicable to the modular terminal circuit with AC of 50 Hz, rated voltages of 220V and 380V.
Concealed mounted:
| Model | Dimensions | ||
| L (mm) | W (mm) | H (mm) | |
| SN-2-4RA | 137 | 161 | 82 |
| SN-4-6RA | 208 | 208 | 95 |
| SN-7-9RA | 261 | 208 | 95 |
| SN-10-13RA | 334 | 208 | 95 |
| SN-14-16RA | 390 | 208 | 95 |
| SN-20-26RA | 334 | 416 | 95 |
| SN-28-32RA | 390 | 416 | 95 |
Opend mounted:
| Model | Dimensions | ||
| L (mm) | W (mm) | H (mm) | |
| SN-2-4MA | 137 | 161 | 82 |
| SN-4-6MA | 208 | 208 | 95 |
| SN-7-9MA | 261 | 208 | 95 |
| SN-10-13MA | 334 | 208 | 95 |
| SN-14-16MA | 390 | 208 | 95 |
| SN-20-26MA | 334 | 416 | 95 |
| SN-28-32MA | 390 | 416 | 95 |
Model description:
Features:
♦ Design of super--large and clear luminous bars, soft and elegant outline.
♦ Humanized circuitry symbols, prited display of control circuit breaker, clear and elegant.
♦ The guide-rail shoe palte has round hole, it is able to ragulate the cover of distribution box to level position.
