Waterproof Plastic Electrical DB Box 5 Way MCB Box IEC60439-3

100PCS
MOQ
Negotiable
Price
Waterproof Plastic Electrical DB Box 5 Way MCB Box IEC60439-3
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Electric Power System
Product Name: Electrical Distribution Box
Certificate: CE, Rohs
Type: Surface, Flush
Material: ABS
Standard: IEC/EN 60439-3
High Light:

IEC60439 3 Electrical DB Box

,

Waterproof Electrical DB Box MCB

,

IEC60439 5 way mcb box

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE, ROHS
Model Number: TXM series
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

Waterproof Plastic Electrical Power Distribution Box 5 Way



General:

TXM Series distribution box (hereinafter referred to as the distribution box) is mainly coposed of casing and moudular terminal apparatus, suitbale for ac 50/60Hz, the load current is less than 100 a single-phase three-wire terminal of the circuit, as to control the power distribution, electrical equipment, at the same time also on line overload, short circuit, leakage protection.





Concealed mounted:

Model Dimensions
L (mm) W (mm) H (mm)
TXM-2RAP 94 146 85
TXM-4RAP 135 222 85
TXM-6RAP 171 222 85
TXM-8RAP 207 222 85
TXM-10RAP 244 222 85
TXM-12RAP 280 222 85
TXM-15RAP 334 222 85
TXM-18RAP 399 251 92
TXM-24RAP 300 344 98
TXM-36RAP 300 481 98





Opend mounted:

Model Dimensions
L (mm) W (mm) H (mm)
TXM-2RAP 94 146 85
TXM-4RAP 112 200 94
TXM-6RAP 146 200 94
TXM-8RAP 184 200 94
TXM-10RAP 222 200 94
TXM-12RAP 256 200 94
TXM-15RAP 312 200 94
TXM-18RAP 363 220 94
TXM-24RAP 270 325 94
TXM-36RAP 270 458 94





Model description:

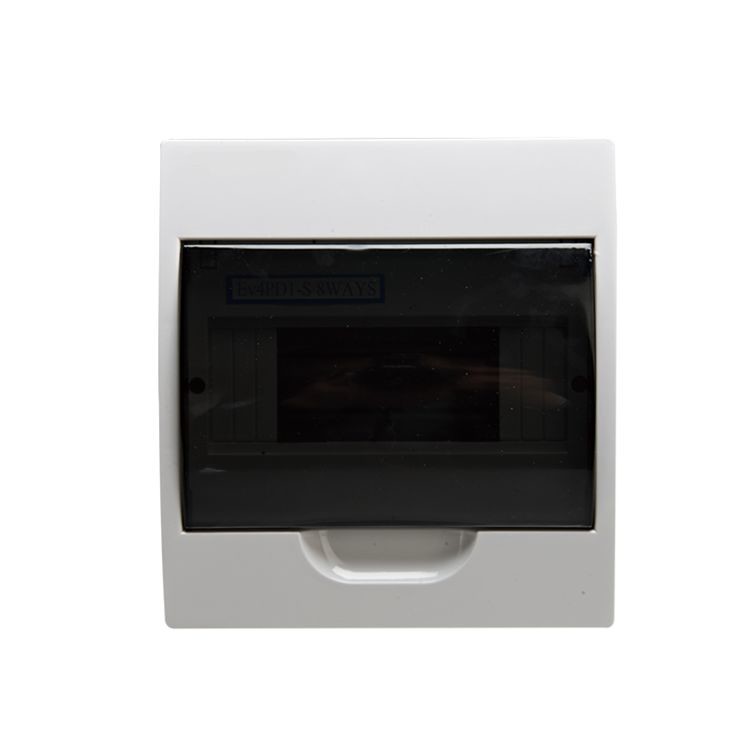

Waterproof Plastic Electrical DB Box 5 Way MCB Box IEC60439-3 0

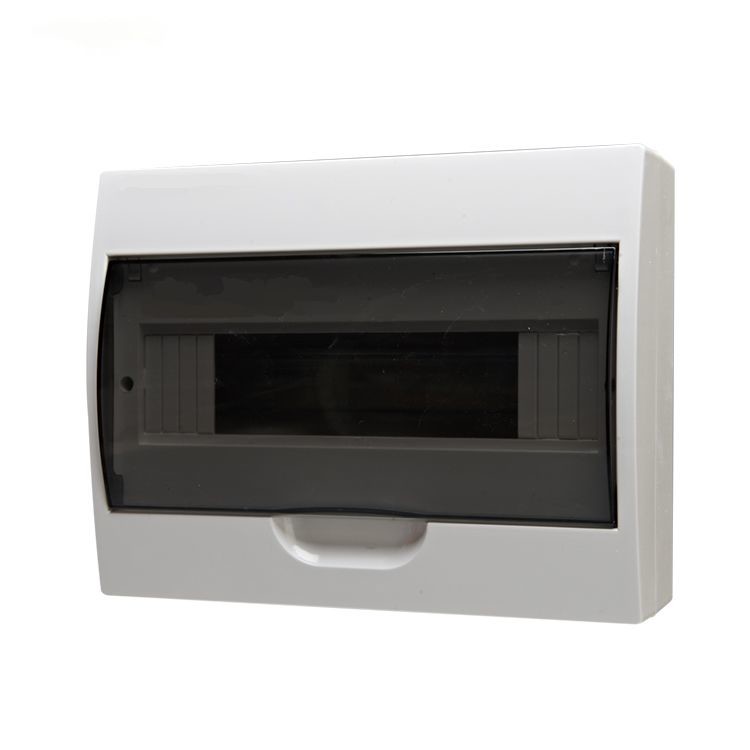

Waterproof Plastic Electrical DB Box 5 Way MCB Box IEC60439-3 1

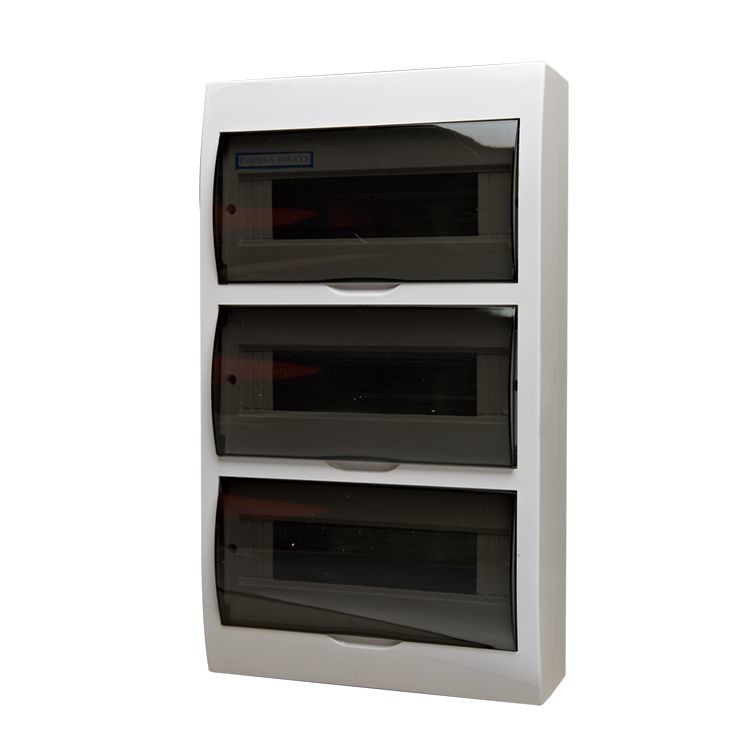

Waterproof Plastic Electrical DB Box 5 Way MCB Box IEC60439-3 2

Waterproof Plastic Electrical DB Box 5 Way MCB Box IEC60439-3 3

Waterproof Plastic Electrical DB Box 5 Way MCB Box IEC60439-3 4
