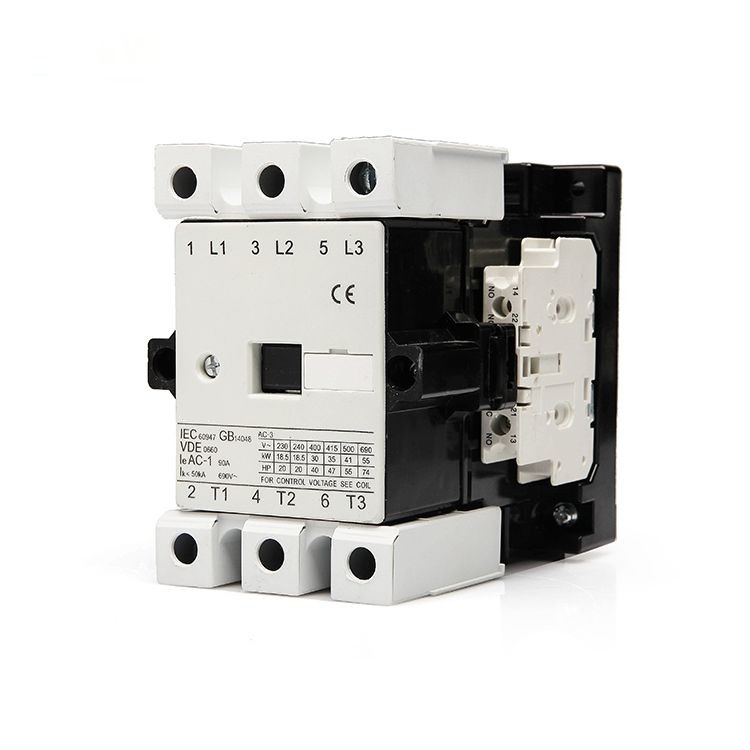

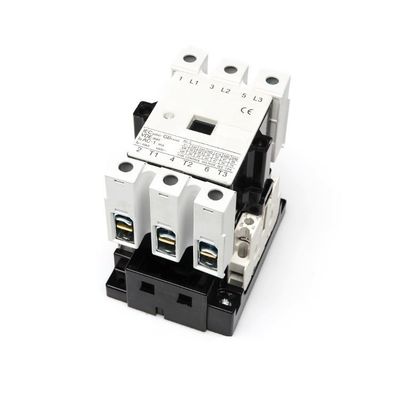

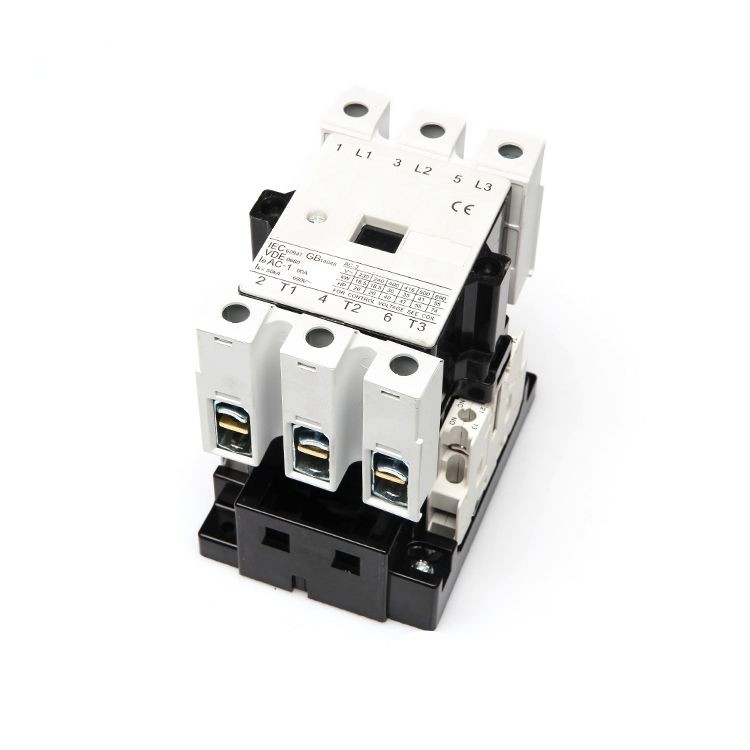

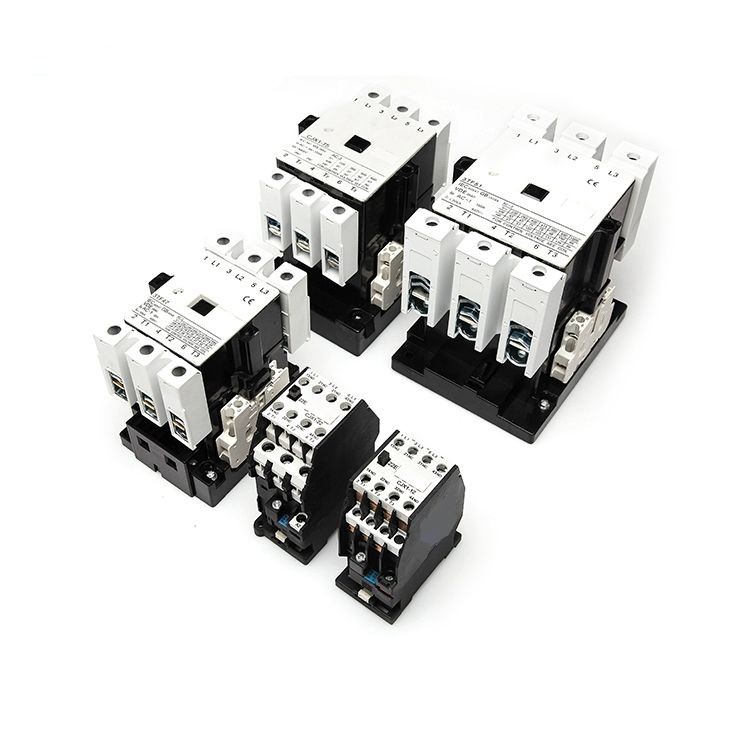

100A 3 Pole AC Contactor 400V

100PCS
MOQ
Negotiable
Price
100A 3 Pole AC Contactor 400V
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Heating Current: 80A, 90A, 100A, 160A
Auxiliary Contact: 2NO+2NC
Type: AC Contactor
Rated Frequency: 50/60 Hz
Protection Degree: IP20
Number Of Poles: 3 Poles
Installation: Din Rail Or Screws
OEM: Available
High Light:

100A 3 Pole AC Contactor

,

3 Pole AC Contactor 400V

,

3 Pole 2NO 2NC Contactor

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE,TUV,CB
Model Number: SFC46~47, SFC48~49, SFC50~51
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

100 Amp Ac Electrical Contactor 400 Vac Double Break Electrical Contactor





Main parameters and Technical Performance:



Type SFC46 SFC47 SFC48 SFC49 SFC50 SFC51
Rated heating current (A) 80 90 100 100 160 160
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC
Short-time withstand current(A) 10S 360 504 600 680 880 1120

Rated working current(A)
380V AC-3 45 63 75 85 110 140
AC-4 24 28 34 42 54 68
Controllable motor power (KW)
50Hz
AC-3 220V 15 18.5 22 26 37 43
380V 22 30 37 45 55 75
500V 30 41 50 59 76 98
660V 39 55 67 67 100 100
AC-4 380V 12 14 17 21 27 35
660V 20.8 24.3 29.5 36 46.9 60
Operation frequency (times/h) AC-3 600 600 600 600 600 600
AC-4 300 300 300 300 300 300
Electrical life (10000/times) AC-3 60 60 60 60 60 60
AC-4 15 15 10 10 10 10
Mechanical life (10000/times) 800 800 600 600 600 600
Attracting Coil working voltage tolerance (AC) (85%~110%)Us +40℃
Attracting Coil power consumption Keeping (VA) 17 17 32 32 39 39
Pick-up(VA) 183 183 330 330 550 550
Auxiliary contact conventional thermal current(A) 10 10 10 10 10 10
Auxiliary contact rated insulation voltage (V) 690 690 690 690 690 690
Auxiliary contact rated working current (A) AC-15 380V 4 4 4 4 4 4
220V 6 6 6 6 6 6
DC-13 110V 1.14 1.14 1.14 1.14 1.14 1.14
220V 0.48 0.48 0.48 0.48 0.48 0.48







Working and Installation Condition:

♦ Ambient air temperature: -5℃--+40℃ and average not more than +35℃ within 24 hours;

♦ Altitude: ≤ 2000m;

♦ Air condition: when the highest temperature is +40℃, the air relative humidity is not up to 50%, but the higher humidity is allowed at lower temperature. Like, 90% humidity at 20℃. The condensate dew should be considered when at lower temperature;

♦ Pollution degree: Class 3

♦ Installation category:III

♦ Protection degree: IP20

♦ Installation condition: the gradient angle between installation side and vertical side should not be more than ±5℃

♦ Impact and vibrattion: the contactor must be installed and operate under the circumstances of no obvious shaking, impact and vibration.



Structure characteristic:

♦ Safety design against electric shock, more safe and reliable

♦ The feature of small volume, light weight, arcing chamber is enclosed, small electric arcing distance

♦ The arc-extinguishing construction is novel, abrasion of the contacts is small, with a long electric life

♦ The operation of the magnet that many advantages such as good reliability, resistant impact, tiredness and so on significant advantages

♦ The contact has two pair of normal open and close auxiliary contact, in addition, it can be mounted more auxiliary contacts

♦ Except tighten with screws, contactor can be tightened with standard installing rail of 35mm long







Appearance and Installation Dimension:



100A 3 Pole AC Contactor 400V 0





Installation dimension:



Type A max B max C max a b

SFC46

92 120 125 70 100 5.0
SFC47 92 120 125 70 100 5.0
SFC48 105 135 145 80 110 5.5
SFC49 105 135 145 80 110 5.5
SFC50 125 158 155 100 130 6.5
SFC51 125 158 155 100 130 6.5


100A 3 Pole AC Contactor 400V 1

100A 3 Pole AC Contactor 400V 2

100A 3 Pole AC Contactor 400V 3



Package and shipment:



100A 3 Pole AC Contactor 400V 4

100A 3 Pole AC Contactor 400V 5



Why Choose Us:

--------------------------------------------------------------------

a. Reply your inquire in 24 working hour.
b. Technical and professional guidance.
c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on our goods and service.
