SFC 100 Amp Contactor 3 Pole 500V 2NO 2NC Auxiliary Contact

100PCS
MOQ
Negotiable
Price
SFC 100 Amp Contactor 3 Pole 500V 2NO 2NC Auxiliary Contact
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Heating Current: 80A, 90A, 100A, 160A
Rated Insulation Voltage: 220V,380V,500V,660V
Auxiliary Contact: 2NO+2NC
Type: AC Contactor
Rated Frequency: 50/60 Hz
Protection Degree: IP20
Electricity Type: AC
Number Of Poles: 3 Poles
High Light:

SFC 100 amp contactor

,

500V 100 amp contactor 3 pole

,

SFC 2NO 2NC contactor

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE,TUV,CB
Model Number: SFC46~47, SFC48~49, SFC50~51
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

80A 90amp 100 amp 160A AC Contactor 3 Pole Electric Contactor



Application:

SFC series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ , rated insulation voltage of 690V, and the rated current from 9A to 475A at the rated working voltage 380V in the AC-3 application type, and is used for long distance connection and breaking of the circuit. Contactor is suitable in frequent start and control of AC motor.

This series contactor complies with GB 14048, IEC60947-4-1





Main parameters and Technical Performance:

Type SFC46 SFC47 SFC48 SFC49 SFC50 SFC51
Rated heating current (A) 80 90 100 100 160 160
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC
Short-time withstand current(A) 10S 360 504 600 680 880 1120

Rated working current(A)
380V AC-3 45 63 75 85 110 140
AC-4 24 28 34 42 54 68
Controllable motor power (KW)
50Hz
AC-3 220V 15 18.5 22 26 37 43
380V 22 30 37 45 55 75
500V 30 41 50 59 76 98
660V 39 55 67 67 100 100
AC-4 380V 12 14 17 21 27 35
660V 20.8 24.3 29.5 36 46.9 60
Operation frequency (times/h) AC-3 600 600 600 600 600 600
AC-4 300 300 300 300 300 300
Electrical life (10000/times) AC-3 60 60 60 60 60 60
AC-4 15 15 10 10 10 10
Mechanical life (10000/times) 800 800 600 600 600 600
Attracting Coil working voltage tolerance (AC) (85%~110%)Us +40℃
Attracting Coil power consumption Keeping (VA) 17 17 32 32 39 39
Pick-up(VA) 183 183 330 330 550 550
Auxiliary contact conventional thermal current(A) 10 10 10 10 10 10
Auxiliary contact rated insulation voltage (V) 690 690 690 690 690 690
Auxiliary contact rated working current (A) AC-15 380V 4 4 4 4 4 4
220V 6 6 6 6 6 6
DC-13 110V 1.14 1.14 1.14 1.14 1.14 1.14
220V 0.48 0.48 0.48 0.48 0.48 0.48






Working and Installation Condition:

♦ Ambient air temperature: -5℃--+40℃ and average not more than +35℃ within 24 hours;

♦ Altitude: ≤ 2000m;

♦ Air condition: when the highest temperature is +40℃, the air relative humidity is not up to 50%, but the higher humidity is allowed at lower temperature. Like, 90% humidity at 20℃. The condensate dew should be considered when at lower temperature;

♦ Pollution degree: Class 3

♦ Installation category:III

♦ Protection degree: IP20

♦ Installation condition: the gradient angle between installation side and vertical side should not be more than ±5℃

♦ Impact and vibrattion: the contactor must be installed and operate under the circumstances of no obvious shaking, impact and vibration.



Structure characteristic:

♦ Safety design against electric shock, more safe and reliable

♦ The feature of small volume, light weight, arcing chamber is enclosed, small electric arcing distance

♦ The arc-extinguishing construction is novel, abrasion of the contacts is small, with a long electric life

♦ The operation of the magnet that many advantages such as good reliability, resistant impact, tiredness and so on significant advantages

♦ The contact has two pair of normal open and close auxiliary contact, in addition, it can be mounted more auxiliary contacts

♦ Except tighten with screws, contactor can be tightened with standard installing rail of 35mm long







Appearance and Installation Dimension:



SFC 100 Amp Contactor 3 Pole 500V 2NO 2NC Auxiliary Contact 0





Installation dimension:



Type A max B max C max a b

SFC46

92 120 125 70 100 5.0
SFC47 92 120 125 70 100 5.0
SFC48 105 135 145 80 110 5.5
SFC49 105 135 145 80 110 5.5
SFC50 125 158 155 100 130 6.5
SFC51 125 158 155 100 130 6.5

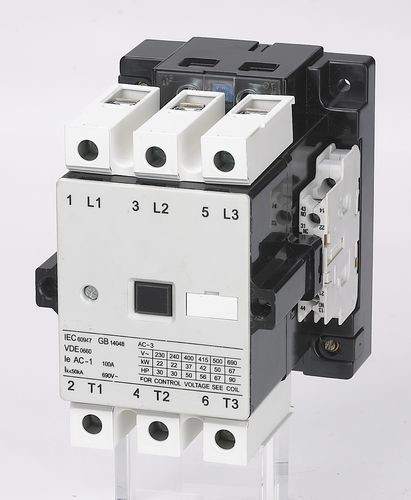

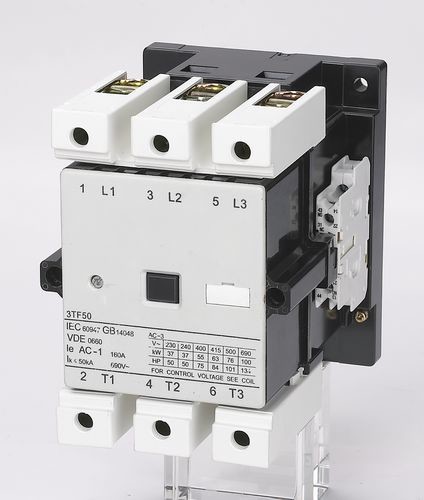

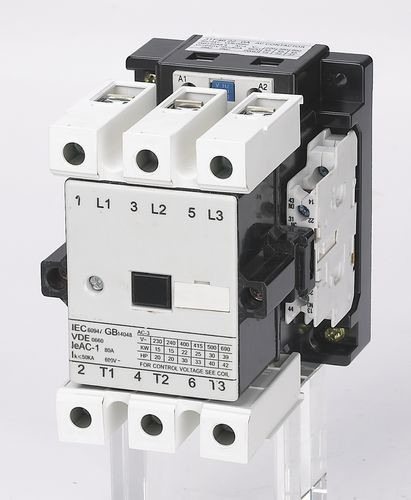

SFC 100 Amp Contactor 3 Pole 500V 2NO 2NC Auxiliary Contact 1SFC 100 Amp Contactor 3 Pole 500V 2NO 2NC Auxiliary Contact 2SFC 100 Amp Contactor 3 Pole 500V 2NO 2NC Auxiliary Contact 3
