CE Certified 3 Pole AC Contactor 20A 32 Amp 40A 220V 690Vac

100PCS
MOQ
Negotiable
Price
CE Certified 3 Pole AC Contactor 20A 32 Amp 40A 220V 690Vac
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Heating Current: 20A,25A,32A,40A
Rated Insulation Voltage: 220V,400V,690V
Poles: 3
Standard: IEC60947-4-1, GB14048.4
Auxiliary Contact: 1NO+1NC
Coil: AC
Pollution Degree: Class 3
Operation Range: -5℃ ~ +40 ℃
High Light:

CE Certified 3 Pole AC Contactor

,

3 Pole AC Contactor 690Vac

,

CE 40 amp 3 pole contactor

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE,TUV,CB
Model Number: SC1-09~18, SC1-25~32
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

CE Certified 3 Poles Ac Contactor In 20A 32amp 40A 220V 690Vac





Application:

SC1 series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ , rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.



This series contactor complies with GB 14048, IEC60947-4-1



Working and Installation Condition:

♦ Ambient air temperature: -5℃--+40℃ and average not more than +35℃ within 24 hours;

♦ Altitude: ≤ 2000m;

♦ Air condition: when the highest temperature is +40℃, the air relative humidity is not up to 50%, but the higher humidity is allowed at lower temperature. Like, 90% humidity at 20℃. The condensate dew should be considered when at lower temperature;

♦ Pollution degree: Class 3

♦ Installation category:III

♦ Protection degree: IP20

♦ Installation condition: the gradient angle between installation side and vertical side should not be more than ±5℃

♦ Impact and vibrattion: the contactor must be installed and operate under the circumstances of no obvious shaking, impact and vibration.



Model and Implication:

CE Certified 3 Pole AC Contactor 20A 32 Amp 40A 220V 690Vac 0



Main parameters and Technical Performance:

Type SC1-09 SC1-12 SC1-18 SC1-25 SC1-32
Rated heating current (A) 20 20 25 32 40
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 1NO + 1NC
Short-time withstand current(A) 10S 72 96 144 200 256
AC-3
Rated working current(A)
220V/230V 9 12 18 25 32
380V/400V 9 12 18 25 32
660V/690V 6.5 8.9 12 18 22
AC-3 capacity of phase 3
squirrel-cage motor (AC-3) KW
220V/230V 2.2 3 4 5.5 7.5
380V/400V 4 5.5 7.5 11 15
660V/690V 5.5 7.5 10 15 18.5
Operation frequency (times/h) Electrical life 1200 600
Mechanical life 3600
AC-3 Electrical life (10000/times)   100 100 100 100 80
Mechanical life (10000/times) 1000 1000 1000 1000 800
Equipped fuse type RT16-20 RT16-20 RT16-32 RT16-40 RT16-50
Rated control supply voltage Us(V) 50/60Hz 12~480
Operation range Pull-in (85%~110%)Us +40℃
Releasing (20%~75%)Us -5℃
Ac coil average power(VA) Start 70 110
Keeping 8 11
Power efficiency class class 3
Thermal loss(W) 2~3 3~4
Actuation time(ms) Close 12~35
Break 5~20
Main circuit wiring flexible wire without cold
pressing terminal (㎟)
1 stick 1~4 1~4 1.5~6 1.5~10 2.5~10
2 sticks 1~4 1~4 1.5~6 1.5~6 2.5~10
flexible wire with cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~6 1~6 1~10
2 sticks 1~2.5 1~2.5 1~4 1~4 1.5~6
Hard wire (㎟) 1 stick 1~4 1~4 1.5~6 1.5~6 1.5~10
2 sticks 1~4 1~4 1.5~6 1.5~6 2.5~10
Fastening screw size   M3.5 M4
Tightening fastening torque (N.m)   0.8 1.2
Control loop wiring flexible wire without cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~4 1~4 1~4 1~4 1~4
flexible wire with cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~2.5 1~2.5 1~2.5 1~2.5 1~2.5
Hard wire (㎟) 1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~4 1~4 1~4 1~4 1~4
Fastening screw size   M3.5
Tightening fastening torque (N.m)   0.8




Structure characteristic:

♦ With dust cover design, contactor have characteristic of better safety, reliability and it also can extended service life

♦  It can be installed with auxiliary contacts block, time relay and current-limited contacts block, and thermal relay, then to be other derivative products;

♦ This series contactor has small volume, light weight, less power loss, long life and safe and reliability etc;

♦ The contactor can be equipped with 1NO auxiliary contact or 1NC auxiliary contact(less than 32A), and 1NO auxiliary contact+1NC auxiliary contact(more than 40A). In addition, it can be equipped with F4 auxiliary contactor block (2blocks or 4blocks);

♦ In addition to use screw to install, contactor can be tightened with the standard installing rail of 35mm (SC1-09~95) and the standard installing rail of 75mm(SC1-40~95)





Installation dimension:

Type A max B max C max a b
SC1-09~18 45 77 86 35 50/60 4.5
SC1-25~32 45 85 92 35 60/70 4.5
SC1-40~65 75 127 119 40 100/110 6.5
SC1-80~95 85 127 130 40 100/110 6.5

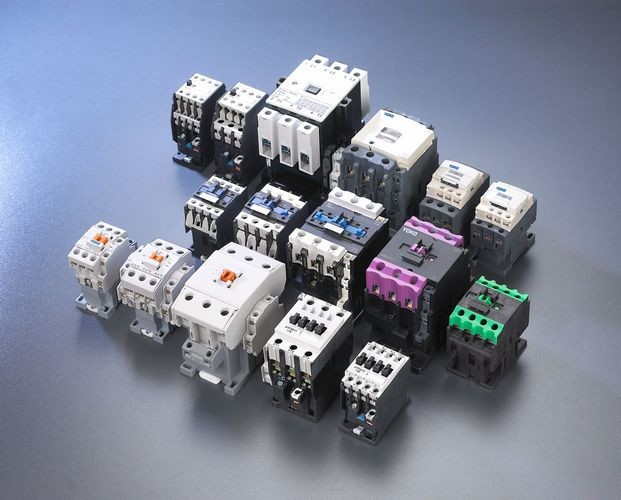

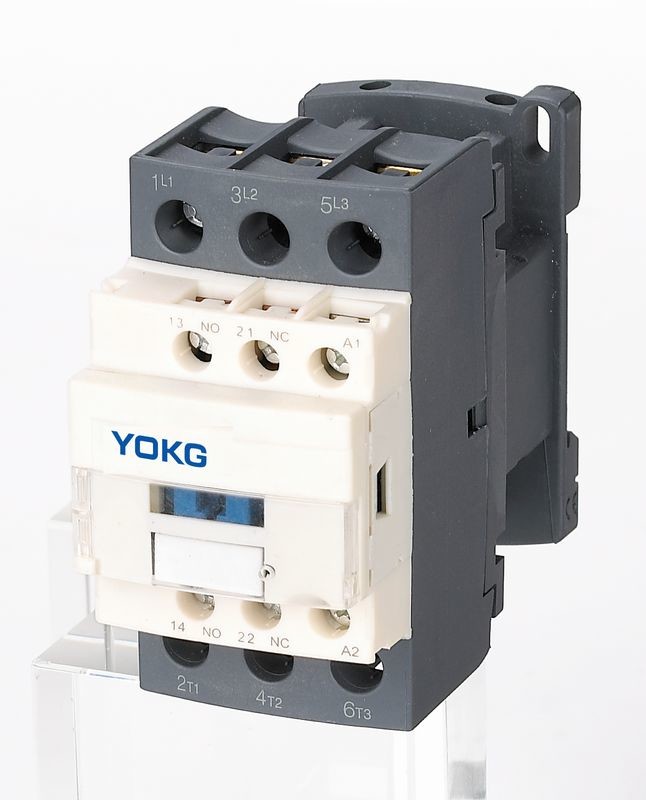

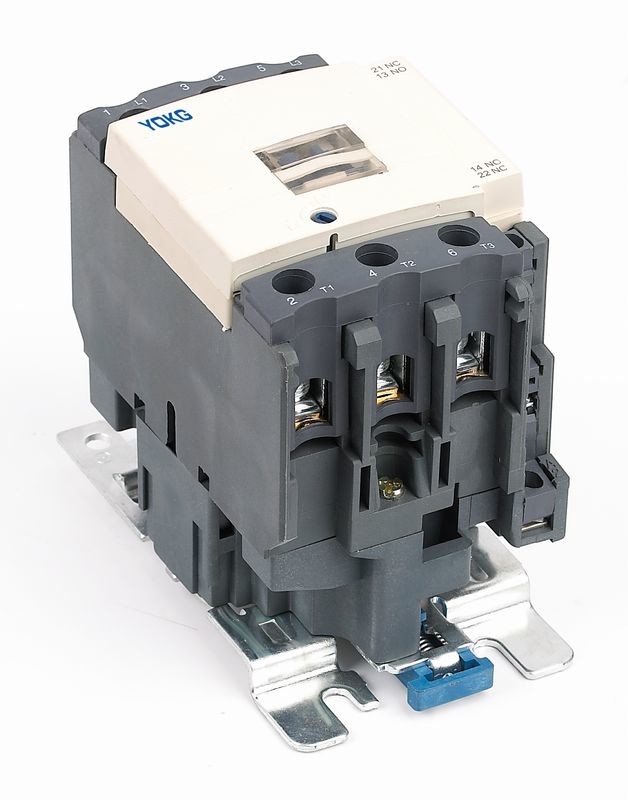

CE Certified 3 Pole AC Contactor 20A 32 Amp 40A 220V 690Vac 1CE Certified 3 Pole AC Contactor 20A 32 Amp 40A 220V 690Vac 2
