Name: PC TXM Residential Electrical DB Box 3 Installation Grade
Brand: YueQing ZEYI Electrical Co., Ltd.
SKU: TXM series
Availability: InStock

PC TXM Residential Electrical DB Box 3 Installation Grade

Basic Information

Place of Origin:	China
Brand Name:	YOKG
Model Number:	TXM series

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month

Get Best Price Contact Now

Detail Information

Material:	Metal, PC	Color:	Pure Ivory
Installation Grade:	3	Way:	2,4,6,8,12,15,18,24,36 Ways
Type:	Distribution Box	Application:	Residential
Highlight:	TXM Electrical DB Box , PC Electrical DB Box , PC db enclosure box

Product Description

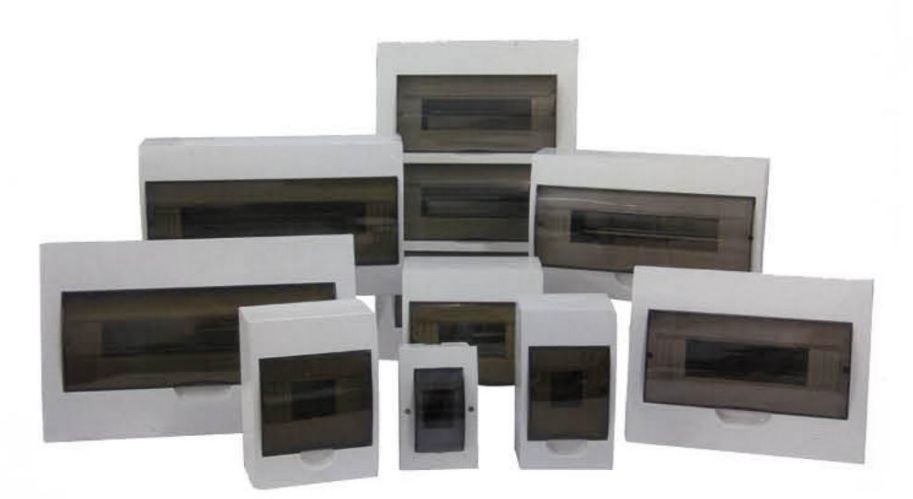

YOKG TXM Series Electrical Db Distribution Box Circuit Enclosure Box

General:

Overall panel design is luxury and attractive, the face covering colors are dark green and brown (provided accoring to the color needs of the different interior residential design except for the standard colors). The design of the face covering gives a noble and elegant feeling. Pure Ivory, high strength, never change color, transparent material is PC. Fixed frame, simple structure, and easy installation.

Concealed mounted:

Model	Dimensions
Model	L (mm)	W (mm)	H (mm)
TXM-2RAP	94	146	85
TXM-4RAP	135	222	85
TXM-6RAP	171	222	85
TXM-8RAP	207	222	85
TXM-10RAP	244	222	85
TXM-12RAP	280	222	85
TXM-15RAP	334	222	85
TXM-18RAP	399	251	92
TXM-24RAP	300	344	98
TXM-36RAP	300	481	98

Opend mounted:

Model	Dimensions
Model	L (mm)	W (mm)	H (mm)
TXM-2RAP	94	146	85
TXM-4RAP	112	200	94
TXM-6RAP	146	200	94
TXM-8RAP	184	200	94
TXM-10RAP	222	200	94
TXM-12RAP	256	200	94
TXM-15RAP	312	200	94
TXM-18RAP	363	220	94
TXM-24RAP	270	325	94
TXM-36RAP	270	458	94

Model description:

PC TXM Residential Electrical DB Box 3 Installation Grade 0

PC TXM Residential Electrical DB Box 3 Installation Grade 1
