Detail Information

Rated Operating Voltage:	220V,24V,48V,110V	Ambient Temperature:	-5℃~+40℃
Rated Operational Power:	2.2KW	Number Of Poles:	4 Poles, 2 Poles
Mechanical Life:	100,0000 Times	Rated Voltage:	220V,110V,24V
Rated Impulse Withstand Voltage:	4KV	Product Name:	Household AC Contactor
Highlight:	24V Household AC Contactor , 2 Poles Household AC Contactor , 2.2KW Ac Power Contactor

Product Description

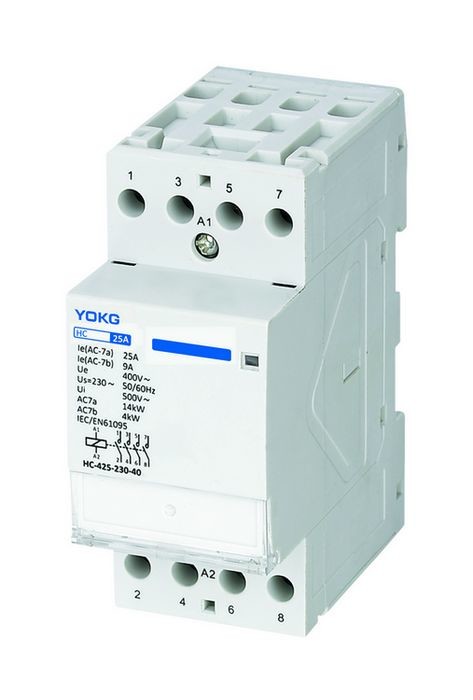

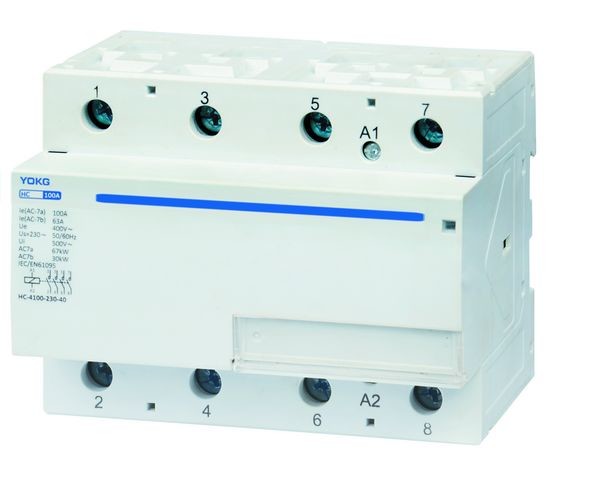

24V Household AC Contactor With Screw Mounting And 4KV Rated Impulse Withstand Voltage

Product Description:

Product Overview - Household AC Contactor

The Household AC Contactor is a versatile and reliable electrical component designed for use in residential and commercial buildings. It is used to control the flow of electricity to large appliances, such as air conditioners, refrigerators, and water heaters. The contactor is mounted on a din rail, making it easy to install and maintain.

Features:

Product Name: Household AC Contactor
Frequency: 50/60Hz
Rated Insulation Voltage: 660V
Rated Voltage: 220V, 110V, 24V
Rated Operating Voltage: 220V, 24V, 48V, 110V
Silver point
2 POLES
2 NO
2 NC
1NO+1NC

Technical Parameters:

Product Name	Household AC Contactor
Rated Voltage	220V,110V,24V
Rated Current	100A,25A,40A,63A
Rated Operational Power	2.2KW
Rated Impulse Withstand Voltage	4KV
Mechanical Life	100,0000 Times
Ambient Temperature	-25℃~+40℃
Frequency	50/60Hz
Rated Operating Voltage	220V,24V,48V,110V
Mounting Type	Screw Mounting, Din rail, 2 POLES, Din rail, 4 POLES

24V Household AC Contactor With Screw Mounting And 4KV Rated Impulse Withstand Voltage 0

24V Household AC Contactor With Screw Mounting And 4KV Rated Impulse Withstand Voltage 1

Packing and Delivery:

FAQ:

Q: What is the brand of this product?
A: This product is from OEM YOKG.
Q: What are the different models available for this product?
A: The available models for this product are 100A, 25A, 40A, and 63A.
Q: Where is this product manufactured?
A: This product is manufactured in Zhejiang, China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 500.
Q: How is this product packaged for shipping?
A: This product is packaged in a standard export carton box.
Q: What is the estimated delivery time for this product?
A: The estimated delivery time for this product is 10 days.
Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are T/T and L/C.

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	OEM YOKG
Certification:	CE,TUV
Model Number:	100A 25A 40A 63A

Minimum Order Quantity:	500
Packaging Details:	STANDARD EXPORT CARTON BOX
Delivery Time:	10 DAYS
Payment Terms:	T/T,L/C
