Miniature CE Home Ac Contactor 2 Pole 100a 24v Ip20 Low Noise

Miniature CE Home Ac Contactor 2 Pole 100a 24v Ip20 Low Noise
Features Gallery Product Description Request A Quote
Material: High Standard Plastic Silver Copper
Type: Household Miniature Contactor
Electricity Type: AC
Main Circuit Rating Voltage: 24VAC,48VAC,110VAC,230VAC
Phase: 2
OEM: Acceptable
High Light:

Miniature CE Home AC Contactor


Home AC Contactor 2 Pole Ip20


Miniature 2 Pole AC Contactor 24V

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE, TUV
Model Number: HC-2100, HC-4100
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

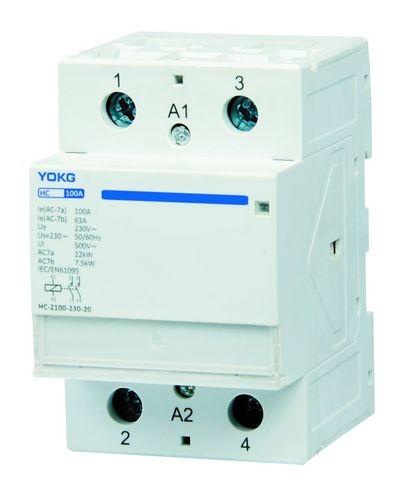

CE Certificated 2P 100a Electric Household Ac Home Contactor




HC series Household AC Mini Contactor are mainly applicable to circuits with AC 50Hz (or 60Hz) and rated working voltage up to 400V and rated working current up to 63A, to control household appliances and low inductive load for similar purposes; they can also be used to control household motor load, at this time, the control power should be reduced accordingly. The products are used in homes, hotels, apartments and other places to achieve automatic functions, and applied to large-scale production of household electrical appliances.

Conform to the standards: EN 61095, IEC 61095.


Brand name:  YOKG

Electricity type:   Mini AC contactor

Poles:    2 poles, 4 poles

Main circuit rating voltage:  24V, 48V, 110V, 230V

Main circuit rating current:  25A, 40A, 63A, 100A

Standard:  IEC/EN61095

OEM:  Available

Utilization category:  AC-1, AC-7a, AC-7b

Mounting:  On Din rail TH35-7.5 mounting rail installation

Rated frequency:  50Hz, 60Hz

Material:  High standard plastic silver cooper

Mechnical life:  Electrical life 100000,Mechanical life 1000000

Protection degree:  IP20

Features:   Novel structure, small volume, modular size, beautiful design, good appearance, low noise, safety performance

Application:  Hotel, hospital, apartment



HC Home Contactor Order Code:

100A 2P 4P
24V HC-2100-24-20 HC-4100-24-30
HC-2100-24-11 HC-4100-24-40
HC-2100-24-02 HC-4100-24-31
48V HC-2100-48-20 HC-4100-48-04
HC-2100-48-11 HC-4100-48-30
HC-2100-48-02 HC-4100-48-40
110V HC-2100-110-10 HC-4100-110-30
HC-2100-110-20 HC-4100-110-40
HC-2100-110-11 HC-4100-110-31
HC-2100-110-02 HC-4100-110-22
230V HC-2100-230-20 HC-4100-230-30
HC-2100-230-11 HC-4100-230-40
HC-2100-230-02 HC-4100-230-31



Company introduction:

     We, Yueqing Zeyi electrical Co., Ltd. is intended on creating a professional contactor manufacturing enterprise. Adhere to this business concept, have been focusing on the contactor industry for nearly 20 years, concentrate on the design and manufacture of CJX2 (WC1) series products. Now we can provide more than 100 kinds of AC and DC contactors.

    Especially our HC series modular contactor, can be comparable to the performance of famous brand products.

    Company’s products have all obtained 3C, CE certification, and has passed the German TUV authority CB test.

    Quality is the soul of the enterprise, talent is the foundation. We believe that the high quality products and the best humanized service are the cornerstone of our success.

     Focus on product design and manufacturing, become professional OEM, ODM supplier. Can provide ultra-cost-effective OEM, ODM services for all kinds of brand enterprises. Has established good business relations with lots of excellent domestic low-voltage electrical enterprise groups.

    Through years of efforts, the company's products have been widely used in machine tools, machinery, textile, chemical, petroleum, metallurgy, construction, railway, shipping, communications, electric power and household appliances and other industries, the products are exported to more than 50 countries and regions in the world.

    Carry on the past, hand in hand, we sincerely hope to cooperate with you, create brilliant!



Miniature CE Home Ac Contactor 2 Pole 100a 24v Ip20 Low Noise 0
Packing and Delivery:
Miniature CE Home Ac Contactor 2 Pole 100a 24v Ip20 Low Noise 1

Miniature CE Home Ac Contactor 2 Pole 100a 24v Ip20 Low Noise 2

Miniature CE Home Ac Contactor 2 Pole 100a 24v Ip20 Low Noise 3

Why Choose Us:
a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.

1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
