Product Details:
|
| Poles: | 1P | Current: | 25amp, 40amp, 63amp, 100amp |
|---|---|---|---|
| Mounting: | Din Rail TH35-7.5 Mounting Rail Installation | Product Name: | Single Pole Ac Household Modular Contactor |
| Standard: | IEC/EN61095 | Utilization Category: | AC-1,AC-7a,AC-7b |
| Place Of Origin: | Wenzhou, China | Samples: | Available |
| High Light: | 40 Amp AC single pole contactor,AC 2 Pole 40 Amp 24v Contactor,24 Volt 40 amp single pole contactor |
||

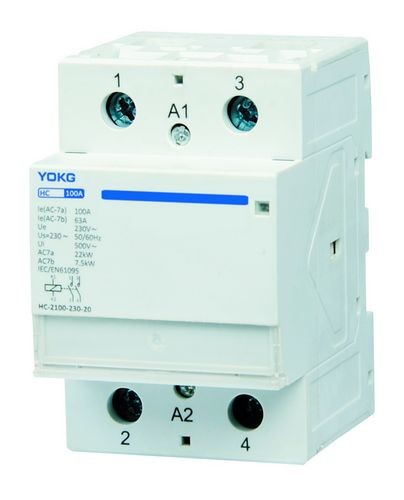

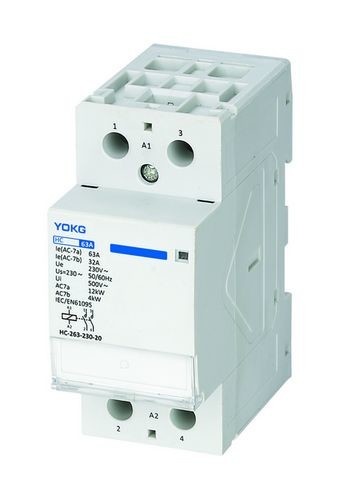

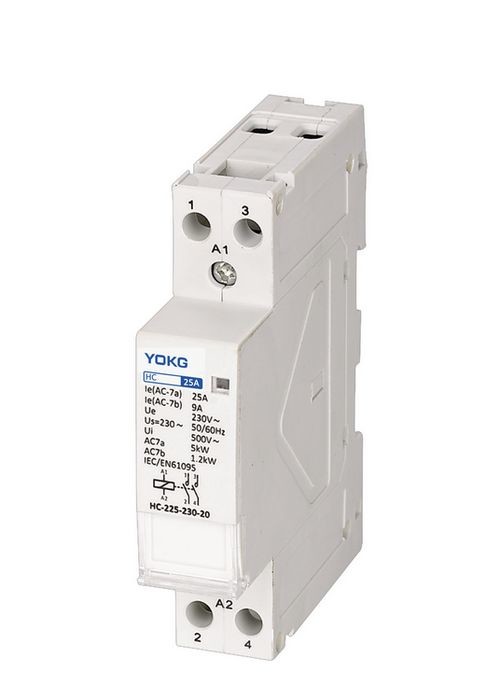

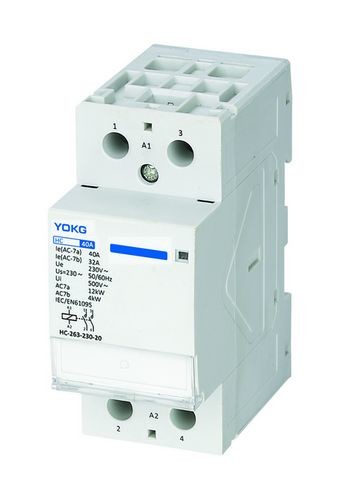

Single Pole 40amp AC Household Contactor 24 Volt Modular Contactor
General:
The modular contactor is applicable to alternative circuit with rated voltage up to 400V, rated currentup to 100A and rated frequency 50/60Hz. The product is used for remote switching and controlling. HC series contactors could satisfy most application cases, such as household appliances, hotels, low inductance loading and household electromotor loading control for similar application.
Our contactors can be combined with auxiliary control, protection and indication functions.
The product is in conformity with IEC/EN 61095
Specifications:
| Brand Name | YOKG |
| Electricity Type | mini AC Contactor |
| Number of Pole | 1 |
| Main Circuit Rating Voltage | 24VAC,48VAC,110VAC, 230VAC |
| Main Circuit Rating Current | 25A,40A, 63A, 100A |
| Standard | IEC/EN61095 |
| OEM | Avaiable |
| Utilization category | AC-1,AC-7a,AC-7b |
| Mounting | On Din rail TH35-7.5 mounting rail installation |
| Rated frequency | 50/60 Hz |
| Material | High Standard Plastic Silver Copper |
| Protection degree | IP20 |
| Ambient air temperature | -5～+40℃ |
| Pollution degree | Class 2 |
| Installation category | II |
| Protection degree | IP20 |
| Features | Novel structure, small volume, modular size, beautiful design, good appearance, low noise, safety performance |
| Application | Hotel, hospital, apartment |
HC Home Contactor Order Code:
| 40A | 1P |
| 24V | HC-140-24-10 |
| HC-140-24-20 | |
| HC-140-24-11 | |
| HC-140-24-02 | |
| 48V | HC-140-48-10 |
| HC-140-48-20 | |
| HC-140-48-11 | |
| HC-140-48-02 | |
| 110V | HC-140-110-10 |
| HC-140-110-20 | |
| HC-140-110-11 | |
| HC-140-110-02 | |
| 230V | HC-140-230-10 |
| HC-140-230-20 | |
| HC-140-230-11 | |
| HC-140-230-02 |
Certificates:
Packing and Delivery:
Why Choose Us:
---------------------------------------------
a. Reply your inquiry in 24 working hours.
b. Technical and professional guidance.
c. We do the quality products according to the IEC standards.
d. Nearly 20 years export experience in the overseas market
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on goods and our service.
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
Standard order could pay by T/T,L/C, Small order could support Western Union.
