Product Details:
|
| Coil: | AC | Application: | Household, Hotels, Apartment |
|---|---|---|---|
| Main Circuit Rating: | 63A | Degree Of Protection: | IP20 |
| Voltage: | 24V, 48V, 110V, 230V | Operating Temperature: | -5°C ~+60°C |
| High Light: | 63 amp Miniature Household AC Contactor,Household AC Contactor 63amp IP20,2 Phase 1no 1nc contactor IP20 |
||

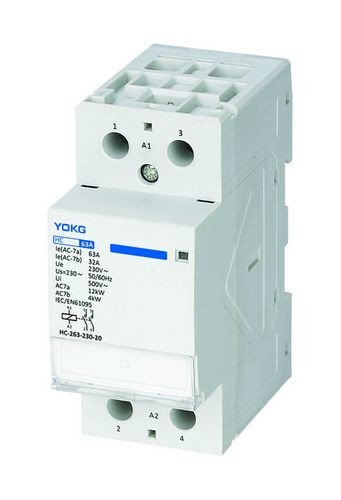

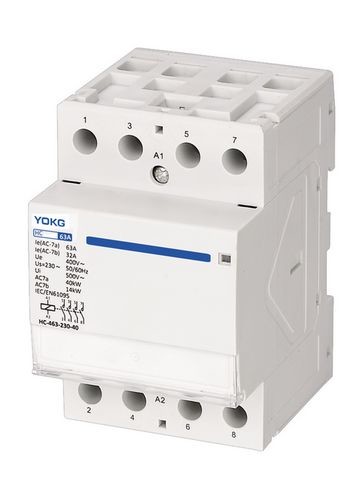

2 Phase 1NO 1NC Miniature Contactor 63amp Electric Contactors
Application:
HC Series household electric contactors are suitable for controlling household appliances & similar usages low micro-load , also controlling household motors loading, whose controlling power shall be reduced, The products are used for family, hotel, apratment etc. places, And it can be realized automatic function.
Model and Definition:
Conditions and Installation Condition:
♦ The ambient air temperature: -5～+40℃, Average not more than +35℃ within 24 hours.
♦ Altitude(m): Not exceed 2000 meters
♦ Atmospheric conditions: When the highest temperature is +40℃, the air relative humidity should not be higher than 50%. The higher relative humidity should be allowed at the lower temperature, for instance, 90% humidity when 20 ℃. Special measures should be taken when condensate dew happens occasionally due to temperature changes.
♦ Pollution degree: Class 2
♦ Installation category: II
♦ Mounting: On Din rail TH35-7.5 mounting rail installation
♦ Protection degree: IP20
General:
Electric rating: up to 25A,40A,63A,100A Utilization category: AC-1, AC-7a, AC-7b
Standard: IEC/EN 61095 Electrical life 100,000, Mechanical life 1,000,000
HC-225/HC-240/HC-263: Ue=230V～ HC-425/HC-440/HC-463: Ue=400V～
Operation Range:
Contactor shall pull in reliably at any value between 85% Us and 110%Us. 110% Us is the maximum value and 85%Us is the manimum value.
Contactor shall release and break completely between 75% Us and 20% Us. 20% Us is the maximum value and 75%Us is the minimum value.
Appointed operation performance:
| Making and breaking condition | ||||||
| Utilization category | Ic/Ie | Ur/Ue | cos Φ | making time (a) s |
interval time s |
operation cycle times |
| AC-7a | 1.0 | 1.05 | 0.80 | 0.05 | 10 | 30 000 |
| AC-7b | (c) | (b) | 0.45 | 0.05 | 10 | 30 000 |
| (a) If contact has closed completely before breaking again, the making time is allowed less than 0.05s. (b) For making opertion Ur/Ue=1.0, for breaking operation Ur/Ue=0.17 (c) For making operation Ic/Ie=6.0 , for breaking operation Ic/Ie=1.0 |
||||||
Making and breaking Capacity:
| Making and breaking condition | ||||||
| Utilization category | Ic/Ie | Ur/Ue | cos Φ | making time (a) s |
interval time s |
operation cycle times |
| AC-7a | 1.5 | 1.05 | 0.80 | 0.05 | 10 | 50 |
| AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 | 50 |
Mechanical life:
Mechanical life: 1 million times, operation cycles per hour are 300 times.
Electrical life:
Electrical life: 100,000 times, maximum operation cycles per day are 100 times.
Products:
♦ Contactors are modular control appliances of novel structure, small volume. Its characteristic includes din-rail installation, modular size, beautiful design, and safety. It can apply inversion structure and be combined with mini circuit breaker in lighting box.
♦ It applies good insulation material, which improve the safety index.
♦ It has good appearance and low noise and is suitable for hotel and hospital, etc.
HC Home Contactor Order Code:
| 63A | 2P | 4P |
| 24V | HC-263-24-10 | HC-463-24-30 |
| HC-263-24-20 | HC-463-24-40 | |
| HC-263-24-11 | HC-463-24-31 | |
| HC-263-24-02 | HC-463-24-22 | |
| HC-463-24-04 | ||
| 48V | HC-263-48-10 | HC-463-48-30 |
| HC-263-48-20 | HC-463-48-40 | |
| HC-263-48-11 | HC-463-48-31 | |
| HC-263-48-02 | HC-463-48-22 | |
| HC-463-48-04 | ||
| 110V | HC-263-110-10 | HC-463-110-30 |
| HC-263-110-20 | HC-463-110-40 | |
| HC-263-110-11 | HC-463-110-31 | |
| HC-263-110-02 | HC-463-110-22 | |
| HC-463-110-04 | ||
| 230V | HC-263-230-10 | HC-463-230-30 |
| HC-263-230-20 | HC-463-230-40 | |
| HC-263-230-11 | HC-463-230-31 | |
| HC-263-230-02 | HC-463-230-22 | |
| HC-463-230-04 |
