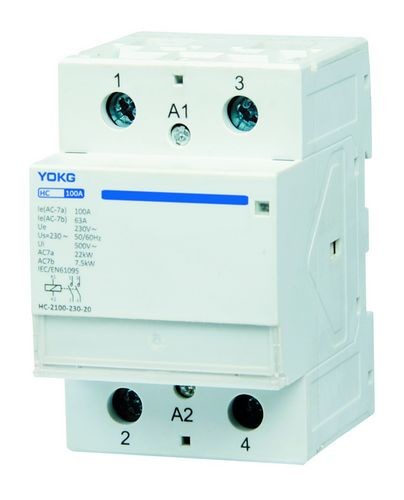

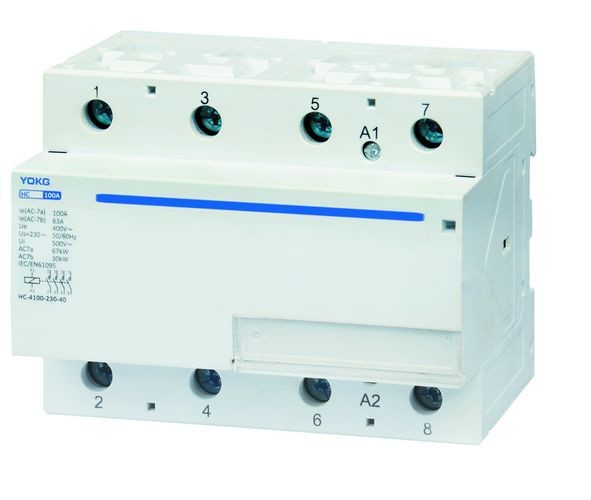

The Household AC Contactor is a highly efficient and reliable contactor designed for use in household air conditioning systems. It is designed to provide smooth and reliable operation, ensuring maximum performance and safety.
| Product Name | Household AC Contactor |
|---|---|
| Rated Insulation Voltage | 660V |
| Rated Impulse Withstand Voltage | 4KV |
| Rated Operating Voltage | 220V, 24V, 48V, 110V |
| Rated Current | 100A, 25A, 40A, 63A |
| Ambient Temperature | -5℃~+40℃ |
| Number of Poles | 4 Poles, 2 Poles |
| Rated Operational Power | 2.2KW |
| Mechanical Life | 100,0000 Times |
| Rated Voltage | 220V, 110V, 24V |
| Key Features | Electrical Specifications |
|---|---|
| Silver Point | - |
| Operating Voltage | AC 220V, 110V, 24V |
| Number of Poles | 4P, 2P |
| Rated Current | 100A, 25A, 40A, 63A |
| Rated Operational Power | 2.2KW |
| Mechanical Life | 100,0000 Times |
| Rated Insulation Voltage | 660V |
| Rated Impulse Withstand Voltage | 4KV |
| Ambient Temperature | -5℃~+40℃ |
The contactor is available in different options to meet different needs:
| Number of Poles | Contact Configuration | Model Number |
|---|---|---|
| 2 POLES | 2 NO | 25A |
| 2 POLES | 2 NC | 25A |
| 2 POLES | 1NO+1NC | 25A |
| 4 POLES | 4 NO | 100A |
| 4 POLES | 4 NC | 100A |
| 4 POLES | 3NO+1NC | 100A |
Don't hesitate to contact us for more information about our Household AC Contactor. We are committed to providing the best products and services to our customers. Trust in our brand and choose our contactor for your electrical control needs.
1. Could I have prices of your products?
Well welcome. Please feel free to send us an inquiry. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs; For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products100% self-inspection and testing before packing
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy .
