Earth Leakage Circuit Breaker 10A 16A 20A 25A B Type 4P RCCB 32A 40A 63A

Basic Information

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	ID 4P RCCB

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month

Get Best Price Contact Now

Detail Information

Rated Frequency:	50/60Hz	Mounting:	Standard Rail
Poles Number:	4	Rated Current:	10A 16A 20A 25A 32A 40A 63A
Rated Operating Current(A):	300mA 500mA	Place Of Origin:	Zhejiang, China
Highlight:	Earth Leakage Circuit Breaker , 16A Leakage Circuit Breaker , RCCB 32A Circuit Leakage Breaker

Product Description

10A 16A 20A 25A B type 4P RCCB 32A 40A 63A Earth Leakage Circuit Breaker

Application:

The RCCBs are mainly used in varieties of factories; enterprises and building construction, 1 phase 230V

and 3 phase 400V 50/60Hz, rated Current(A): 16, 20, 25, 40, 50, 63. They are not suitable for use in a DC

pulse system. They can cut off the fault circuit immediately on the occasion of a shock hazard or earth

leakage of the trunk, thus, it is suitable to avoid the shock hazard and fire caused by earth leakage. They

conform with the standard of IEC61008.

Specifications:

Pole No.	2 Pole	4 Pole
Standard Conformity	IEC 61008	IEC 61008
Rated Current (In) A	16, 25,32,40,50,63	16,25,32,40,50,63
Rated Residual Operating Current IΔn (mA)	30, 100, 300, 500	30, 100, 300, 500
Rated Voltage (Un) Vac	240	415
Rated Frequency Hz	50/60	50/60
Electrical Endurance/Mechanical Operations	10000	10000

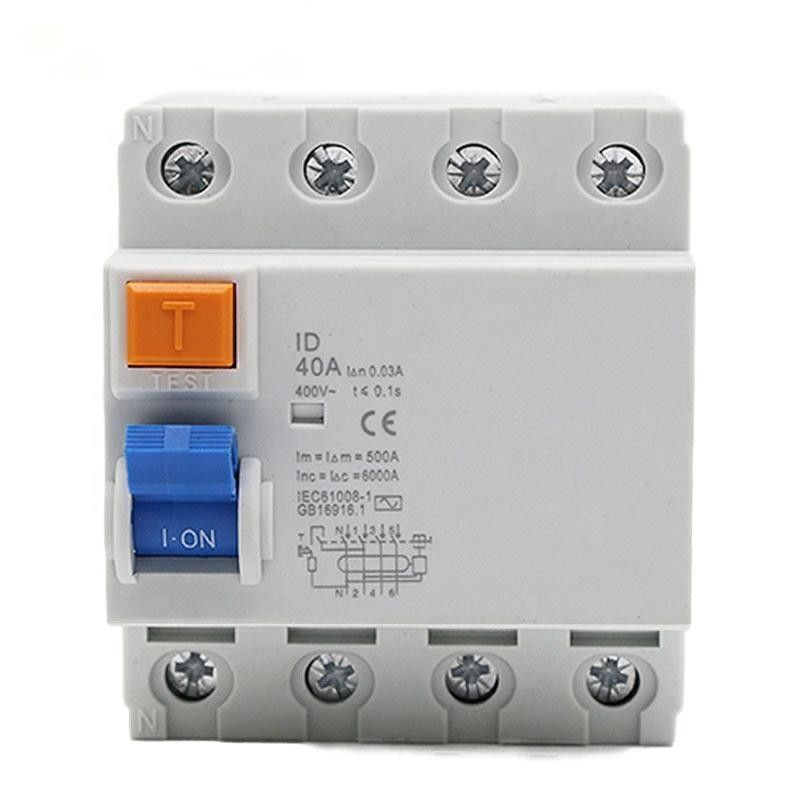

Earth Leakage Circuit Breaker 10A 16A 20A 25A B Type 4P RCCB 32A 40A 63A 0

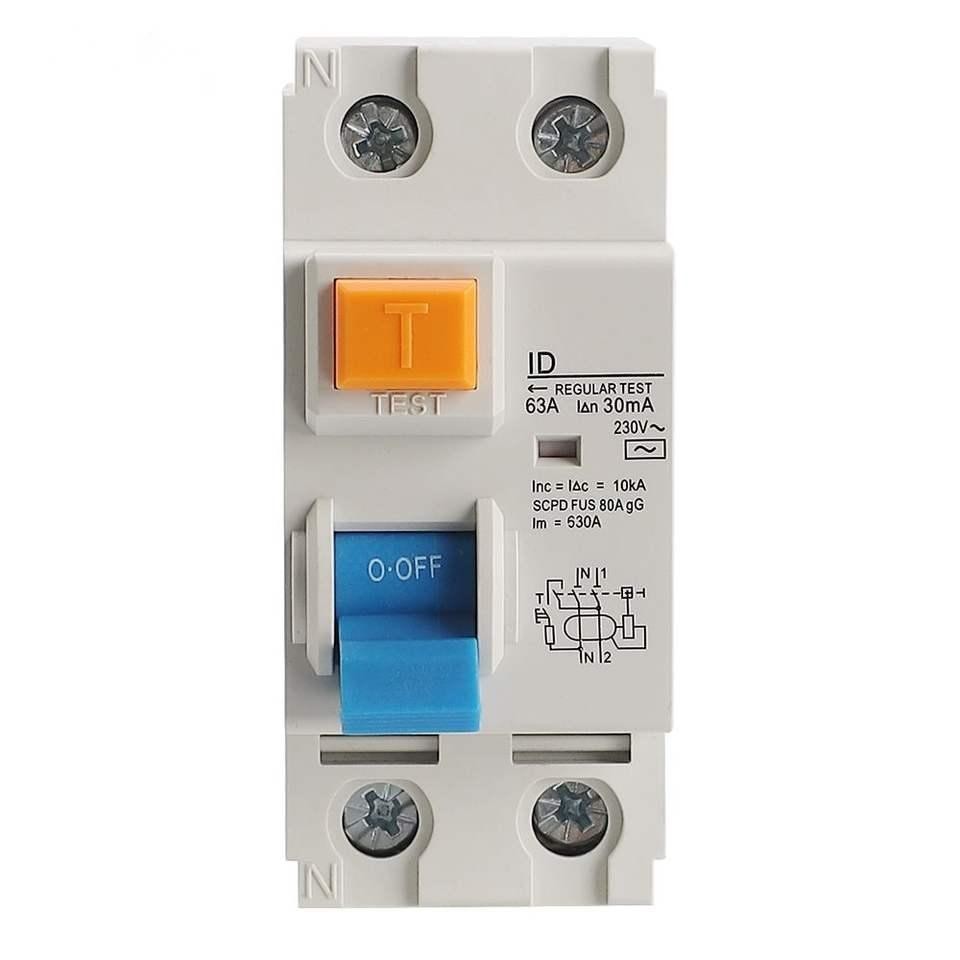

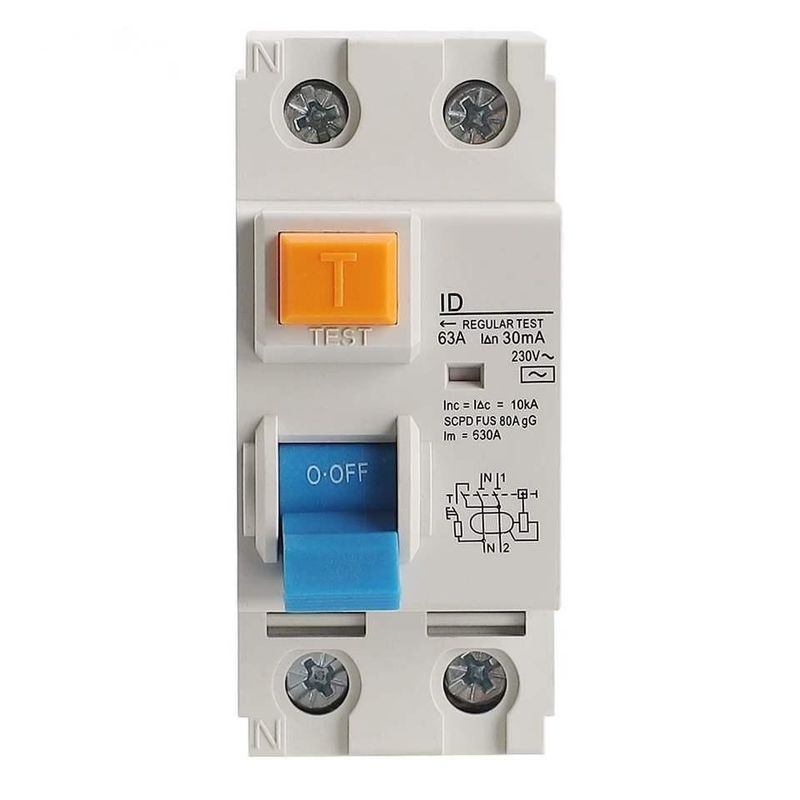

Earth Leakage Circuit Breaker 10A 16A 20A 25A B Type 4P RCCB 32A 40A 63A 1
