Product Details:
|
| Product Name: | Leakage Protector, RCBO | Breaking Capacity: | 10kA |
|---|---|---|---|
| Ampere: | 16-100A | Rated Voltage: | 230V, 400V AC |
| Rated Residual Current: | 10mA, 30mA, 100mA, 300mA | Protection Type: | Electronic |
| High Light: | RCBO Leakage Circuit Breaker,Leakage Circuit Breaker PR8NE,300mA RCBO 6kA |
||

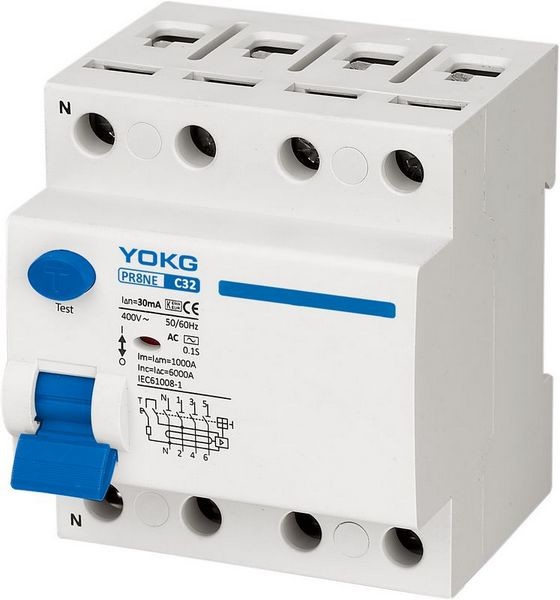

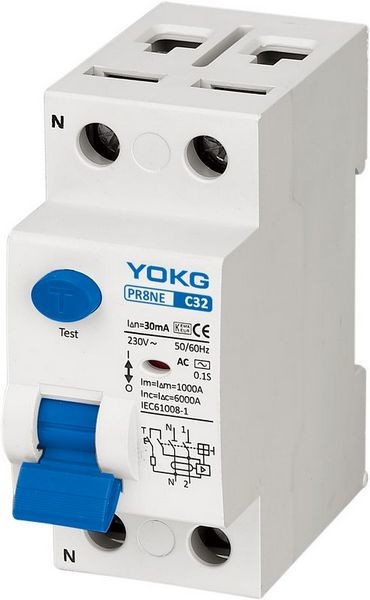

RCBO 6kA Electronic Leakage Circuit Breaker PR8NE 300mA
Function:
♦ Control electric circuits
♦ Protect people against indirect contacts and additional protection against direct contacts
♦ Protect installations against fire hazard due to insulation faults
♦ Residual current circuit breakers are used in housing, tertiary sector and industry
♦ Support 35mm Din-rail installation
Selection:
♦ Detectable wave form
♦ AC type
RCCB which tripping is ensured for residual sinusoidal alternating currents, whether suddenly applied or slowly rising, Symbol
♦ A type
RCCB for which tripping ensured for residual sinusoidal alternating currents and residual pulsating direct currents, whether suddenly applied or slowing rising, Symbol
Tripping sensitivity:
♦ 30 mA--additional protection against direct contact
♦ 100mA--co-ordinated with the earth system according to the formula In＜50/R, to provide protection against indirect contacts
♦ 300mA, protection against indirect contacts, as well we fire hazard
Tripping time:
♦ Instantaneous
It ensures instantaneous tripping (without time-delay)
♦ Short time delay
It ensures any tripping at least 10ms
♦ Selective
It ensures total discrimination with a nonselective RCD placed downstream
Connection Diagram:
The diagram of distribution line:
Specifications:
| Poles | 2P,4P |
| Electrical Specification | |
| Rated current (A) In | 16-100A |
| Rated working voltage (V) Ue | 2P:230, 4P:400 |
| Rated insulated voltage (V) Ui | 500 |
| Impulse withstand voltage (kV) Uimp | 6 |
| Rated short circuit breaking capacity (kA) Inc/I△n | 6 |
| Rated residual current (mA) I△n | 10,30,100,300 |
| Rated residual making and breaking capacity (A) I△m | 1000 |
| residual current working type | AC,AC+S, A |
| residual current protection type | Electronic |
| Dielectric test voltage(kV) | 2.5 |
| Service life Mechanical Standard value | 4000 |
| (O-C) Electrical Standard value | 2000 |
| Control And indication | |
| Shunt release (SHT) | NONE |
| Undervoltage release (UVT) | NONE |
| Auxiliary contact(AUX) | NONE |
| Contact position indicator | NONE |
| Fault indication | DEFAULT |
| Connection And Installation | |
| Ambient temperature (with daily average ≤35℃) | -5℃ ～ +40℃ |
| Protection degree All sides | IP40 |
| connection terminal | IP20 |
| Wire(m㎡) | 35 |
| Busbar (m㎡) | 35 |
| Mounting | Cable/Busbar |
| Reference temperature for setting of thermal element | 30 |
| Pollution degree | 2 |
| Storage temperature(℃) | -25℃ ～ +70℃ |
| Connection | Top |
| Dimensions(mm) a(2P/4P) | 36/72 |
| b(2P/4P) | 84/84 |
| c(2P/4P) | 79.5/79.5 |
