Product Name: Leakage Protector, RCBO
Function: Control Electric Circuits
Poles: 2P,4P
Breaking Capacity: 10kA
Application: Housing, Industry
Ampere: 16-100A
High Light:

RCBO Household Circuit Breaker

,

Household Circuit Breaker PR8HE

,

10kA 2 Pole RCBO

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE, KEMA
Model Number: PR8HE
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

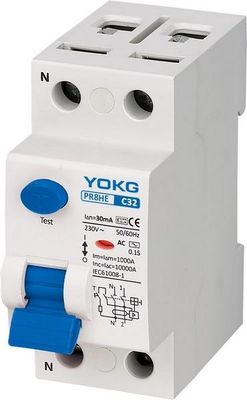

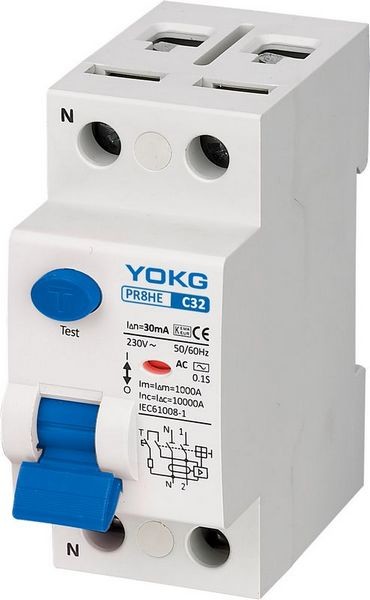

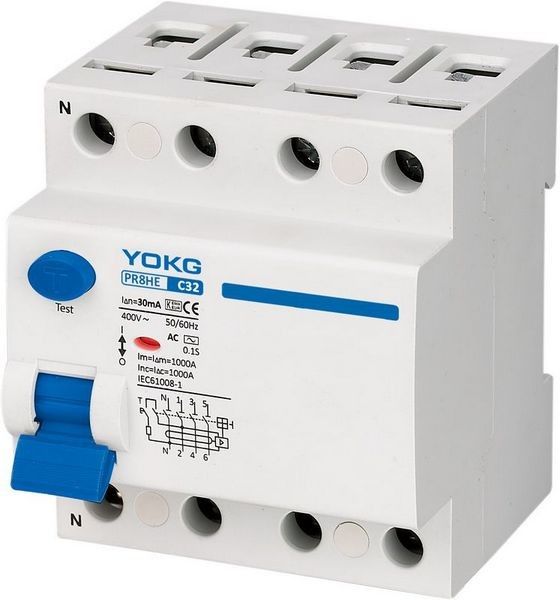

10kA Leakage Protector PR8HE 2P 4 Poles RCBO Household Circuit Breaker



Function:

♦ Control electric circuits

♦ Protect people against indirect contacts and additional protection against direct contacts

♦ Protect installations against fire hazard due to insulation faults

♦ Residual current circuit breakers are used in housing, tertiary sector and industry

♦ Support 35mm Din-rail installation

Specifications:

Poles 2P,4P
Electrical Specification
Rated current (A) In 16-100A
Rated working voltage (V) Ue 2P:230, 4P:400
Rated insulated voltage (V) Ui 500
Impulse withstand voltage (kV) Uimp 6
Rated short circuit breaking capacity (kA) Inc/I△n 10
Rated residual current (mA) I△n 10,30,100,300
Rated residual making and breaking capacity (A) I△m 1000
residual current working type AC,AC+S, A
residual current protection type Electronic
Dielectric test voltage(kV) 2.5
Service life Mechanical Standard value 4000
(O-C) Electrical Standard value 2000
Control And indication
Shunt release (SHT) NONE
Undervoltage release (UVT) NONE
Auxiliary contact(AUX) NONE
Contact position indicator NONE
Fault indication DEFAULT
Connection And Installation
Ambient temperature (with daily average ≤35℃) -5℃ ~ +40℃
Protection degree All sides IP40
connection terminal IP20
Wire(m㎡) 35
Busbar (m㎡) 35
Mounting Cable/Busbar
Reference temperature for setting of thermal element 30
Pollution degree 2
Storage temperature(℃) -25℃ ~ +70℃
Connection Top
Dimensions(mm) a(2P/4P) 36/72
b(2P/4P) 84/84
c(2P/4P) 79.5/79.5

Selection:

♦ Detectable wave form

♦ AC type

♦ A type

RCCB for which tripping ensured for residual sinusoidal alternating currents and residual pulsating direct currents, whether suddenly applied or slowing rising, Symbol10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 0



10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 1



Tripping sensitivity:

♦ 30 mA--additional protection against direct contact

♦ 100mA--co-ordinated with the earth system according to the formula In<50/R, to provide protection against indirect contacts

♦ 300mA, protection against indirect contacts, as well we fire hazard



Tripping time:

♦ Instantaneous

It ensures instantaneous tripping (without time-delay)

♦ Short time delay 10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 2

It ensures any tripping at least 10ms

♦ Selective 10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 3

It ensures total discrimination with a nonselective RCD placed downstream



Connection Diagram:



10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 4



The diagram of distribution line:

10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 5



10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 6



10kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 710kA 2 Pole RCBO Household Circuit Breaker PR8HE 4 Pole 8
