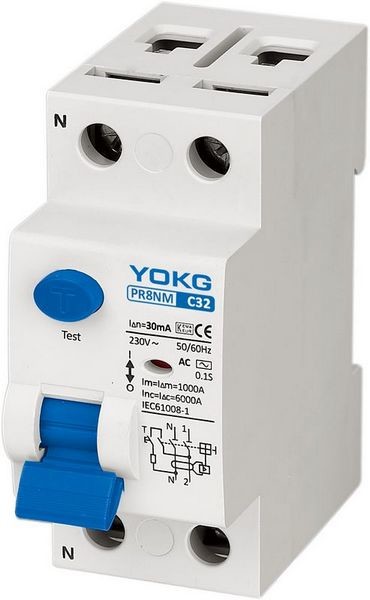

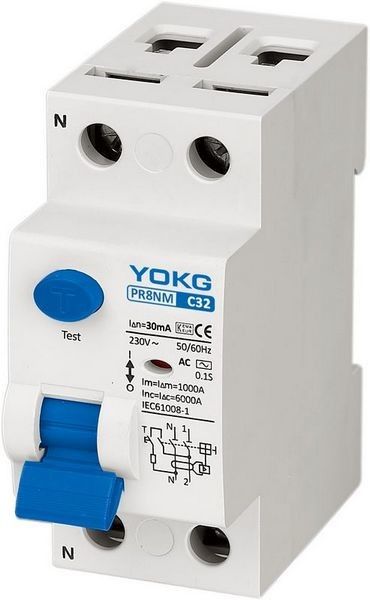

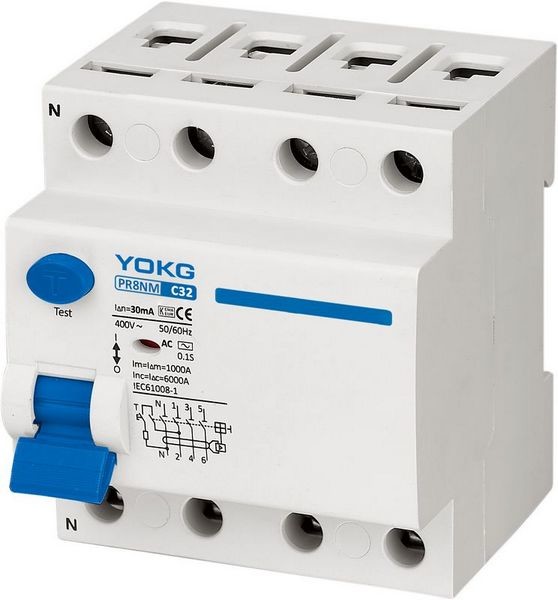

Leakage Protector PR8NM Residual Current Operated Circuit Breaker 2pole
Product Description:
16-100 A rated current 2 pole and 4 pole Leakage Protector are widely used in housing, tertiary sector and industry, 35mm din-rail installation is supproted. It is mainly used for controling electric circuits, it can be used for protecting people from indirect or direct contacts. Keep you away from fire hazard which caused by insulation faults during installation.
Specifications:
| Poles | 2P,4P |
| Electrical Specification | |
| Rated current (A) In | 16-100A |
| Rated working voltage (V) Ue | 2P:230, 4P:400 |
| Rated insulated voltage (V) Ui | 500 |
| Impulse withstand voltage (kV) Uimp | 6 |
| Rated short circuit breaking capacity (kA) Inc/I△n | 6 |
| Rated residual current (mA) I△n | 10,30,100,300 |
| Rated residual making and breaking capacity (A) I△m | 1000 |
| residual current working type | AC,AC+S, A, A+S |
| residual current protection type | Electromagnetic |
| Dielectric test voltage(kV) | 2.5 |
| Service life Mechanical Standard value | 4000 |
| (O-C) Electrical Standard value | 2000 |
| Control And indication | |
| Shunt release (SHT) | NONE |
| Undervoltage release (UVT) | NONE |
| Auxiliary contact(AUX) | NONE |
| Contact position indicator | NONE |
| Fault indication | DEFAULT |
| Connection And Installation | |
| Ambient temperature (with daily average ≤35℃) | -5℃ ～ +40℃ |
| Protection degree All sides | IP40 |
| connection terminal | IP20 |
| Wire(m㎡) | 35 |
| Busbar (m㎡) | 35 |
| Mounting | Cable/Busbar |
| Reference temperature for setting of thermal element | 30 |
| Pollution degree | 2 |
| Storage temperature(℃) | -25℃ ～ +70℃ |
| Connection | Top |
| Dimensions(mm) a(2P/4P) | 36/72 |
| b(2P/4P) | 84/84 |
| c(2P/4P) | 79.5/79.5 |
Selection:
♦ Detectable wave form
♦ AC type
♦ A type
RCCB for which tripping ensured for residual sinusoidal alternating currents and residual pulsating direct currents, whether suddenly applied or slowing rising, Symbol
Tripping sensitivity:
♦ 30 mA--additional protection against direct contact
♦ 100mA--co-ordinated with the earth system according to the formula In＜50/R, to provide protection against indirect contacts
♦ 300mA, protection against indirect contacts, as well we fire hazard
Tripping time:
♦ Instantaneous: It ensures instantaneous tripping (without time-delay)
♦ Short time delay : It ensures any tripping at least 10ms
♦ Selective : It ensures total discrimination with a nonselective RCD placed downstream
Connection Diagram:
The diagram of distribution line:
