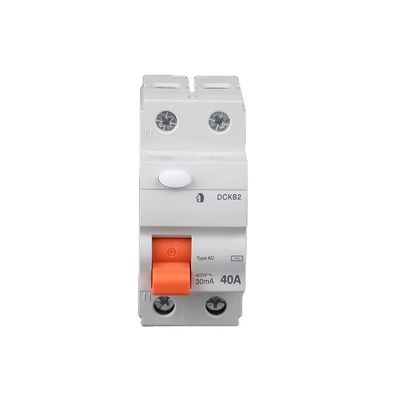

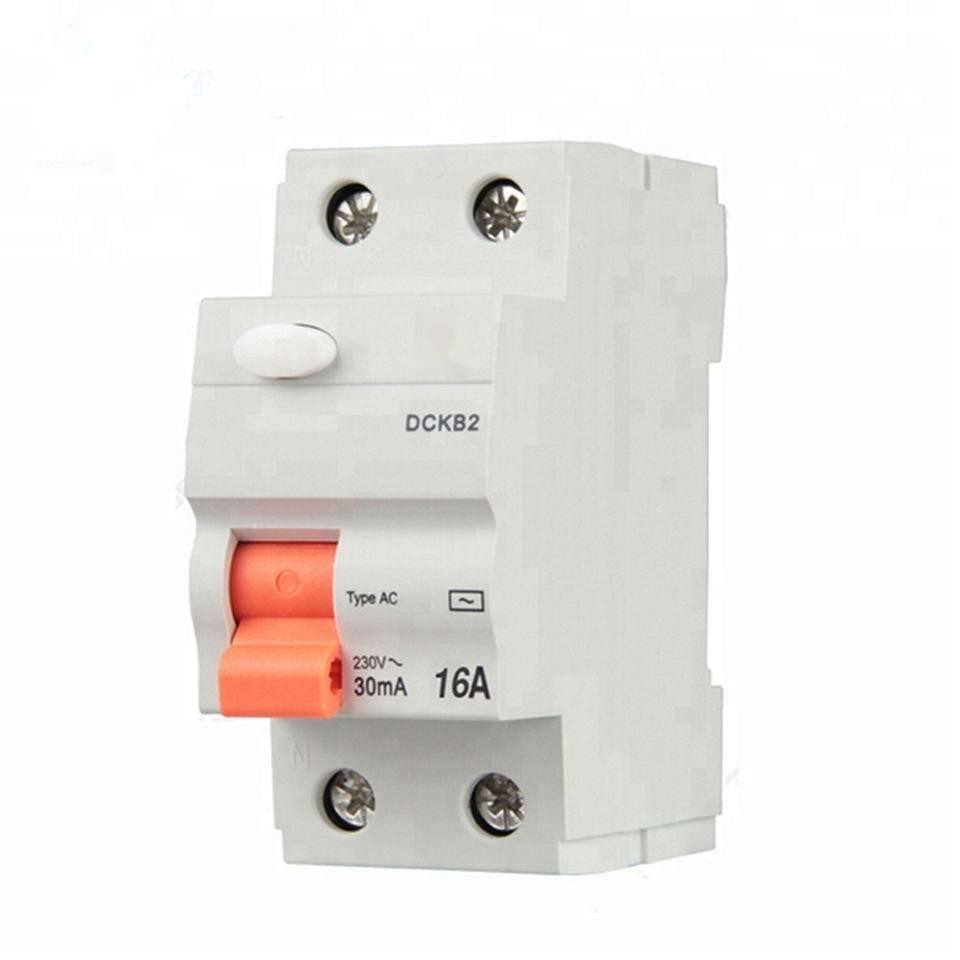

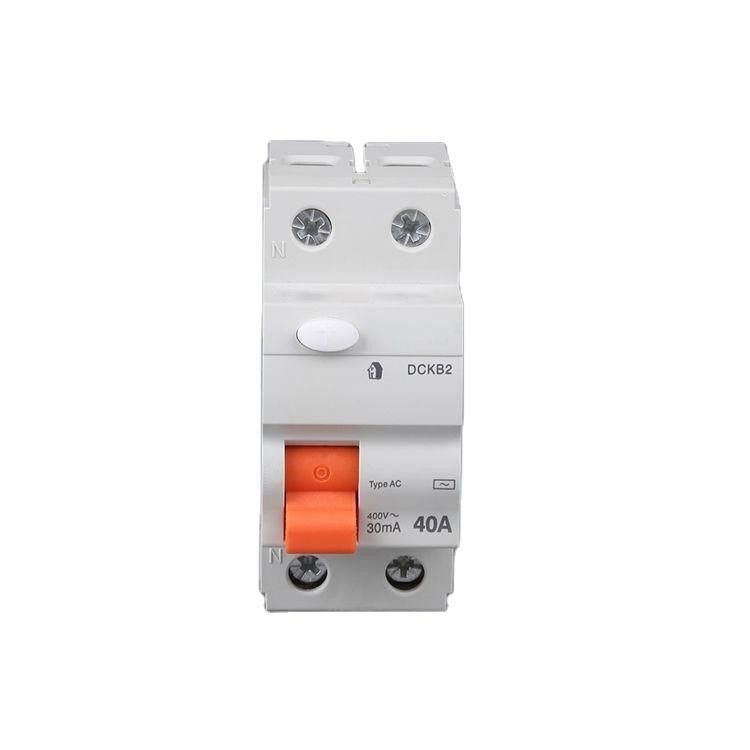

Residual Current Mini Circuit Breaker Type AC DCKB 30ma 16a 2p RCCB 4 Poles

Basic Information

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	DCKB2 DCKB4

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month

Get Best Price Contact Now

Detail Information

Type:	AC	Model:	DCKB2, DCKB4
Rated Current:	40A	Product Name:	Residual Current Circuit Breaker Series
Rated Voltage:	240VAC	Rated Current:	16A,20A,25A,32A,40A,50A,63A
Highlight:	Residual Current RCCB Circuit Breaker , 30ma Current Circuit Breaker , 16a 2p Current Mini Circuit Breaker

Product Description

Type AC DCKB Model 30ma 16a 2p Residual Current Circuit Breaker RCCB 4 Poles

Application:

DCKB2, DCKB4 Residual current circuit breaker without over current protection conforms to the standards of IEC61009.1,BS4293 etc, It is used in the circuit of AC 50/60Hz. single phase 230V, three phases 400V in industrial & mining enterprises, Commercial buildings and housing for protection of personal electric shock hazard, and also can used for unfrequented switch over circuit under normal conditions.

Standard	IEC61009.1
Curve	A&AC type
Rated Voltage(Un)	2Pole 230VAC 4Pole 400VAC
Rated Current(In)	16,25,32,40,50,63A
Rated Residual Operating Current	30,100,300,500mA
Rated Current off-time	≤ 0.1s
Mini Value of Rated Operating and Breaking Capacity(Im)	1kA
Installation	On symmetrical DIN rail

Residual Current Mini Circuit Breaker Type AC DCKB 30ma 16a 2p RCCB 4 Poles 0

FAQ:

1.How can we get quotations?

A:We will send quotations within 24 hours after getting your enquiry. Urgent need you can call us or send us messages via Whatsapp.

2.Can we get sample to check your quality?

A:All items sample are available.

3.Can you do the design for packing?

A:Yes. We have ad team can assist you design inner and outer box if need.

4.What is your terms of delivery?

A:Normally we work on EXW FOB.
