6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity

6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity
6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity

Large Image :  6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity

Product Details:
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: SB6L
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month

6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity

Description
Breaking Capacity: 6KA Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4pole
Rated Current: 1A,3A,6A,10A,15A,20A,25A,32A,40A,63A Terminal Connection Type: Cable, Busbar
Type: Mini Circuit Breaker Overload Protection: Yes
Voltage: 220V/400V Curve: B,C,D
High Light:

6KA 220V Mini Circuit Breaker

,

Mini Circuit Breaker SB6L

,

220V 6ka Circuit Breaker

MCB 6KA 220V Miniature Circuit Breaker SB6L 1P 2 Poles With High Breaking Capacity



Application:

♦ Short-circuit protection

♦ Isolation function

♦ Overload protection

♦ Indication function of contact position

♦ Support 35mm Din-rail installation

♦ Support top incoming and bottom outgoing wiring type, or bottom incoming and top outgoing wiring type

♦ Able to select electrical accessories and achieve distant indication of MCB condition; breaking, closed, and fault tripping

♦ Able to select electrical accessories and realize under-voltage and over-voltage protection of MCB and distant shunt release



Product advantages:

1. The overall is beautiful with sleek and smooth line.

2. Easy to distinguish with different colors of different specifications

3. Comfortable to operate

4. Short-circuit breaking capacity of products can be 6KA



Instantaneous tripping characteristic:

Circuit breaker SB6 are designed for protection of distribution and branch circuits, having different load;

 ♦ Curve B----Device should not work in 0.1 second at current 3 In; at current 5 In should work in less than 0.1S

 ♦ Curve C---- Device should not work in 0.1 second at current 5 In; at current 10 In should work in less than 0.1S

 ♦ Curve D---- Device should not work in 0.1 second at current 10 In; at current 20 In should work in less than 0.1S

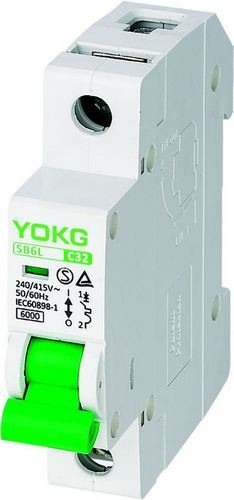

6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 0



 Over-current operating characteristics:

No. Rated current of release (A) Initial state Test current Specified time Result to be obtained Remarks
1 1~63 code state 1.13 In t ≤ 1h Non-trip
2 1~63 upon the previous test 1.45 In t < 1h trip setting current up to specified value steadily in 5s
3 In ≤ 32 code state 2.55 In 1s <t <60s trip
In > 32 code state 2.55 In 1s <t <120s trip
4 1~63 code state 3 In t ≤0.1s Non-trip B type
1~63 code state 5 In t <0.1s trip B type
1~63 code state 5 In t ≤0.1s Non-trip C type
1~63 code state 10 In t <0.1s trip C type
1~63 code state 10 In t ≤0.1s Non-trip D type
1~63 code state 20 In t <0.1s trip D type





The Number of Poles:

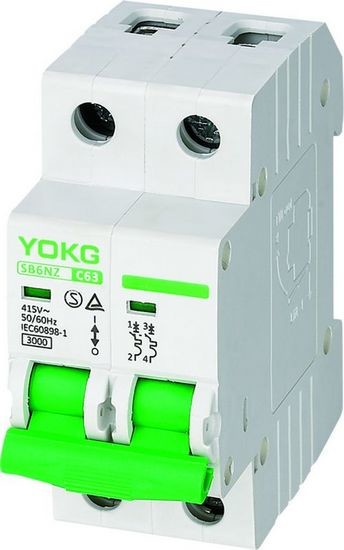

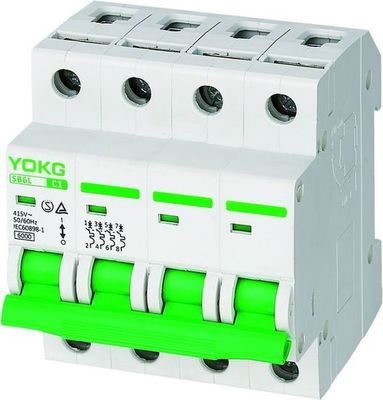

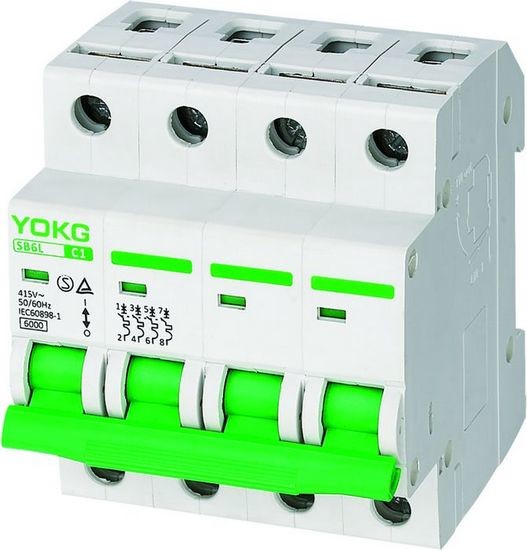

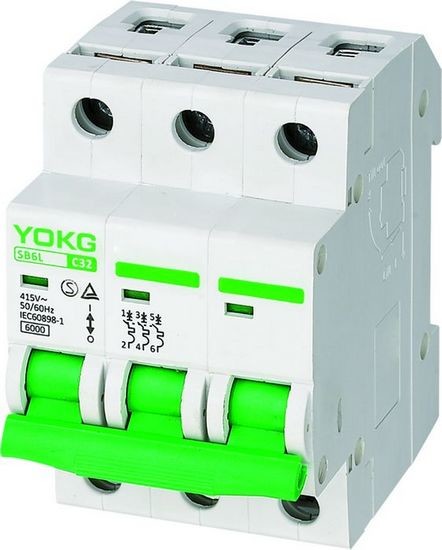

6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 1



Dimensions:

6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 2



Specifications:

Poles 1P,1P+N, 2P, 3P, 3P+N, 4P
Electrical specification
Rated current(A) In 1-63
Rated frequency(Hz) 50/60
Rated working voltage(V) Ue 1P:230/400~, 2/3/4P: 400~
Rated insulated voltage(V) Ui 500
Impulse withstand voltage(KV) Uimp 6
Rated short-circuit breaking capacity(KA) Icn



6

Instantaneous tripping type B,C,D
Maximum working voltage Umax 440
Minimum working voltage Umin 12
Dielectric test voltage (kv) 2
Service life Mechanical standard value 10000
(O-C) Electrical Standard value 4000
Control and indication:
Shunt release (SHT) Optional
Undervoltage release(UVT) Optional
Auxiliary contact(AUX) Optional
Alarm contact(ALT) Optional
Contact position indicator Default
Fault indication None
Connection and installation:
Ambient temperature (with daily average≤35℃) -5℃~+40℃
Protection degree All sides IP40
Connection terminal IP20
Wire(㎟) 16
Busbar(㎟) 16
Mounting Cable/Busbar
Pollution degree 2
Reference temperature for setting of thermal element(℃) 30
Storage temperature(℃) -25℃~+70℃
Tightening torque 3.0
Connection Top and Bottom
Dimensions(mm)                                                         a(1P/2P/3P/4P) 17.5/35/52.5/70
                          6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 3                                                                                                             b(1P/2P/3P/4P) 83/83/83/83
(WxHxL)                                                                      c(1P/2P/3P/4P) 67/67/67/67







6KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 46KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 56KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 66KA 220V Mini Circuit Breaker SB6L 1 Pole 2 Pole High Breaking Capacity 7
