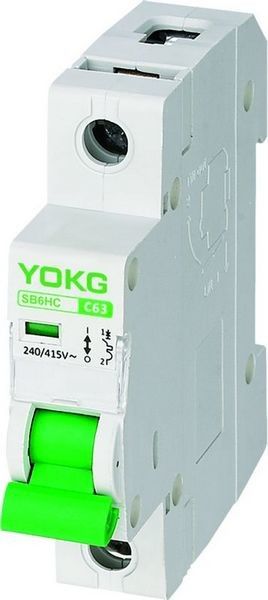

AC Single Phase Miniature Circuit Breaker D Tripping Curve 1P B Curve And C Curve MCB

1P MCB With B C D Tripping Curve Single Phase Miniature Circuit Breaker

General:

Product type: Miniature circuit breaker

Device application: Distribution

Number of poles: 1P,1P+N, 2P, 3P,3P+N, 4P

Network type: AC

Trip unit technology:  B, C, D

Rated ampere (Special current can be customized):  1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Casing Material:  Flame retardant PA66

Inside Parts: International standard copper parts

Electrical specification:

Rated frequency(Hz): 50/60

Rated working voltage(V) Ue: 1P:230/400～, 2/3/4P: 400～

Rated insulated voltage(V) Ui: 500

Impulse withstand voltage(KV) Uimp: 6

Rated short-circuit breaking capacity(KA) Icn: 6

Maximum working voltage Umax: 440

Minimum working voltage Umin: 12

Dielectric test voltage (kv): 2

Service life Mechanical standard value: 1500(In=63A,80A,100A) 1000(In=125A)

(O-C) Electrical Standard value: 8500(In=63A,80A,100A) 7000(In=125A)

Connection and installation:

Ambient temperature (with daily average≤35℃): -5℃～+40℃

Protection degree All sides: IP40

Connection terminal: IP20

Instantaneous tripping characteristic:

Circuit breaker SB6 are designed for protection of distribution and branch circuits, having different load;

 ♦ Curve B----Device should not work in 0.1 second at current 3 In; at current 5 In should work in less than 0.1S

 ♦ Curve C---- Device should not work in 0.1 second at current 5 In; at current 10 In should work in less than 0.1S

 ♦ Curve D---- Device should not work in 0.1 second at current 10 In; at current 20 In should work in less than 0.1S

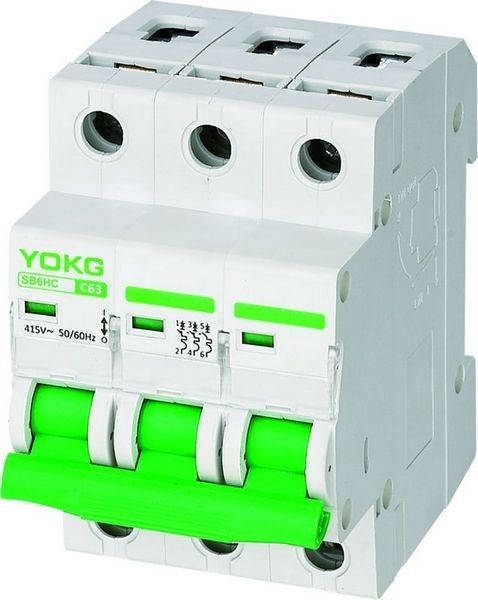

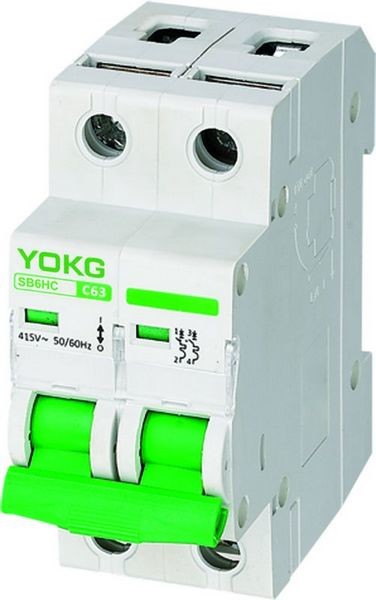

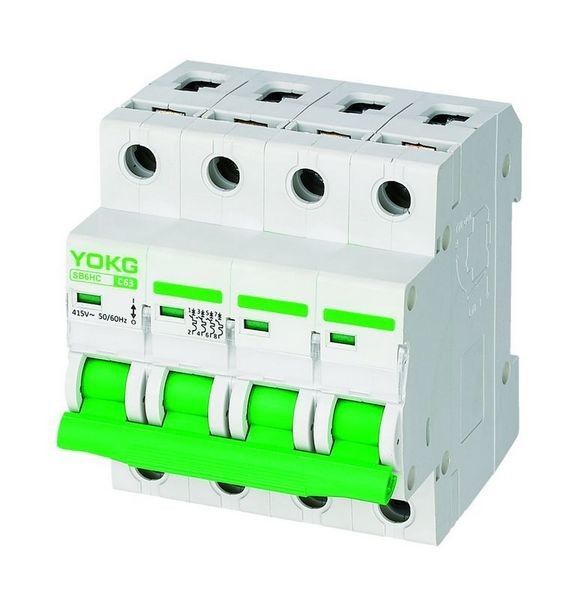

The Number of Poles:

Dimensions:

Certificates:



Packing and Delivery:
