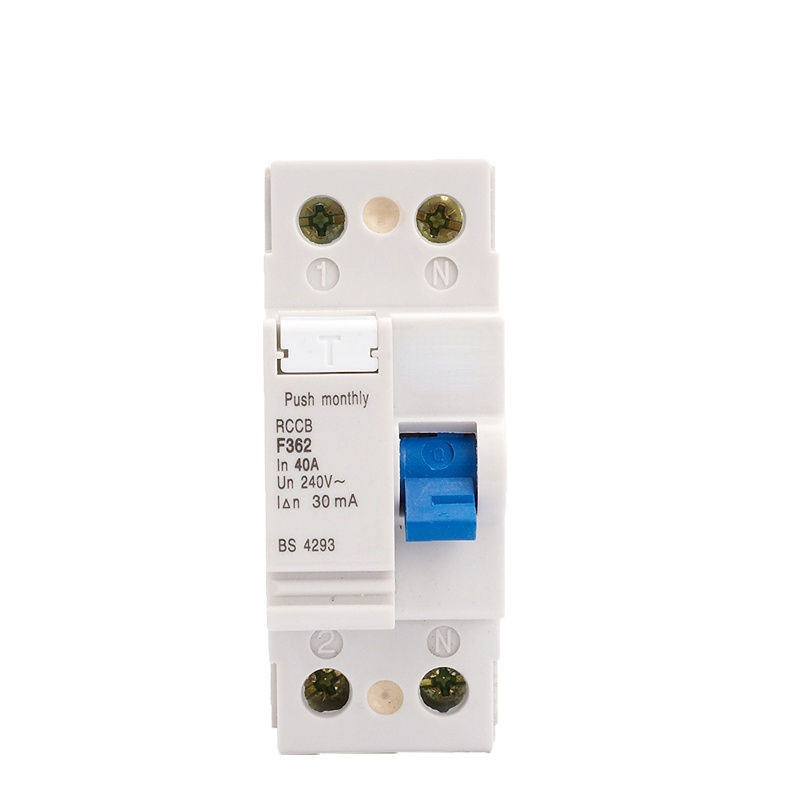

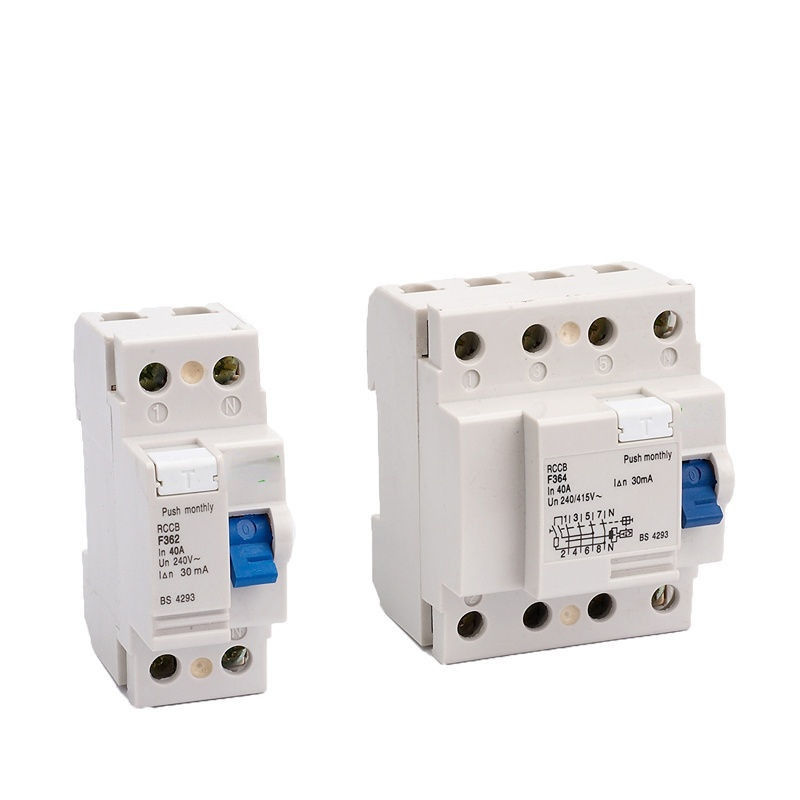

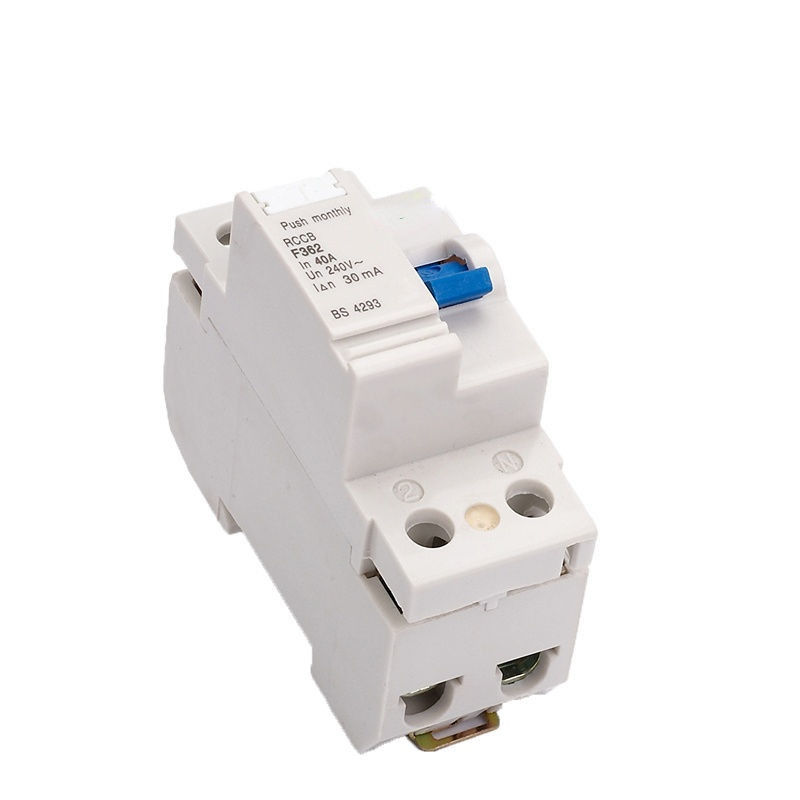

Electromagnetic type Residual Current Circuit Breaker 4 Pole 63A 30ma RCCB
Application:
F360 series residual current circuit breakers (RCCB) are in accordance with the standards of IEC1008-1 and GB16916.1-1997. They are applied to the circuit of AC 50/60Hz, 2P 240V, 4P 415V. They are mainly used for preventing electric fire and personal casual accidents caused by personal electric shock or leakage. They are current-operated and fast leakage protectors of pure electromagnetic types. They can break off fault circuit rapidly in order to avoid occurrence of accidents.The function of switch won't be influenced by ambient temperature and lighting.
| Number of Poles | 2P,4P |
| Rated Current (A) | 16,20,25,32,40,50,63,80,100 |
|
Rated Residual Operating Current (IΔn)(mA) |
10,30,100,300,500 |
| Rated Residual Non-operation Current (IΔno)(mA) | ≤0.5 IΔn |
| Rated Voltage (V) | AC 230/240 |
| AC 400/415 | |
| Residual Operating Current Scope | 0.5IΔn~IΔn |
| Residual Current Off-time | ≤0.3S |
| Endurance | 4000 |
| Protection Degree | IP20 |
