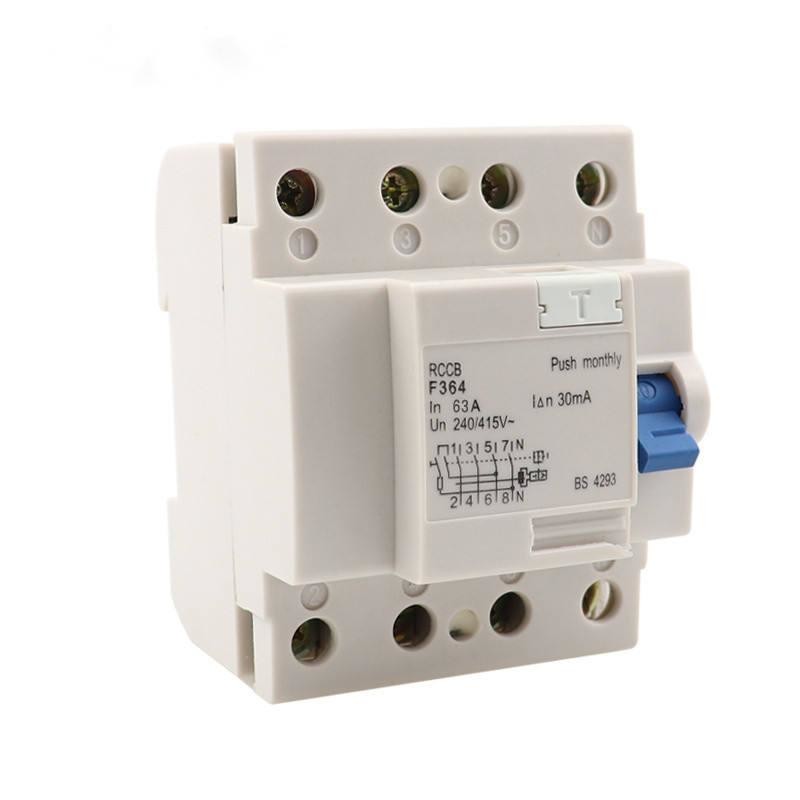

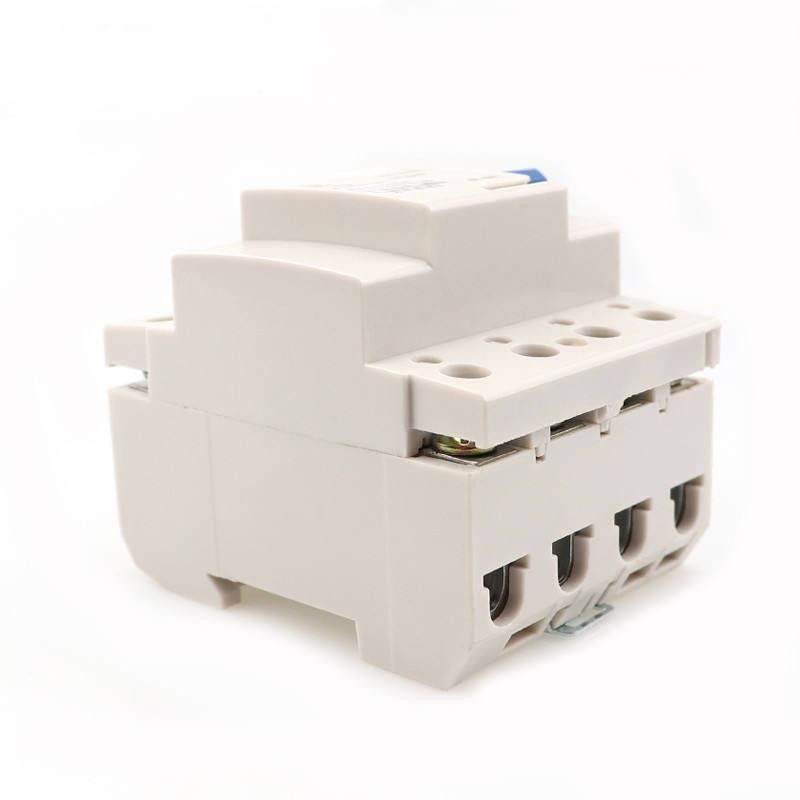

F360 F362 F364 30mA 16A 25A 32A 2p 4p Residual Current Circuit Breaker
Application:
RCCB is used in industrial&mining enterprises,Commercial building and housing. Without overcurrent protection.It is used to protect personal electric equipment from electric shock hazard, and also can be used for unfrequent switchover of circuits under normal conditions.
| Construction and Feature | ||||||||||
| 1)Provides protection against earth fault/leakage current and function of isolation. | ||||||||||
| 2)High short-circuit current withstand capacity | ||||||||||
| 3)Applicable to terminal and pin/fork type busbar connection | ||||||||||
| 4)Fire resistant plastic parts eeendures abnormal heating and strong impact. | ||||||||||
| 5)Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity | ||||||||||
| 6)Independent of power supply and line voltage , and free from external interference, voltage fluctuation. | ||||||||||
| Technical Data | ||||||||||
| 7)Mode :Electro-magnetic type , electronic type | ||||||||||
| 8)Residual current characteristics : A , AC | ||||||||||
| 9)Pole No. : 2,4 | ||||||||||
| 10)Rated making and breaking capacity : 630A | ||||||||||
| 11)Rated current(A) : 1-63A | ||||||||||
| 12)Rated Voltage : 230/415V AC | ||||||||||
| 13)Rated frequency : 50/60Hz | ||||||||||
| 14)Rated residual operating current IΔn(A) : 0.03,0.1,0.3,0.5 | ||||||||||
| 15)Rated residual non operating current IΔno: 0.5IΔn | ||||||||||
| 16)Rated conditional short-circuit current Inc : 6KA | ||||||||||
| 17)Rated conditional residual short -circuit Current I Δ c : 6KA | ||||||||||
| 18)Tripping duration : Instantaneous tripping≤0.1s | ||||||||||
| 19)Residual tripping current range : 0.5I Δ n~IΔn | ||||||||||
| 20)Electro-mechanical enduarance : 4000 cycles | ||||||||||
| 21)Connection capacity : Rigid conductor 25mm2 | ||||||||||
| 22)Terminal connection Height : 12mm | ||||||||||
| 23)Connection terminal : Screw terminal, Pillar terminal with clamp . | ||||||||||
| 24)Fastening torque : 2.0Nm | ||||||||||
| 25)Installation : On symmetrical DIN rail 35mm, Panel mounting . |
