NFIN Series Residual Current Device IP40 30ma 63a 2 Pole RCD 100ma 300ma

NFIN Series Residual Current Device IP40 30ma 63a 2 Pole RCD 100ma 300ma
Features Gallery Product Description Request A Quote
Rated Residual: 30,100,300,500mA
Terminals: Red Copper
Esidual Current Breaking Time: ≤0.3s
Poles Number: 2P,4P
Place Of Origin: Zhejiang, China
Cover: Fire Proof
High Light:

NFIN Series Residual Current Device


IP40 30ma Residual Current Device


100ma Residual Current Breaker

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: NFIN series RCD
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

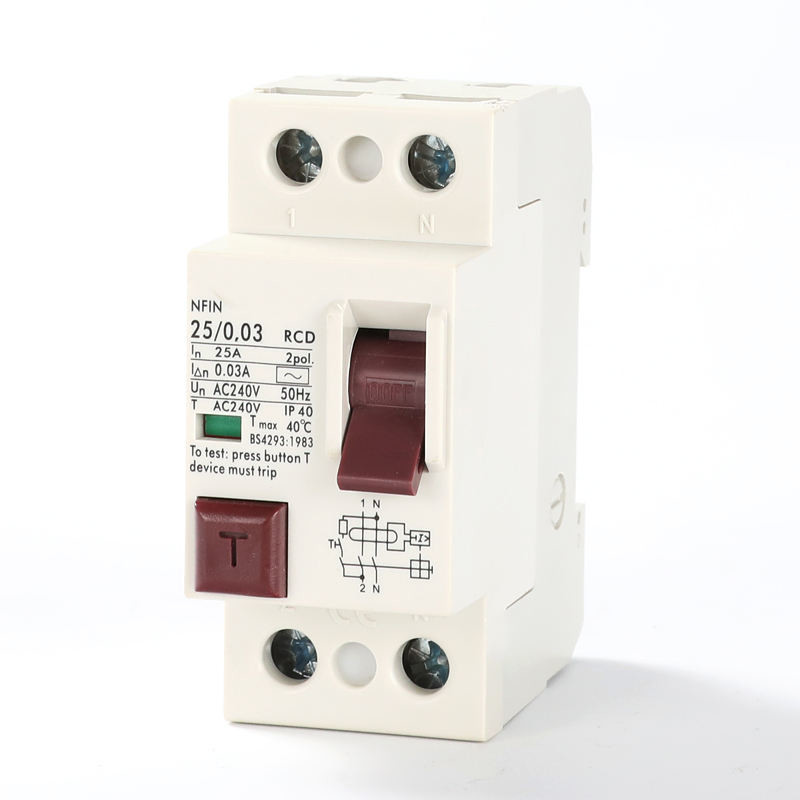

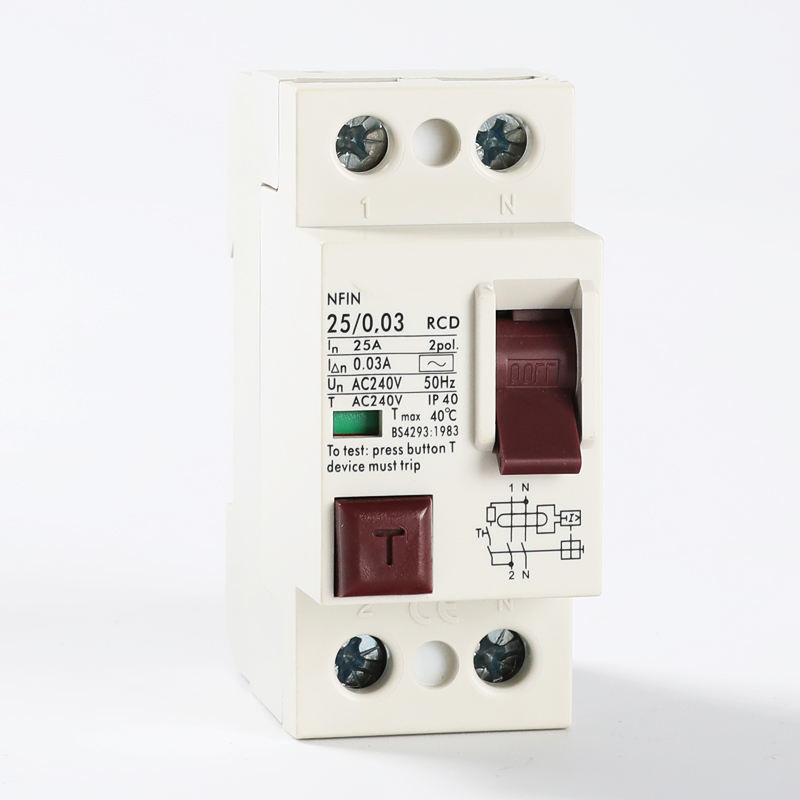

NFIN Series IP40 30ma 63a 2 Pole Residual Current Device RCD 100ma 300ma



The Residual Current Device (RCD) is in conformity with the standards of IEC 1008, VDE0664, CEE27 and BS 4293.
It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thusit is suitable to
avoid the shock hazard and fire causedby earth leakage.
NFIN RCD is mainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce, hotels and
families, it can be used in circuits up to single phase 240V, three-phase 415V, 50 or 60Hz.

Technical Data

Mode Electro-magnetic type, electronic type
Residual current characteristics A, AC
Pole No. 2, 4
Rated making and breaking capacity 630A
Rated current(A) 16 25 40 63 80 100A
Rated voltage 240/415V AC
Rated frequency 50/60Hz
Rated residual operating current IΔn(mA) 10, 30, 100, 300, 500
Rated residual non operating current IΔno 0.5IΔn
Rated conditional breaking current Inc 6000A
Rated conditional residual breaking current IΔc 6000A
Tripping duration Instantaneous tripping≤0.1s
Residual tripping current range 0.5IΔn~IΔn
Electro-mechanical endurance 4000 cycles
Connection capacity Rigid conductor up to 25mm2
Connection terminal Screw terminal
Pillar terminal with clamp
Fastening torque 2.0 Nm
Installation On symmetrical DIN rail 35mm
Panel mounting



NFIN Series Residual Current Device IP40 30ma 63a 2 Pole RCD 100ma 300ma 0


1.How can we get quotations?

A:We will send quotations within 24 hours after getting your enquiry. Urgent need you can call us or send us messages via Whatsapp.

2.Can we get sample to check your quality?

A:All items sample are available.

3.Can you do the design for packing?

A:Yes. We have ad team can assist you design inner and outer box if need.

4.What is your terms of delivery?

A:Normally we work on EXW FOB.
