Earth Leakage Residual Current Circuit Breaker ID 2P 4P 25A 40A 63A RCCB Electronic

Basic Information

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	lD 2P 4P RCCB

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Standard export packing or According to customer's demand
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month

Get Best Price Contact Now

Detail Information

Breaking Capacity:	6kA	BCD Curve:	B,C,D
Rated Current:	25A,40A,63A, 80A, 100A	Poles Number:	2P,4P
Type:	RCCB, Residual Current Circuit Breaker	Model Number:	ID
Highlight:	Earth Leakage Residual Current Circuit Breaker , ID 2P Leakage Current Circuit Breaker , 40A Electronic Leakage Breaker

Product Description

Earth Leakage ID 2P 4P 25A 40A 63A RCCB Residual Current Circuit Breaker Electronic

Application:

The RCCBs are mainly used in varieties of factories; enterprises and building construction, 1 phase 230V

and 3 phase 400V 50/60Hz, rated Current(A): 16, 20, 25, 40, 50, 63. They are not suitable for use in a DC

pulse system. They can cut off the fault circuit immediately on the occasion of a shock hazard or earth

leakage of the trunk, thus, it is suitable to avoid the shock hazard and fire caused by earth leakage. They

conform with the standard of IEC61008.

Specifications:

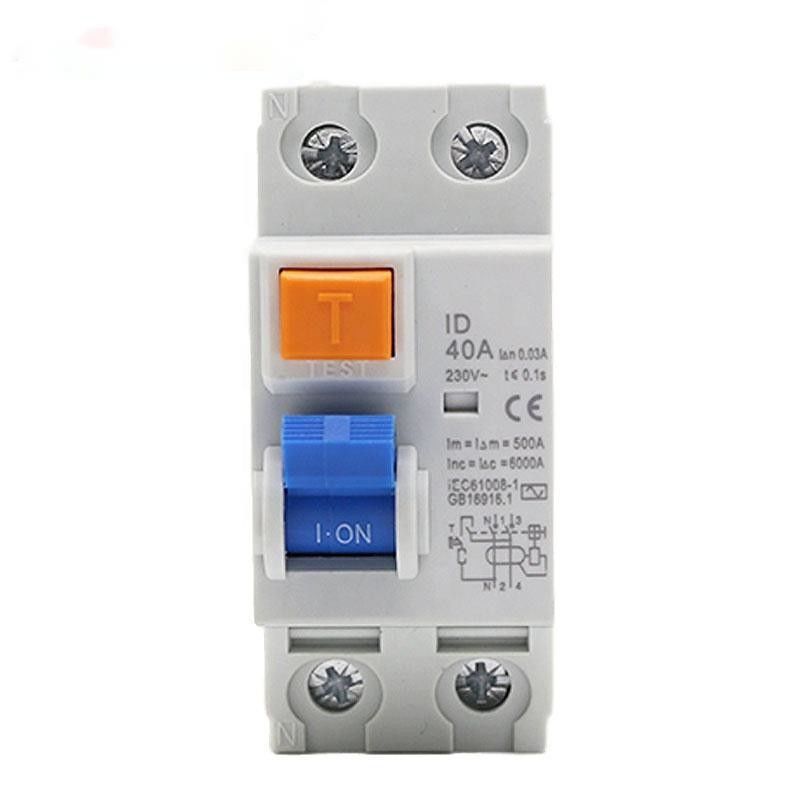

Earth Leakage Residual Current Circuit Breaker ID 2P 4P 25A 40A 63A RCCB Electronic 0

Product Paramenters:

Number of poles	2P
Breaking capacity	6KA
Rated current(A)	16,25,40,63,80,100A
Rated voltage(V)	AC 2P 230/240V 4P 400/415V
Rated residual operating current(mA)	30,100,300,500mA
Rated residual non-operation current(In)	0.5In
Residual operating current scope	0.5In~In
Residual current breaking time	≤0.3s
Residual current trip characteristics	A,AC
Ultimate short-circuit breaking capacity	6000A
Endurance	≥4000
Connection Capacity	≤25mm2
Degree of protection	IP20
Standard	IEC/EN610018

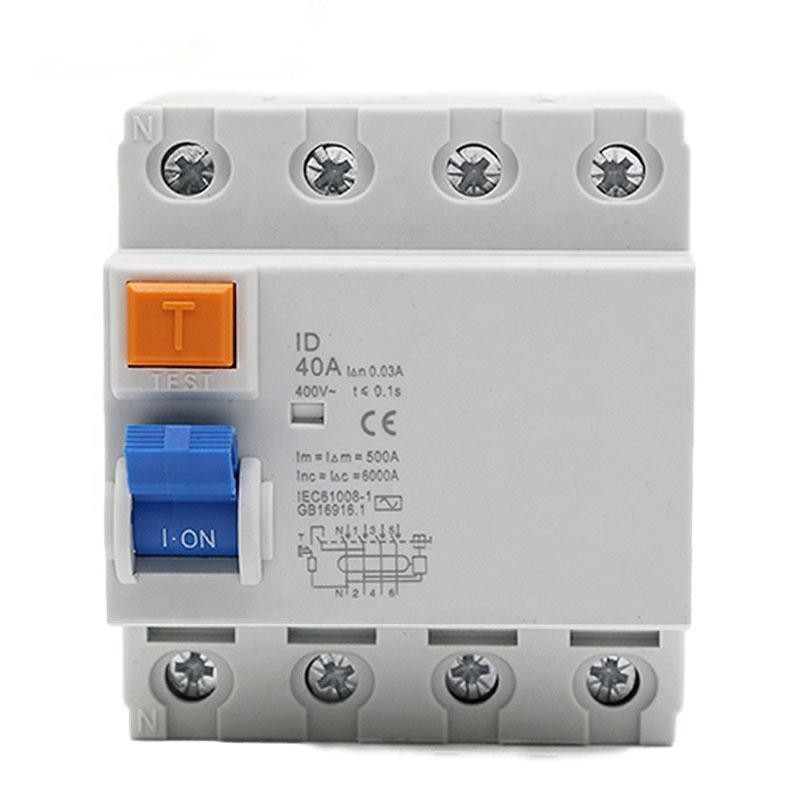

Earth Leakage Residual Current Circuit Breaker ID 2P 4P 25A 40A 63A RCCB Electronic 1

Earth Leakage Residual Current Circuit Breaker ID 2P 4P 25A 40A 63A RCCB Electronic 2
