Product Details:
|
| Model Number: | DZ47-63 2P | Material: | Cooper |
|---|---|---|---|
| Mechanical Life: | 20000 | Rated Frequency: | 50/60hz |
| Rated Voltage: | 240/380V | Type: | Mini |
| High Light: | 35mm Din Rail Mini Circuit Breaker,2 Pole 400V Mini Circuit Breaker,35mm Mcb Mini Circuit Breaker |
||

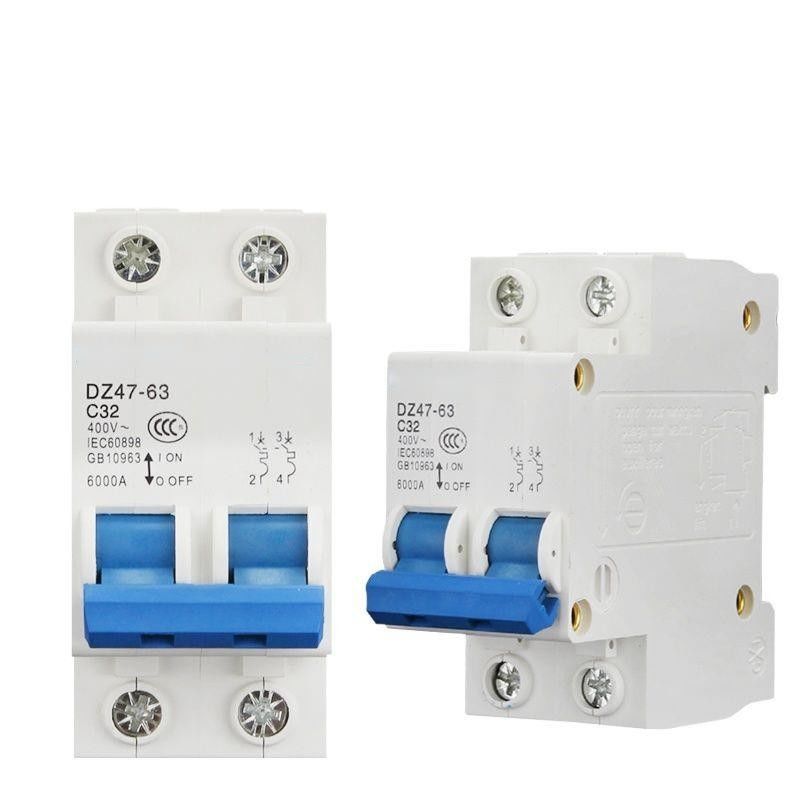

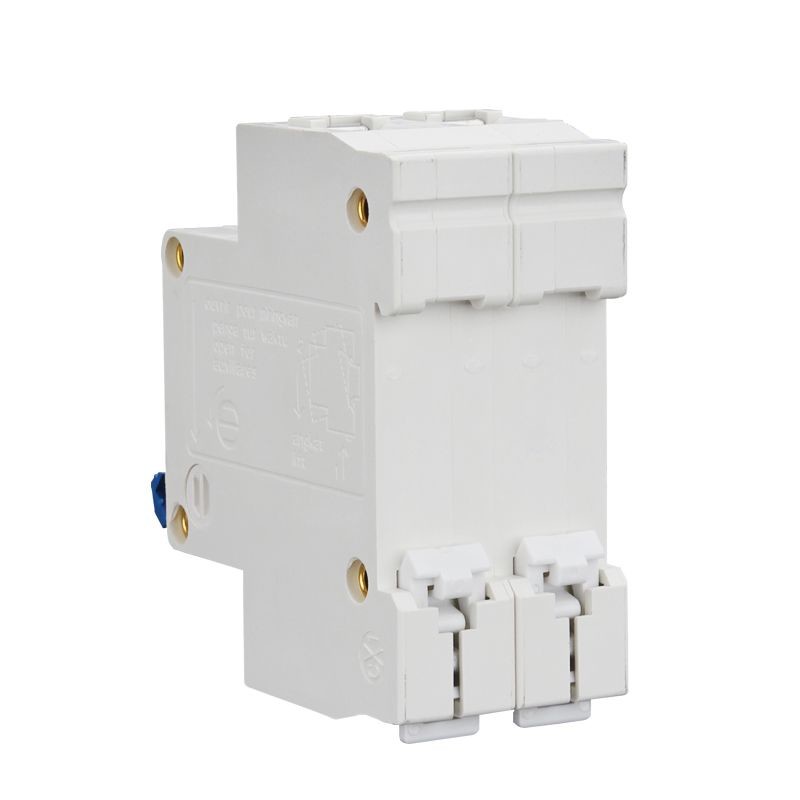

35mm Din Rail DZ47-63 2 Pole 10A 32A 63A 400V Mini Circuit Breaker MCB
Application:
DZ47-63 is applicable to a line of AC 50Hz/60Hz, 230V in single pole, 400V in double, three,four poles for protecting overload and short circuit, and rated current up to 63A. It can also beused for infrequent line conversion under the normal condition.The breaker is applicable tolighting distribution system in industrial enterprise, commercially district, high-rise building anddwelling house. It conforms with the standards of IEC60898.
Products description:
♦ Model: MCB DZ47-63
♦ Poles:1P,2P,3P,4P
♦ Rated current: 1A,2A,3A,4A,5A,6A,10A,16A,20A,25A,32A,40A,50A,63A
♦ Rated voltage: AC230V / 400V
♦ Rated Frequency: 50Hz/60Hz
♦ Curve: C Curve
♦ Protection degree:IP20
♦ Standard:IEC60898;GB10963.1
♦ With over load/short circuit protection
♦ Lighting/Motor protection optional
Package Type: Standard export carton packing:
♦ 1P MCB 240pcs/ctn
♦ 2P MCB 120pcs/ctn
♦ 3P MCB 80pcs/ctn
♦ 4P MCB 60pcs/ctn
