Product Details:
|
| Frequency: | 50Hz, 60Hz | Number Of Poles: | 1,2,3,4 |
|---|---|---|---|
| Main Circuit Rating Current: | 25A,40A,63A,100A | Contact: | 2NO,2NC, 1NO+1NC |
| Voltage: | 230V,110V, 48V,24V | Product: | Magnetic Contactor |
| OEM: | Available | Place Of Origin: | Wenzhou, China |
| High Light: | 110V AC Household Contactor,1 Pole NC Household Contactor,EN61095 NC Household Contactor |
||

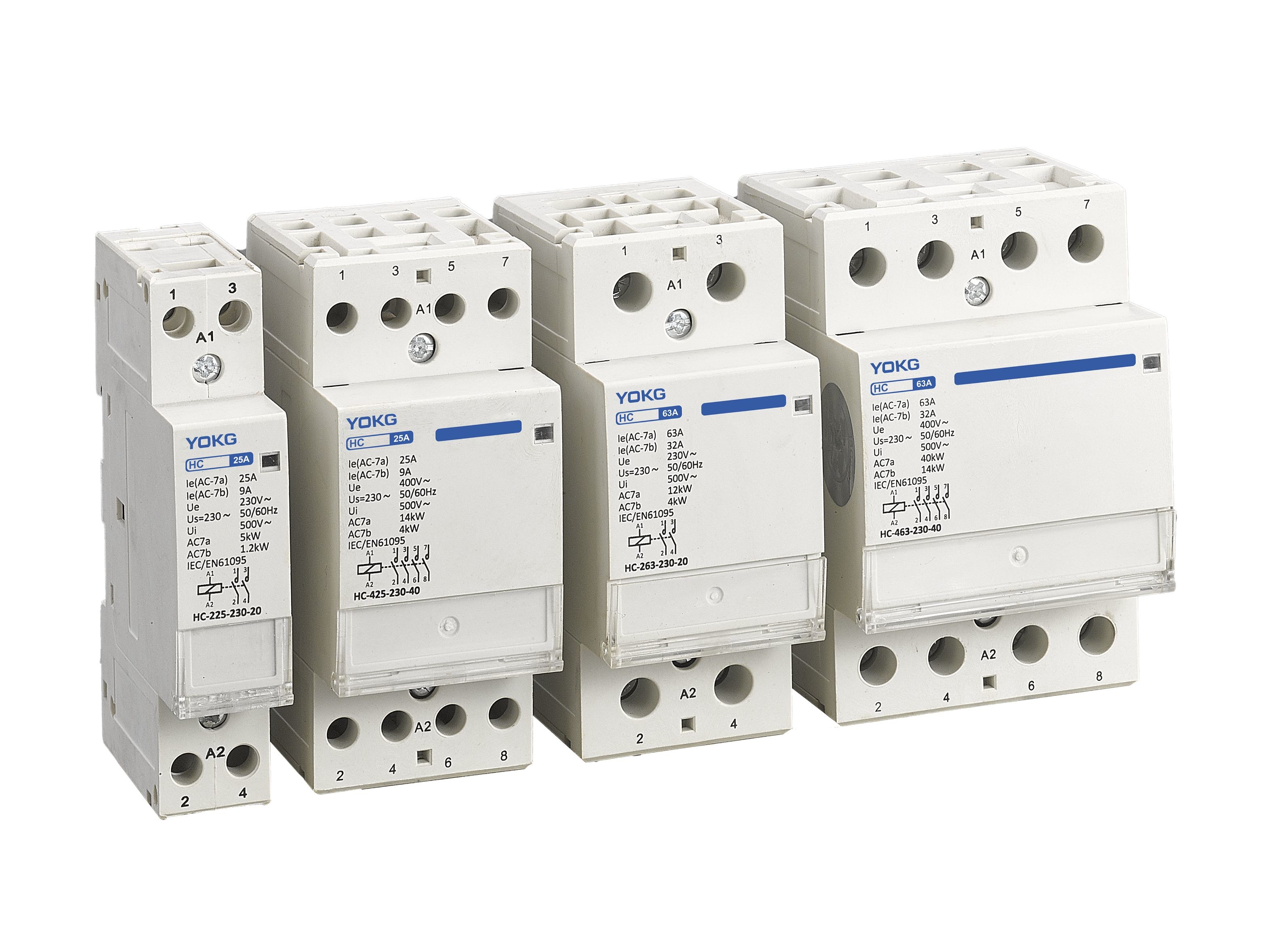

110V Modular Contactor 1 Pole With NO NC Household Contactor 2P 230V
Application:
HC Serial modular contactor is applicable to alternative circuit with rated voltage up to 400V, rated currentup to 100A and rated frequency 50/60Hz. The product is used for remote switching and controlling HC serial could satisfies most application cases, such as household appliances, hotels, low inductance loading and household electromotor loading control for similar application.

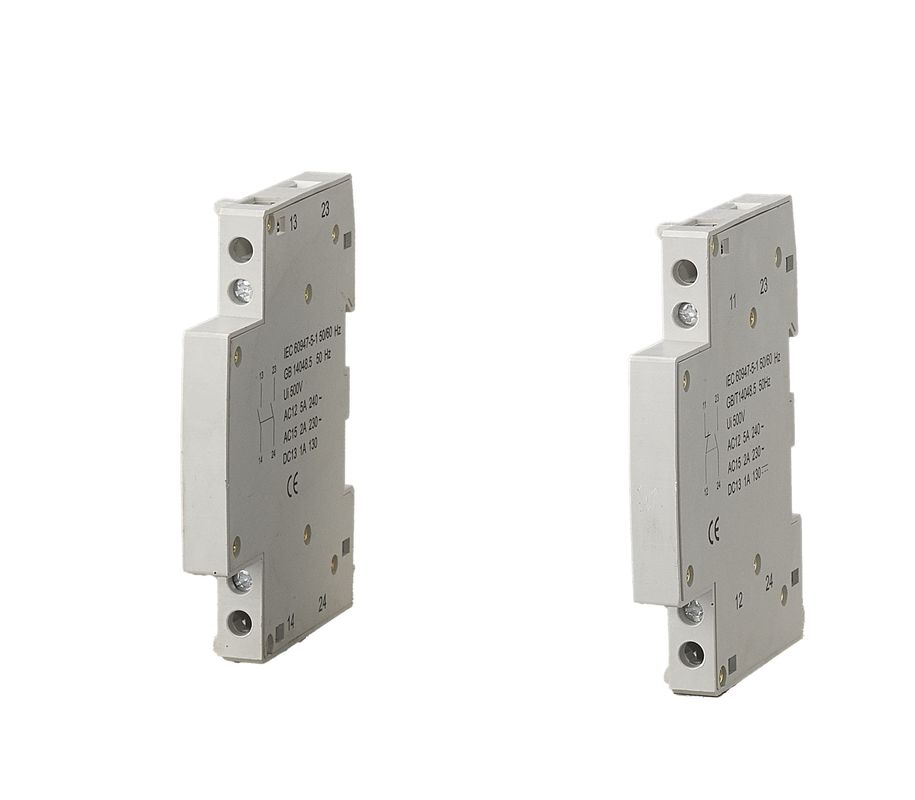

Our contactors can be combined with auxiliary control, protection and indication functions.
Characteristics:
| Brand Name | YOKG/OEM |
| Electricity Type | AC Household Contactor |
| Number of Pole | 2/4 |
| Main Circuit Rating Voltage | 230V,110V, 48V,24V |
| Main Circuit Rating Current | 25A,40A, 63A, 100A |
| Standard | IEC/EN61095 |
| OEM | Avaiable |
| Utilization category | AC-1,AC-7a,AC-7b |
| Mounting | On Din rail TH35-7.5 mounting rail installation |
| Rated frequency | 50/60 Hz |
| Material | High Standard Plastic Silver Copper |
| Mechniacal life | Electrical life 100000,Mechanical life 1000000 |
| Protection degree | IP20 |
| Ambient air temperature | -5～+40℃ |
| Pollution degree | Class 2 |
| Installation category | II |
| Protection degree | IP20 |
| Features | Novel structure, small volume, modular size, beautiful design, good appearance, low noise, safety performance |
| Occasion | Hotel, hospital, apartment |
HC Home Contactor Order Code:
| 63A | 2P | 4P |
| 24V | HC-263-24-10 | HC-463-24-30 |
| HC-263-24-20 | HC-463-24-40 | |
| HC-263-24-11 | HC-463-24-31 | |
| HC-263-24-02 | HC-463-24-22 | |
| HC-463-24-04 | ||
| 48V | HC-263-48-10 | HC-463-48-30 |
| HC-263-48-20 | HC-463-48-40 | |
| HC-263-48-11 | HC-463-48-31 | |
| HC-263-48-02 | HC-463-48-22 | |
| HC-463-48-04 | ||
| 110V | HC-263-110-10 | HC-463-110-30 |
| HC-263-110-20 | HC-463-110-40 | |
| HC-263-110-11 | HC-463-110-31 | |
| HC-263-110-02 | HC-463-110-22 | |
| HC-463-110-04 | ||
| 230V | HC-263-230-10 | HC-463-230-30 |
| HC-263-230-20 | HC-463-230-40 | |
| HC-263-230-11 | HC-463-230-31 | |
| HC-263-230-02 | HC-463-230-22 | |
| HC-463-230-04 |
Certificates:
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
