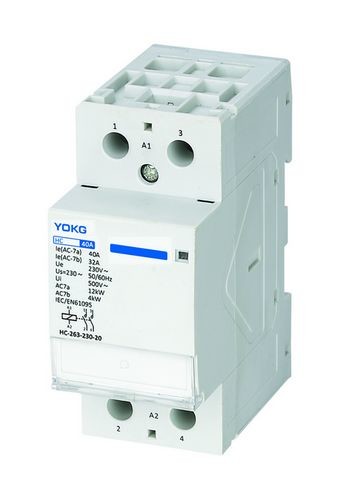

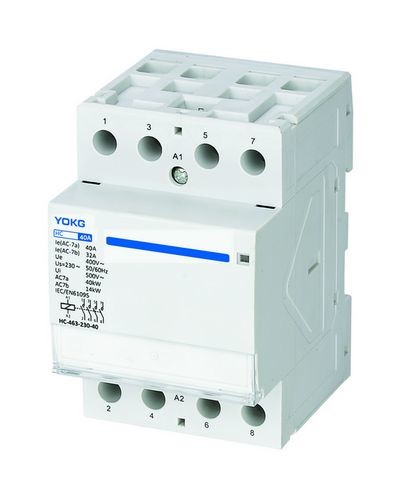

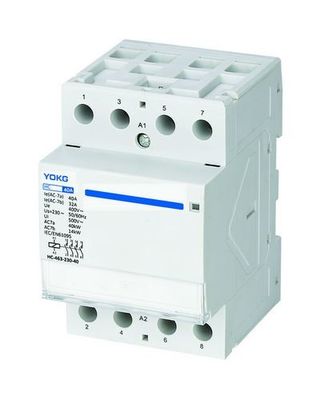

1NO+1NC Modular Cotactor Electrical Ac Household Contactor 2NO 40A Switch
Application:
HC Serial modular contactor is applicable to alternative circuit with rated voltage up to 400V, rated currentup to 100A and rated frequency 50/60Hz. The product is used for remote switching and controlling HC serial could satisfies most application cases, such as household appliances, hotels, low inductance loading and household electromotor loading control for similar application.
Our contactors can be combined with auxiliary control, protection and indication functions.
Characteristics:
| Brand Name | YOKG/OEM |
| Electricity Type | AC Household Contactor |
| Number of Pole | 2/4 |
| Main Circuit Rating Voltage | 24V,48V,120V, 240V |
| Main Circuit Rating Current | 25A,40A, 63A, 100A |
| Standard | IEC/EN61095 |
| OEM | Avaiable |
| Utilization category | AC-1,AC-7a,AC-7b |
| Mounting | On Din rail TH35-7.5 mounting rail installation |
| Rated frequency | 50/60 Hz |
| Material | High Standard Plastic Silver Copper |
| Mechniacal life | Electrical life 100000,Mechanical life 1000000 |
| Protection degree | IP20 |
| Ambient air temperature | -5～+40℃ |
| Pollution degree | Class 2 |
| Installation category | II |
| Protection degree | IP20 |
| Features | Novel structure, small volume, modular size, beautiful design, good appearance, low noise, safety performance |
| Occasion | Hotel, hospital, apartment |
HC Home Contactor Order Code:
| 40A | 2P | 4P |
| 24V | HC-240-24-10 | HC-440-24-30 |
| HC-240-24-20 | HC-440-24-40 | |
| HC-240-24-11 | HC-440-24-31 | |
| HC-240-24-02 | HC-440-24-22 | |
| HC-440-24-04 | ||
| 48V | HC-240-48-10 | HC-440-48-30 |
| HC-240-48-20 | HC-440-48-40 | |
| HC-240-48-11 | HC-440-48-31 | |
| HC-240-48-02 | HC-440-48-22 | |
| HC-440-48-04 | ||
| 110V | HC-240-110-10 | HC-440-110-30 |
| HC-240-110-20 | HC-440-110-40 | |
| HC-240-110-11 | HC-440-110-31 | |
| HC-240-110-02 | HC-440-110-22 | |
| HC-440-110-04 | ||
| 230V | HC-240-230-10 | HC-440-230-30 |
| HC-240-230-20 | HC-440-230-40 | |
| HC-240-230-11 | HC-440-230-31 | |
| HC-240-230-02 | HC-440-230-22 | |
| HC-440-230-04 |
Company introduction:
We, Yueqing Zeyi electrical Co., Ltd. is intended on creating a professional contactor manufacturing enterprise. Adhere to this business concept, have been focusing on the contactor industry for nearly 20 years, concentrate on the design and manufacture of CJX2 (WC1) series products. Now we can provide more than 100 kinds of AC and DC contactors.
Especially our HC series modular contactor, can be comparable to the performance of famous brand products.
Company’s products have all obtained 3C, CE certification, and has passed the German TUV authority CB test.
Quality is the soul of the enterprise, talent is the foundation. We believe that the high quality products and the best humanized service are the cornerstone of our success.
Focus on product design and manufacturing, become professional OEM, ODM supplier. Can provide ultra-cost-effective OEM, ODM services for all kinds of brand enterprises. Has established good business relations with lots of excellent domestic low-voltage electrical enterprise groups.
Through years of efforts, the company's products have been widely used in machine tools, machinery, textile, chemical, petroleum, metallurgy, construction, railway, shipping, communications, electric power and household appliances and other industries, the products are exported to more than 50 countries and regions in the world.
Carry on the past, hand in hand, we sincerely hope to cooperate with you, create brilliant!
Certificates:
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
