Detail Information

Breaking Capacity:	6kA	Certificate:	SAA, ESV, CE, CB
Protection Degree:	IP20	Poles:	1P+N
Product Name:	Leakage Protector, RCBO	Ampere:	6A,10A,16A,20A,25A,32A,40A
Highlight:	residual current circuit breakers , leakage protector circuit breaker , current leakage protector

Product Description

6 Ka 1P+N RCBO leakage protector circuit breaker 30Ma with SAA certificate

Function:

♦ Control electric circuits

♦ Protect people against indirect contacts and additional protection against direct contacts

♦ Protect installations against fire hazard due to insulation faults

♦ Residual current circuit breakers are used in housing, tertiary sector and industry

♦ Support 35mm Din-rail installation

Specifications:

Poles	1P+N
Electrical Specification
Rated current (A) In	6A,10A,16A,20A,25A,32A,40A
Rated working voltage (V) Ue	240V
Rated residual current (mA) I△n	30
Rated residual making and breaking capacity (A) I△m	6kA
residual current working type	AC, A
Service life Mechanical Standard value	8000
(O-C) Electrical Standard value	4000
Control And indication
Shunt release (SHT)	NONE
Undervoltage release (UVT)	NONE
Auxiliary contact(AUX)	NONE
Contact position indicator	NONE
Fault indication	DEFAULT
Connection And Installation
Ambient temperature (with daily average ≤35℃)	-5℃ ～ +40℃
Protection degree All sides	IP40
connection terminal	IP20

Dimensions:

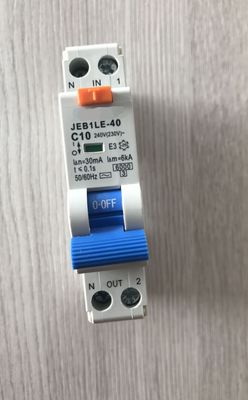

6 Ka RCBO Leakage Protector Residual Current Circuit Breaker 30Ma 0

6 Ka RCBO Leakage Protector Residual Current Circuit Breaker 30Ma 1

6 Ka RCBO Leakage Protector Residual Current Circuit Breaker 30Ma 2

FAQ:

1. Could I have prices of your products?

Well welcome. Please feel free to send us an inquiry. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, OEM and ODM are available

3. What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs; For more quantity, we can negotiate about it.

4. Do you inspect the finished products?

Our products100% self-inspection and testing before packing.

5. How about payment terms?

30% deposit, the rest payment balance against B/L copy .

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	SAA, ESV, CE, CB
Model Number:	JEB1LE-40

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month

6 Ka RCBO Leakage Protector Residual Current Circuit Breaker 30Ma

residual current circuit breakers
