690V 3 Pole AC Contactor 1NO 1NC

690V 3 Pole AC Contactor 1NO 1NC
690V 3 Pole AC Contactor 1NO 1NC 690V 3 Pole AC Contactor 1NO 1NC 690V 3 Pole AC Contactor 1NO 1NC

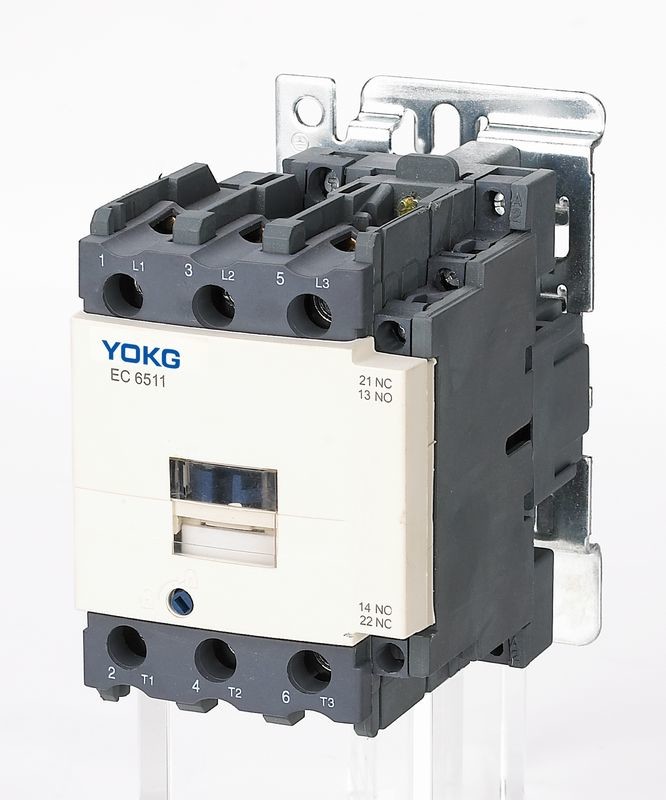

Large Image :  690V 3 Pole AC Contactor 1NO 1NC

Product Details:
Place of Origin: China
Brand Name: YOKG
Certification: CE,TUV,CB
Model Number: SC1-40~65, SC1-80~95
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month

690V 3 Pole AC Contactor 1NO 1NC

Description
Rated Heating Current: 50A,60A,80A,110A Rated Insulation Voltage: 220V,400V,690V
Standard: IEC60947-4-1, GB14048.4 Auxiliary Contact: 1NO+1NC
Pollution Degree: Class 3 Protection Degree: IP20
Electricity Type: AC Number Of Poles: 3
High Light:

690V 3 Pole AC Contactor

,

1NO 1NC 3 Pole AC Contactor

,

690V 1NO 1NC Contactor

690V 3 Poles AC Contactor 1NO+1NC 80A 110amp Electrical Contactor





Application:

SC1 series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ , rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.



This series contactor complies with GB 14048, IEC60947-4-1





Model and Implication:

690V 3 Pole AC Contactor 1NO 1NC 0



Main parameters and Technical Performance:

Type SC1-40 SC1-50 SC1-65 SC1-80 SC1-95
Rated heating current (A) 50 60 80 110 110
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 1NO + 1NC
Short-time withstand current(A) 10S 320 400 520 640 760
AC-3
Rated working current(A)
220V/230V 40 50 65 80 95
380V/400V 40 50 65 80 95
660V/690V 34 39 42 49 49
AC-3 capacity of phase 3
squirrel-cage motor (AC-3) KW
220V/230V 11 15 18.5 22 25
380V/400V 18.5 22 30 37 45
660V/690V 30 33 37 45 45
Operation frequency (times/h) Electrical life 600
Mechanical life 3600
AC-3 Electrical life (10000/times)   80 60 60 60 60
Mechanical life (10000/times) 800 800 800 600 600
Equipped fuse type RT16-63 RT16-80 RT16-80 RT16-100 RT16-125
Rated control supply voltage Us(V) 50/60Hz 12~480
Operation range Pull-in (85%~110%)Us +40℃
Releasing (20%~75%)Us -5℃
Ac coil average power(VA) Start 200
Keeping 20
Power efficiency class class 3
Thermal loss(W) 6 ~10
Actuation time(ms) Close 20 ~ 25 20 ~ 35
Break 8 ~ 15 8 ~ 20
Main circuit wiring flexible wire without cold
pressing terminal (㎟)
1 stick 2.5~25 2.5~25 2.5~25 4~50 4~50
2 sticks 2.5~16 2.5~16 2.5~16 4~25 4~25
flexible wire with cold
pressing terminal (㎟)
1 stick 2.5~25 2.5~25 2.5~25 4~50 4~50
2 sticks 2.5~10 2.5~10 2.5~10 4~16 4~16
Hard wire (㎟) 1 stick 2.5~25 2.5~25 2.5~25 4~50 4~50
2 sticks 2.5~16 2.5~16 2.5~16 4~25 4~25
Fastening screw size   M8 M10
Tightening fastening torque (N.m)   3.5 4
Control loop wiring flexible wire without cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~4 1~4 1~4 1~4 1~4
flexible wire with cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~2.5 1~2.5 1~2.5 1~2.5 1~2.5
Hard wire (㎟) 1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~4 1~4 1~4 1~4 1~4
Fastening screw size   M3.5
Tightening fastening torque (N.m)   0.8




Working and Installation Condition:

♦ Ambient air temperature: -5℃--+40℃ and average not more than +35℃ within 24 hours;

♦ Altitude: ≤ 2000m;

♦ Air condition: when the highest temperature is +40℃, the air relative humidity is not up to 50%, but the higher humidity is allowed at lower temperature. Like, 90% humidity at 20℃. The condensate dew should be considered when at lower temperature;

♦ Pollution degree: Class 3

♦ Installation category:III

♦ Protection degree: IP20

♦ Installation condition: the gradient angle between installation side and vertical side should not be more than ±5℃

♦ Impact and vibrattion: the contactor must be installed and operate under the circumstances of no obvious shaking, impact and vibration.



Structure characteristic:

♦ With dust cover design, contactor have characteristic of better safety, reliability and it also can extended service life

♦  It can be installed with auxiliary contacts block, time relay and current-limited contacts block, and thermal relay, then to be other derivative products;

♦ This series contactor has small volume, light weight, less power loss, long life and safe and reliability etc;

♦ The contactor can be equipped with 1NO auxiliary contact or 1NC auxiliary contact(less than 32A), and 1NO auxiliary contact+1NC auxiliary contact(more than 40A). In addition, it can be equipped with F4 auxiliary contactor block (2blocks or 4blocks);

♦ In addition to use screw to install, contactor can be tightened with the standard installing rail of 35mm (SC1-09~95) and the standard installing rail of 75mm(SC1-40~95)





Appearance and Installation Dimension:

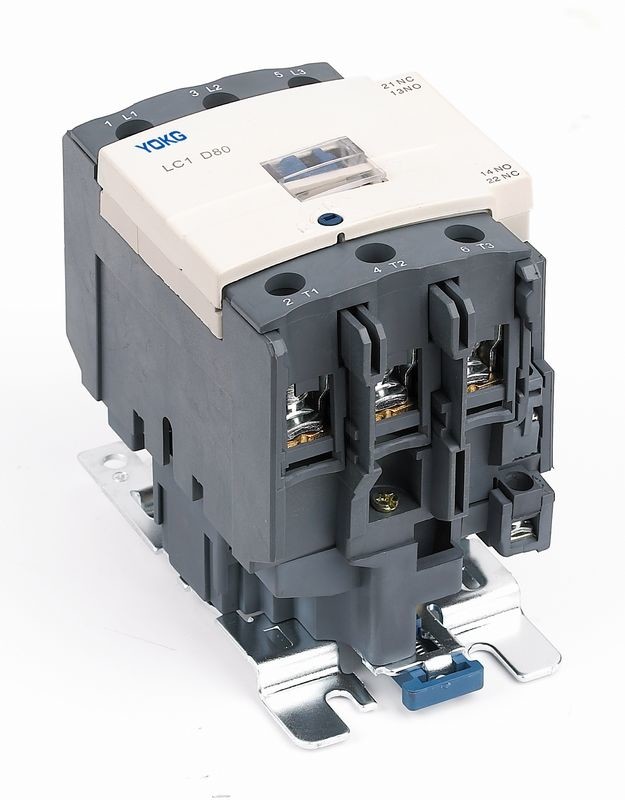

690V 3 Pole AC Contactor 1NO 1NC 1







Installation dimension:

Type A max B max C max a b
SC1-40~65 75 127 119 40 100/110 6.5
SC1-80~95 85 127 130 40 100/110 6.5


690V 3 Pole AC Contactor 1NO 1NC 2690V 3 Pole AC Contactor 1NO 1NC 3
