IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka

IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka
IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka

Large Image :  IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka

Product Details:
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: SB6H
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month

IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka

Description
Breaking Capacity: 4.5KA Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Application: Household Standard: IEC/EN60898-1, IEC/EN 60947-2
Rated Current: 10A,20A,40A,63A Terminal Connection Type: Cable, Busbar
Color: White Enclosure, Green Handle Type: Miniature Circuit Breaker
High Light:

IP40 Indoor Mini Circuit Breaker

,

4P Mini Circuit Breaker 10KA

,

IP40 MCB 3p 40a 10ka

Indoor IP40 Mini Circuit Breaker SB6H 3P,4P 10KA MCB



Instantaneous tripping characteristic:

Circuit breaker SB6 are designed for protection of distribution and branch circuits, having different load;

♦ Curve B----Device should not work in 0.1 second at current 3 In; at current 5 In should work in less than 0.1S

♦ Curve C---- Device should not work in 0.1 second at current 5 In; at current 10 In should work in less than 0.1S

♦ Curve D---- Device should not work in 0.1 second at current 10 In; at current 20 In should work in less than 0.1S



Specifications:

Poles 1P,1P+N, 2P, 3P, 3P+N, 4P
Electrical specification
Rated current(A) In 1-63
Rated frequency(Hz) 50/60
Rated working voltage(V) Ue 1P:230/400~, 2/3/4P: 400~
Rated insulated voltage(V) Ui 500
Impulse withstand voltage(KV) Uimp 6
Rated short-circuit breaking capacity(KA) Icn



4.5

Instantaneous tripping type B,C,D
Maximum working voltage Umax 440
Minimum working voltage Umin 12
Dielectric test voltage (kv) 2
Service life Mechanical standard value 10000
(O-C) Electrical Standard value 4000
Control and indication:
Shunt release (SHT) Optional
Undervoltage release(UVT) Optional
Auxiliary contact(AUX) Optional
Alarm contact(ALT) Optional
Contact position indicator Default
Fault indication None
Connection and installation:
Ambient temperature (with daily average≤35℃) -5℃~+40℃
Protection degree All sides IP40
Connection terminal IP20
Wire(㎟) 16
Busbar(㎟) 16
Mounting Cable/Busbar
Pollution degree 2
Reference temperature for setting of thermal element(℃) 30
Storage temperature(℃) -25℃~+70℃
Tightening torque 3.0
Connection Top and Bottom
Dimensions(mm) a(1P/2P/3P/4P) 17.5/35/52.5/70
IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 0 b(1P/2P/3P/4P) 83/83/83/83
(WxHxL) c(1P/2P/3P/4P) 67/67/67/67



Application:



The Indoor Mini Circuit Breaker Can be used for: Short-circuit protection, Isolation function, Overload protection, Indication function of contact position, 35mm Din-rail installation, top incoming and bottom outgoing wiring type, or bottom incoming and top outgoing wiring type, able to select electrical accessories and achieve distant indication of MCB condition; breaking, closed, and fault tripping and select electrical accessories and realize under-voltage and over-voltage protection of MCB and distant shunt release



IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 1



 Over-current operating characteristics:

No. Rated current of release (A) Initial state Test current Specified time Result to be obtained Remarks
1 1~63 code state 1.13 In t ≤ 1h Non-trip
2 1~63 upon the previous test 1.45 In t < 1h trip setting current up to specified value steadily in 5s
3 In ≤ 32 code state 2.55 In 1s <t <60s trip
In > 32 code state 2.55 In 1s <t <120s trip
4 1~63 code state 3 In t ≤0.1s Non-trip B type
1~63 code state 5 In t <0.1s trip B type
1~63 code state 5 In t ≤0.1s Non-trip C type
1~63 code state 10 In t <0.1s trip C type
1~63 code state 10 In t ≤0.1s Non-trip D type
1~63 code state 20 In t <0.1s trip D type





The Number of Poles:

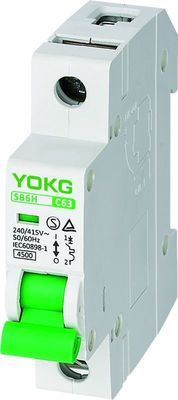

IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 2



Dimensions:

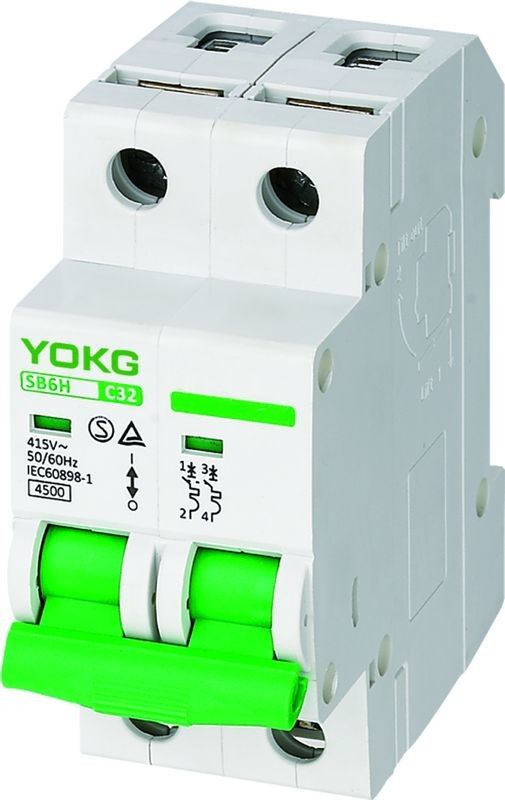

IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 3

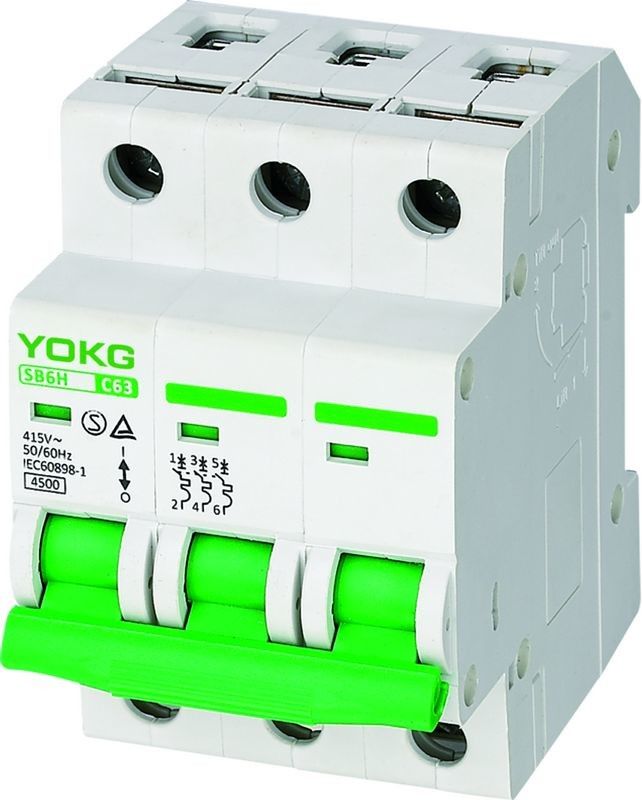

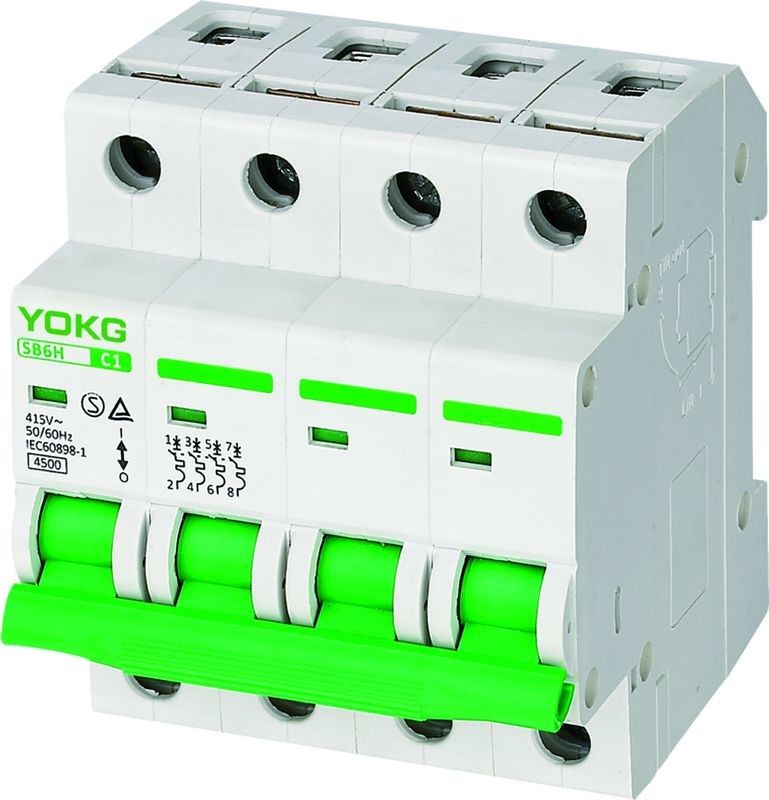

IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 4IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 5IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 6IP40 Indoor Mini Circuit Breaker 10KA SB6H 4P 3p 40a 10ka 7
