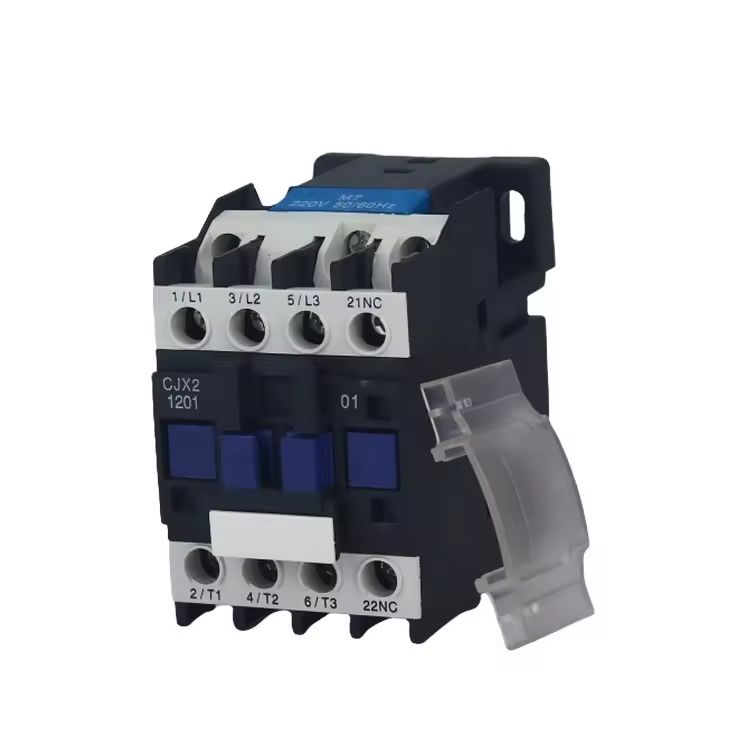

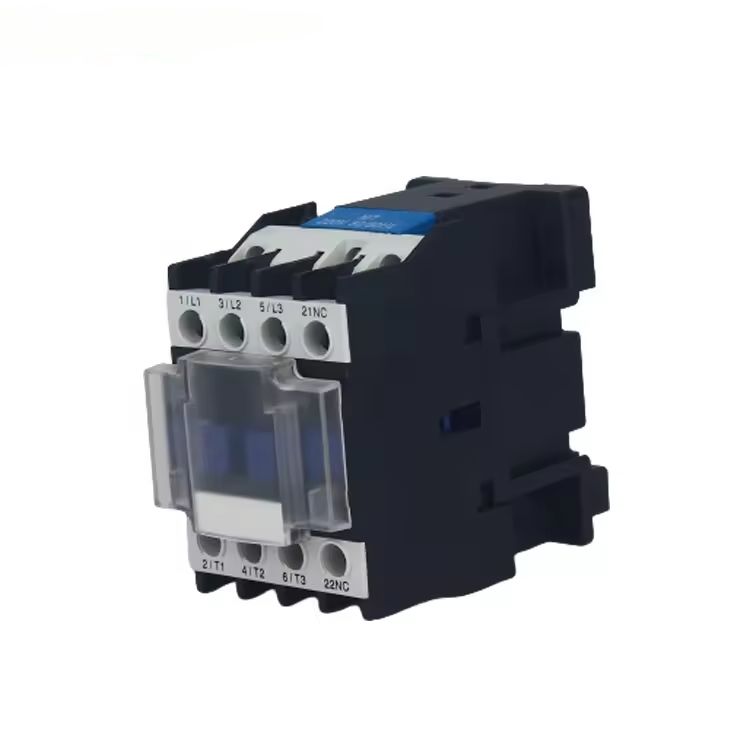

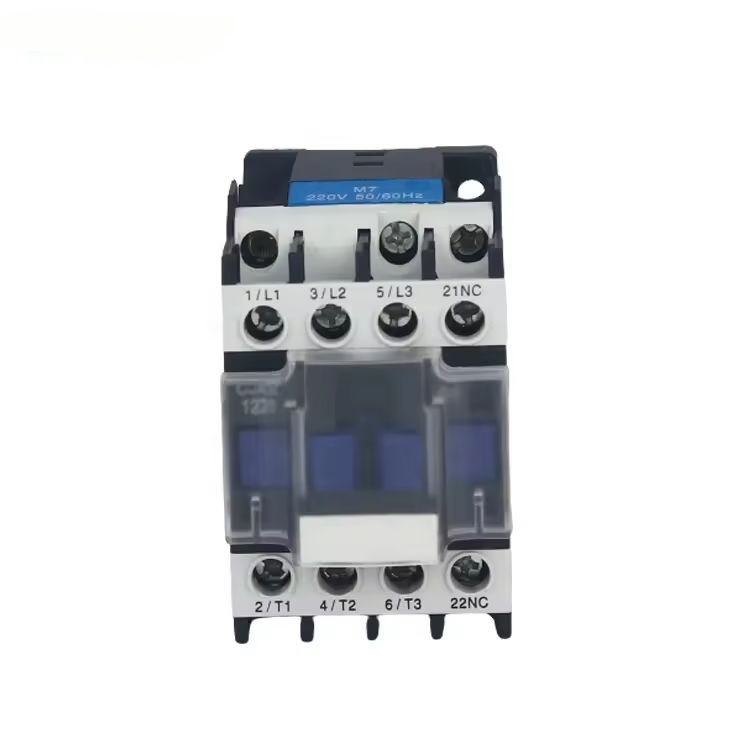

Power AC Contactor CJX2-12 12A 1NC 220VAC 3 Pole Motor Control 9A-95A

Application:
The contactor covered with a dust cover greatly improves the service life and pull-in time of the product, thereby better protecting the equipment. It mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. When used in AC-3, and rated voltage is 380V, rated current up to 620A, for long distance breaking circuit and frequently starting or control the motor. Combined with proper thermal overload relay can protect load circuit. Contactor can frequently start and control AC electromotor.

• Ambient air temperature: -5℃--+40℃ and average not more than +35℃ within 24 hours
• Altitude: ≤ 2000m
• Air condition: when the highest temperature is +40℃, the air relative humidity is not up to 50%, but the higher humidity is allowed at lower temperature. Like, 90% humidity at 20℃. The condensate dew should be considered when at lower temperature
• Pollution degree: Class 3
• Installation category: III
• Protection degree: IP20
• Installation condition: the gradient angle between installation side and vertical side should not be more than ±5℃
• Impact and vibration: the contactor must be installed and operate under the circumstances of no obvious shaking, impact and vibration

• Can be installed with auxiliary contacts block, time relay and current-limited contacts block, and thermal relay, then to be other derivative products
• This series contactor has small volume, light weight, less power loss, long life and safe and reliability
• The contactor can be equipped with 1NO auxiliary contact or 1NC auxiliary contact(less than 32A), and 1NO auxiliary contact+1NC auxiliary contact(more than 40A)
• Can be equipped with F4 auxiliary contactor block (2blocks or 4blocks)
• In addition to use screw to install, contactor can be tightened with the standard installing rail of 35mm (sc09~95) and the standard installing rail of 75mm(SC40~95)
