Product Details:
|
| Type: | Magnetic | Application: | Motor Protector |
|---|---|---|---|
| Rate Working Voltage: | Up To 690V | Standards: | IEC60947-2 |
| Protection Level: | IP65 | Model Number: | GV2-ME |
| High Light: | Adjustable Current Motor Protection Circuit Breaker,GV2 AC Motor Protection Circuit Breaker,0.1-32A Motor Protection Circuit Breaker |
||

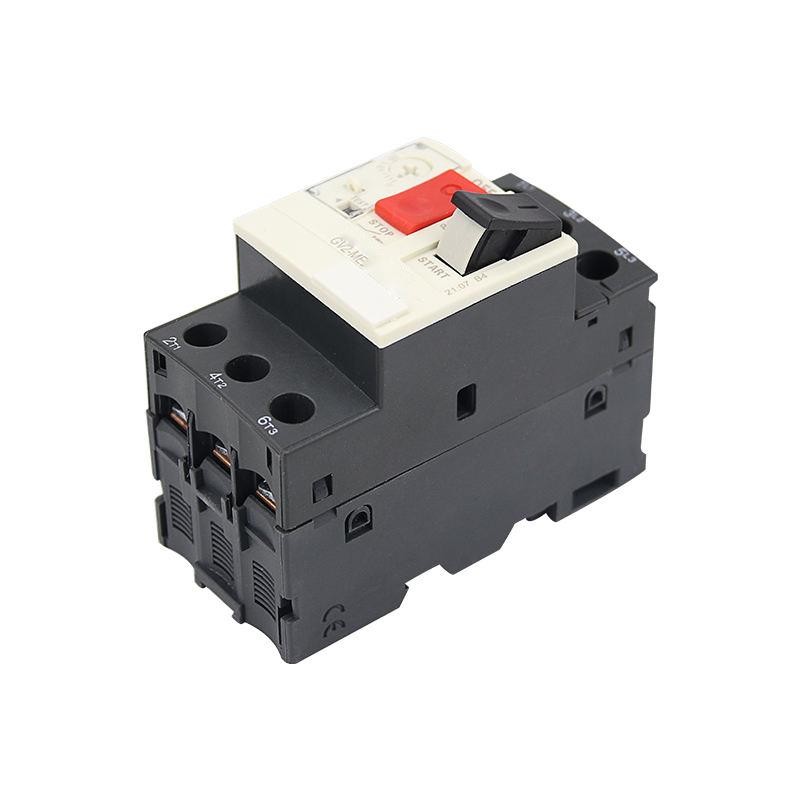

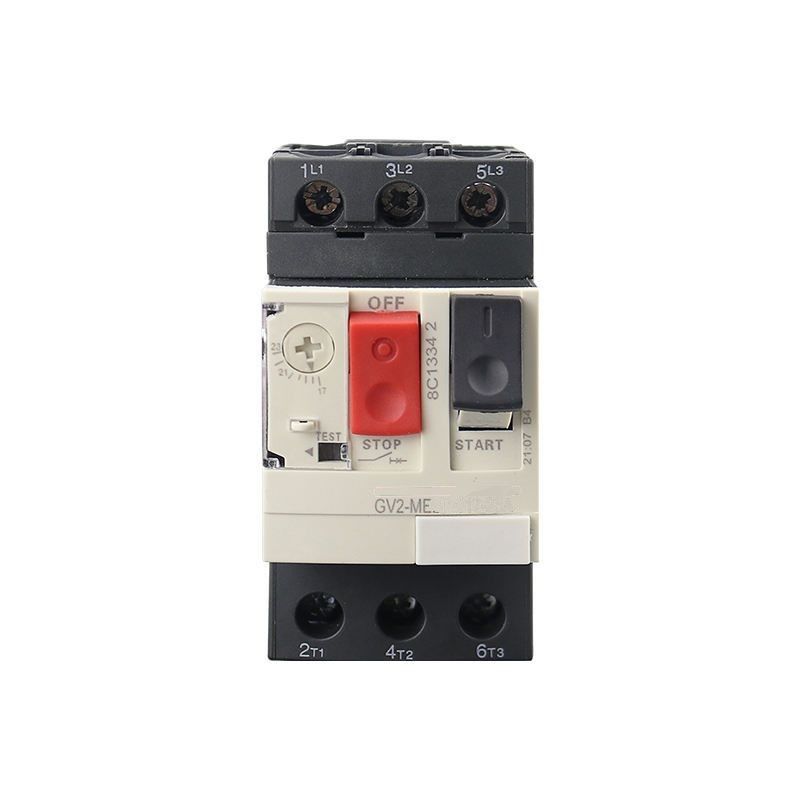

GV2 AC Type Telemecanique 0.1-32A Adjustable Current Motor Protection Circuit Breaker
Description:
High-quality buttons
Precise current setting
Safe wiring
Specification:
Name: Motor Circuit Breaker
Model: GV2-ME
Function: short circuit, overload (over current)
Contact: 3 normally open (auxiliary and tripping devices can be installed)
Working voltage: below 690V
Contact current: 0.1~32A
Segmentation capacity: 10KA
Applicable motor: AC-3 415V
Motor power: 0.37~15KW
Installation method: 35mm standard rail installation
Current selection: ME01C 0.1-0.16A, ME02C 0.16-0.25A, ME03C 0.25-0.4A, ME04C 0.4-0.63A, ME05C 0.63-1A, ME06C 1-1.6A, ME07C1.6-2.5, ME08C 2.5-4A, ME10C 4 -6.3A, ME14C 6-10A, ME16C 9-14A, ME20C 13-18A, ME21C 17-23A, ME22C 20-25A , ME32C 24-32A
