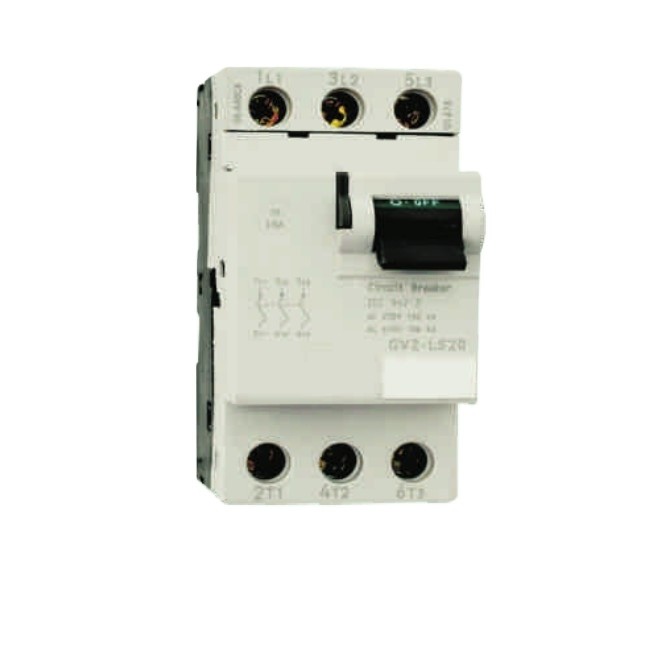

Button Control MPCB 0.1A-32A Motor Protection Circuit Breaker
Application:
GV2-RS,LS,LE series circuit breakers are mainly used for the overload and short. circuit prot-ection for motors in the circuit of AC 50/60Hz. rated operating voltage up to 660V rated operating current from 0.1A to 32A as the full-voltage starters to start and cut off motors under the Ac3 load and for the circuit protection in the circuit of 0.1A-32A.
Air switch of the motor
| GV2-M, GV2-ME, GV2-P | GV2-RS | GV2-LS, GV2-LE | |||
| M01C | 0.1-0.16 | RS01C | 0.1 -0.16 | ||
| M02C | 0.16-0.25 | RS02C | 0.16-0.25 | ||
| M03C | 0.25 - 0.40 | RS03C | 0.25 - 0.40 | LS03 | 0 25-0.40 |
| M04C | 0.40- 0.63 | RS04C | 0.40- 0.63 | LS04 | 0 40-0.63 |
| M05C | 0.63 - 1 | RS05C | 0.63-1 | LS05 | 0.63 -1 |
| M06C | 1-1.6 | RS06C | 1-1.6 | LS06 | 1-1.6 |
| M07C | 1.6-2.5 | RS07C | 1.6-2.5 | LS07 | 1.6-2.5 |
| M08C | 2 5-4 | RS08C | 25-4 | LS08 | 2.5-4 |
| M10C | 4-6.3 | RS10C | 4 - 6.3 | LS10 | 4-6.3 |
| M14C | 6-10 | RS14C | 6-10 | LS14 | 6-10 |
| M16C | 9-14 | RS16C | 9-14 | LS16 | 9-14 |
| M18C | 10-16 | RS18C | 10-16 | LS8 | 10-16 |
| M20C | 13-18 | RS20C | 13-18 | LS20 | 13-18 |
| M21C | 17-23 | RS21C | 17-23 | LS21 | 17-23 |
| M22C | 20-25 | RS22C | 20-25 | LS22 | 20-25 |
| M32C | 24-32 | RS32C | 24-32 | ||
The rated power of three-phase electromtor controlled by breaker(GV2 motor circuit bereaker)
| The adjusting range of rated current ie(a) | The standard power of three-phase electromotor KW.AC-350HZ/60HZ | |||||
| 230/240V | 400V | 415V | 440V | 500V | 690V | |
| 0.1-0.16 | - | - | - | - | - | - |
| 0.16-0.25 | - | - | - | - | - | - |
| 0.25 - 0.4 | - | - | - | - | - | - |
| 040- 0.63 | - | - | - | - | - | 0.37 |
| 0.63 -1 | - | - | - | 0.37 | 0.37 | 0.55 |
| 1 - 1.6 | - | 0.37 | - | 0.55 | 0.75 | 1.1 |
| 1.6-2.5 | 0.7 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
| 2.5-4 | 0.75 | 1.5 | 1.5 | 1.5 | 22 | 3 |
| 4-6.3 | 1.1 | 2.2 | 2.2 | 3 | 37 | 4 |
| 6-10 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 |
| 9-14 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 |
| 13-18 | 4 | 7.5 | 9 | 9 | 9 | 11 |
| 17-23 | 5.5 | 11 | 11 | 11 | 11 | 15 |
| 20-25 | 5.5 | 11 | 11 | 11 | 15 | 18.5 |
| 24-32 | 7.5 | 15 | 15 | 15 | 185 | 23 |
The disjointnig current commuting value of breaker in instant magnetic field.(Refer to table 3)
| Rated current I nA | The adjusting range commuting current for coponents A. | The drsjointing current commutrng value in instant field I nA |
| 0.16 | 0.1 -0.16 | 1.5 |
| 0.25 | 0.16-0.25 | 2.4 |
| 0.4 | 0.25 - 0.4 | 5 |
| 0.63 | 0.4 - 0 63 | 8 |
| 1 | 0.63-1 | 13 |
| 1.6 | 1 -1.6 | 22.5 |
| 2.5 | 1.6-2.5 | 33.5 |
| 4 | 2.5-4 | 51 |
| 6.3 | 4-6.3 | 78 |
| 10 | 6-10 | 138 |
| 14 | 9-14 | 170 |
| 18 | 13-18 | 223 |
| 23 | 17-23 | 327 |
| 25 | 20-25 | 327 |
| 32 | 24-32 | 416 |
