Product Details:
|
| Main Circuit Rating Voltage: | 36V To 440V | Installation: | Rail Or Screw |
|---|---|---|---|
| Frequency: | AC50/60Hz | Color: | Black And White |
| Number Of Pole: | 3 | Phase: | 3 |
| High Light: | D40 AC Contactor 3 Phase,Coil Ac Magnetic Contactor,220V 9A AC Electric Contactor |
||

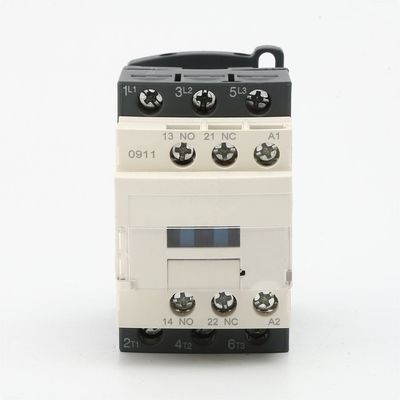

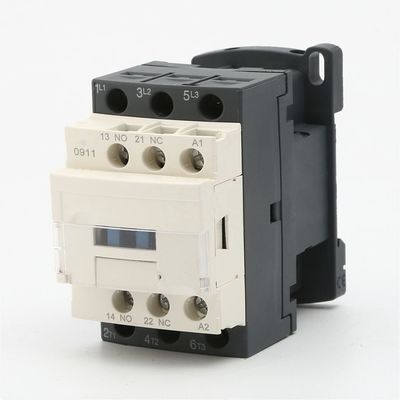

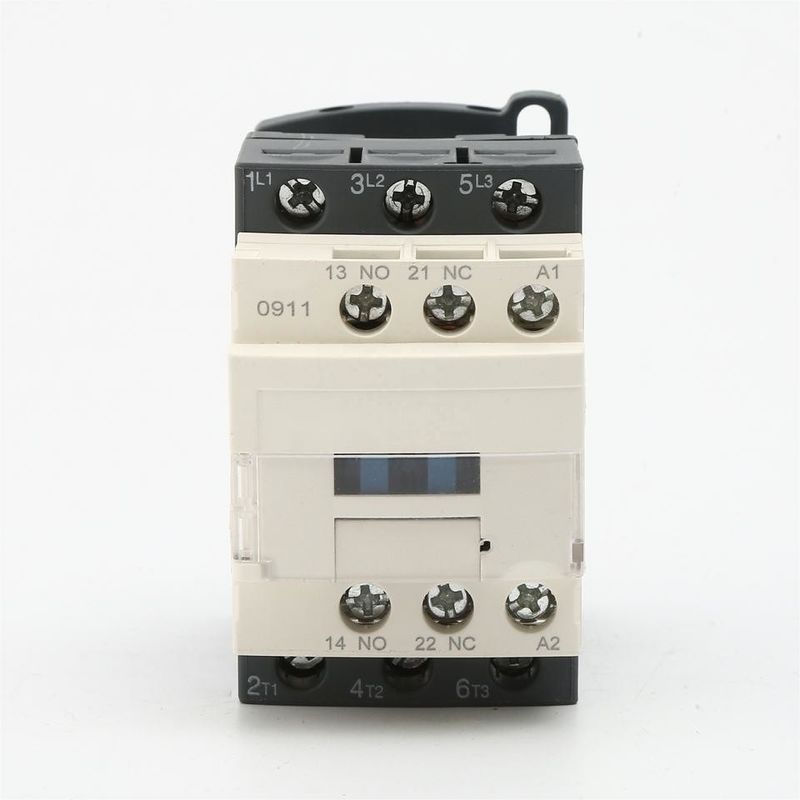

LC1 D09 D18 D32 D40 AC Contactor 3 Phase 220V 9A 380V Coil Ac Magnetic Contactor
Genaral details:
Main parameters and Technical Performance:
| Type | SC1-09 | SC1-12 | SC1-18 | SC1-25 | SC1-32 | ||
| Rated heating current (A) | 20 | 20 | 25 | 32 | 40 | ||
| Rated insulation voltage (V) | 690 | ||||||
| Rated impact withstand voltage (KV) | 6 | ||||||
| Rated making capacity | 10le | ||||||
| Rated breaking capacity | 8le | ||||||
| Poles | 3 | ||||||
| Auxiliary contact | 1NO + 1NC | ||||||
| Short-time withstand current(A) | 10S | 72 | 96 | 144 | 200 | 256 | |
| AC-3 Rated working current(A) |
220V/230V | 9 | 12 | 18 | 25 | 32 | |
| 380V/400V | 9 | 12 | 18 | 25 | 32 | ||
| 660V/690V | 6.5 | 8.9 | 12 | 18 | 22 | ||
| AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW |
220V/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | |
| 380V/400V | 4 | 5.5 | 7.5 | 11 | 15 | ||
| 660V/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
| Operation frequency (times/h) | Electrical life | 1200 | 600 | ||||
| Mechanical life | 3600 | ||||||
| AC-3 Electrical life (10000/times) | 100 | 100 | 100 | 100 | 80 | ||
| Mechanical life (10000/times) | 1000 | 1000 | 1000 | 1000 | 800 | ||
| Equipped fuse type | RT16-20 | RT16-20 | RT16-32 | RT16-40 | RT16-50 | ||
| Rated control supply voltage Us(V) | 50/60Hz | 12～480 | |||||
| Operation range | Pull-in | (85%～110%)Us +40℃ | |||||
| Releasing | (20%～75%)Us -5℃ | ||||||
| Ac coil average power(VA) | Start | 70 | 110 | ||||
| Keeping | 8 | 11 | |||||
| Power efficiency class | class 3 | ||||||
| Thermal loss(W) | 2～3 | 3～4 | |||||
| Actuation time(ms) | Close | 12～35 | |||||
| Break | 5～20 | ||||||
| Main circuit wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1.5～6 | 1.5～10 | 2.5～10 |
| 2 sticks | 1～4 | 1～4 | 1.5～6 | 1.5～6 | 2.5～10 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～6 | 1～6 | 1～10 | |
| 2 sticks | 1～2.5 | 1～2.5 | 1～4 | 1～4 | 1.5～6 | ||
| Hard wire (㎟) | 1 stick | 1～4 | 1～4 | 1.5～6 | 1.5～6 | 1.5～10 | |
| 2 sticks | 1～4 | 1～4 | 1.5～6 | 1.5～6 | 2.5～10 | ||
| Fastening screw size | M3.5 | M4 | |||||
| Tightening fastening torque (N.m) | 0.8 | 1.2 | |||||
| Control loop wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | ||
| Hard wire (㎟) | 1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| Fastening screw size | M3.5 | ||||||
| Tightening fastening torque (N.m) | 0.8 | ||||||
Appearance and Installation Dimension:
Installation dimension:
| Type | A max | B max | C max | a | b | ∅ |
| SC1-09～18 | 45 | 77 | 86 | 35 | 50/60 | 4.5 |
| SC1-25～32 | 45 | 85 | 92 | 35 | 60/70 | 4.5 |
| SC1-40～65 | 75 | 127 | 119 | 40 | 100/110 | 6.5 |
| SC1-80～95 | 85 | 127 | 130 | 40 | 100/110 | 6.5 |
FAQ:
1. How long does it take to get a reply after sending an inquiry?
We will reply within 24 hours, even at the weekend or holidays.
2. Is OEM/ODM pack available?
Yes, OEM/ODM packs are welcome. We are professional on OEM/ODM work.
3.Do you offer samples if we want to test?
Yes, we can offer free sample, but you should afford the shipping cost.
4.Do you have inspection procedures for products?
Our products100% self-inspection and testing before packing.
5.How about delivery time of the order?
15-20 days after getting deposit.
