Product Details:
|
| Number Of The Contact: | 3P+NC+NO | Main Circuit Rating Voltage: | AC 24V 48V 110V 220V 380V 440V |
|---|---|---|---|
| Installation: | Rail Or Screw | Ue: | Ac 24 36 110 220 380V |
| Frequency: | AC50/60Hz | Color: | Black And White |
| High Light: | Motor Control AC Electric Contactor,24V AC Electric Contactor,60Hz AC Electric Contactor |
||

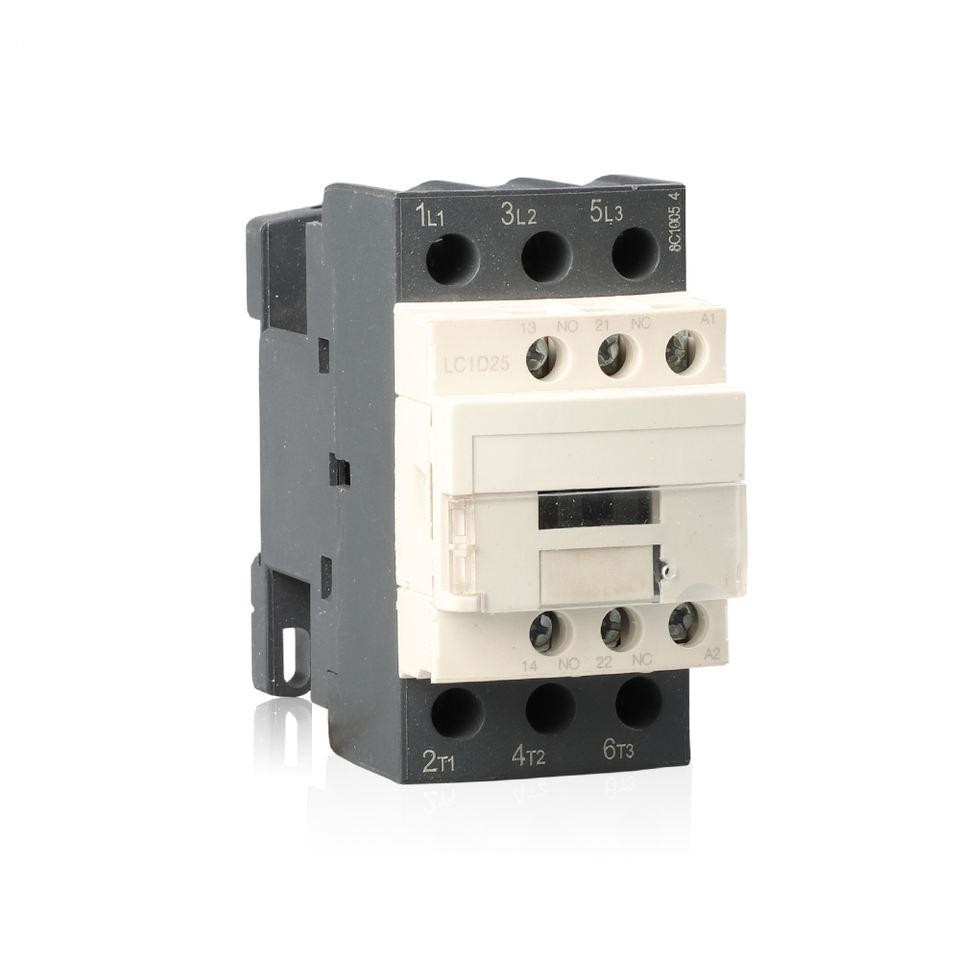

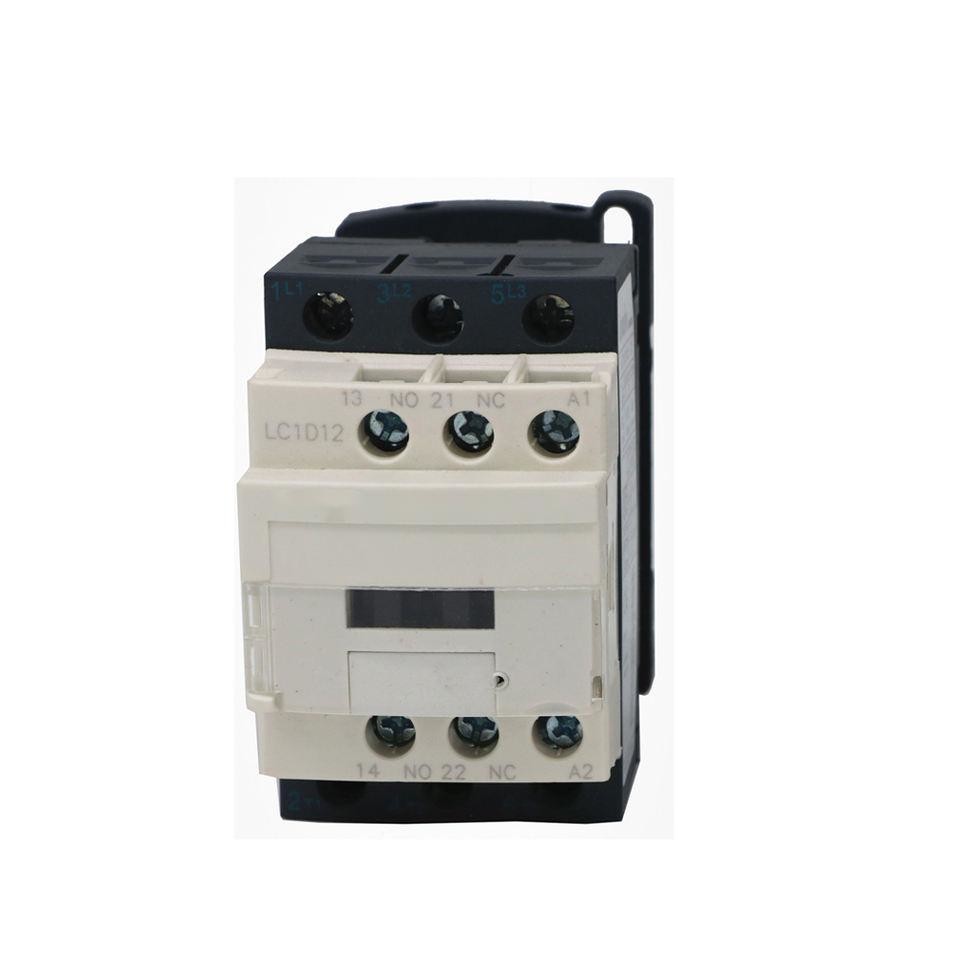

Motor Control AC Contactor 18A 3 Phase 24V 110V 220V 380V 50 60Hz Coil in Contactors
Genaral details:
Model and Implication:
Main parameters and Technical Performance:
| Type | SC1-09 | SC1-12 | SC1-18 | SC1-25 | SC1-32 | ||
| Rated heating current (A) | 20 | 20 | 25 | 32 | 40 | ||
| Rated insulation voltage (V) | 690 | ||||||
| Rated impact withstand voltage (KV) | 6 | ||||||
| Rated making capacity | 10le | ||||||
| Rated breaking capacity | 8le | ||||||
| Poles | 3 | ||||||
| Auxiliary contact | 1NO + 1NC | ||||||
| Short-time withstand current(A) | 10S | 72 | 96 | 144 | 200 | 256 | |
| AC-3 Rated working current(A) |
220V/230V | 9 | 12 | 18 | 25 | 32 | |
| 380V/400V | 9 | 12 | 18 | 25 | 32 | ||
| 660V/690V | 6.5 | 8.9 | 12 | 18 | 22 | ||
| AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW |
220V/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | |
| 380V/400V | 4 | 5.5 | 7.5 | 11 | 15 | ||
| 660V/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
| Operation frequency (times/h) | Electrical life | 1200 | 600 | ||||
| Mechanical life | 3600 | ||||||
| AC-3 Electrical life (10000/times) | 100 | 100 | 100 | 100 | 80 | ||
| Mechanical life (10000/times) | 1000 | 1000 | 1000 | 1000 | 800 | ||
| Equipped fuse type | RT16-20 | RT16-20 | RT16-32 | RT16-40 | RT16-50 | ||
| Rated control supply voltage Us(V) | 50/60Hz | 12～480 | |||||
| Operation range | Pull-in | (85%～110%)Us +40℃ | |||||
| Releasing | (20%～75%)Us -5℃ | ||||||
| Ac coil average power(VA) | Start | 70 | 110 | ||||
| Keeping | 8 | 11 | |||||
| Power efficiency class | class 3 | ||||||
| Thermal loss(W) | 2～3 | 3～4 | |||||
| Actuation time(ms) | Close | 12～35 | |||||
| Break | 5～20 | ||||||
| Main circuit wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1.5～6 | 1.5～10 | 2.5～10 |
| 2 sticks | 1～4 | 1～4 | 1.5～6 | 1.5～6 | 2.5～10 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～6 | 1～6 | 1～10 | |
| 2 sticks | 1～2.5 | 1～2.5 | 1～4 | 1～4 | 1.5～6 | ||
| Hard wire (㎟) | 1 stick | 1～4 | 1～4 | 1.5～6 | 1.5～6 | 1.5～10 | |
| 2 sticks | 1～4 | 1～4 | 1.5～6 | 1.5～6 | 2.5～10 | ||
| Fastening screw size | M3.5 | M4 | |||||
| Tightening fastening torque (N.m) | 0.8 | 1.2 | |||||
| Control loop wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | ||
| Hard wire (㎟) | 1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| Fastening screw size | M3.5 | ||||||
| Tightening fastening torque (N.m) | 0.8 | ||||||
Appearance and Installation Dimension:
Installation dimension:
| Type | A max | B max | C max | a | b | ∅ |
| SC1-09～18 | 45 | 77 | 86 | 35 | 50/60 | 4.5 |
| SC1-25～32 | 45 | 85 | 92 | 35 | 60/70 | 4.5 |
| SC1-40～65 | 75 | 127 | 119 | 40 | 100/110 | 6.5 |
| SC1-80～95 | 85 | 127 | 130 | 40 | 100/110 | 6.5 |
