230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Electrical Plug
Application: Industrial
Poles: 3P, 4P, 5P
Protection Degree: IP67
Grounding Level: 6h
Material: Plastic
Place Of Origin: Wenzhou, China
Frequency: 50Hz/60Hz
High Light:

230V 32 amp 3 pin plug

,

IEC 32 amp 3 pin plug and socket

,

IEC 230v industrial plug

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE, ROHS
Model Number: YG0132-4/YG0232-4, YG-0132/YG0232, YG0142/YG0242, YG0152/YG0252
Payment & Shipping Terms
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

IP67 230V 32A 3 Pin Industrial Electrical Plugs Sockets IEC Standard Grounding

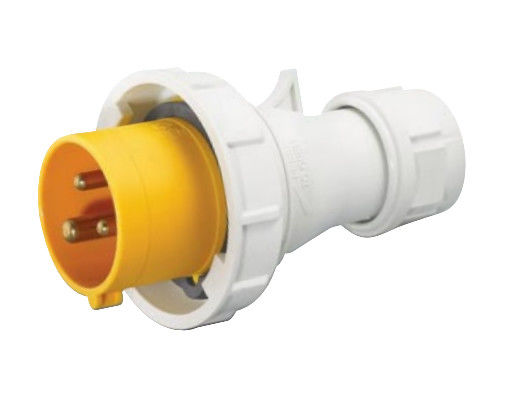

230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 0

Current(A): 16A/32A

Voltage(V):110-130V ~

Poles: 2P+E

Code: YG0132-4, YG0232-4

Protection degree:IP67



Earth contact position 4h
Rated current (A) 16 32
Pole 3
Dimension(mm) a 118 146
b 82 100
c 47 63
d 6-15 10-20
sw 38 50
Cable nominal cross-section area (㎟) 1-2.5 2.5-6



230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 1

------------------------------------------------------------------------------

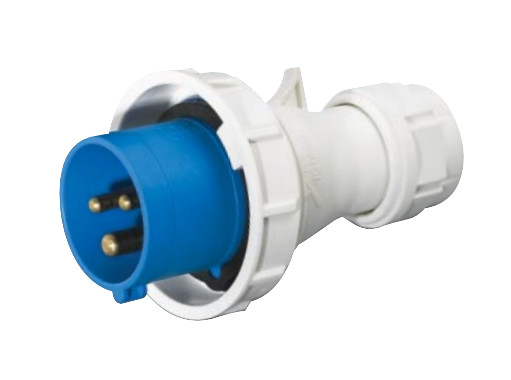

230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 2

Current(A): 16A/32A

Voltage(V):220-240V ~

Poles: 3P+E

Code: YG0132, YG0232

Protection degree:IP67



Earth contact position 6h
Rated current (A) 16 32
Pole 3
Dimension(mm) a 118 146
b 82 100
d 6-15 10-20
sw 38 50
Cable nominal cross-section area (㎟) 1-2.5 2.5-6



230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 1



---------------------------------------------------------------------------------------------------

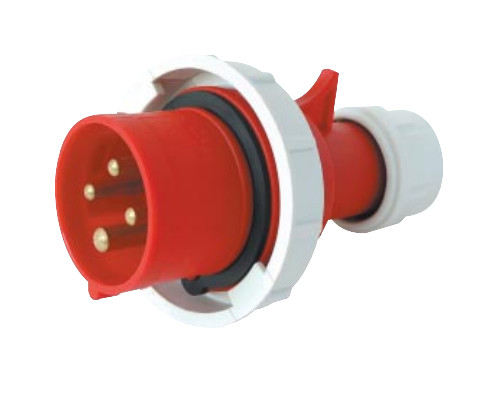

230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 4

Current(A): 16A/32A

Voltage(V):380-415V~

Poles: 3P+E

Code: YG0142, YG0242

Protection degree:IP67



Earth contact position 6h
Rated current (A) 16 32
Pole 4
Dimension(mm) a 124 146
b 79 93
d 6-15 10-20
sw 38 50
Cable nominal cross-section area (㎟) 1-2.5 2.5-6



230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 1

--------------------------------------------------------------------

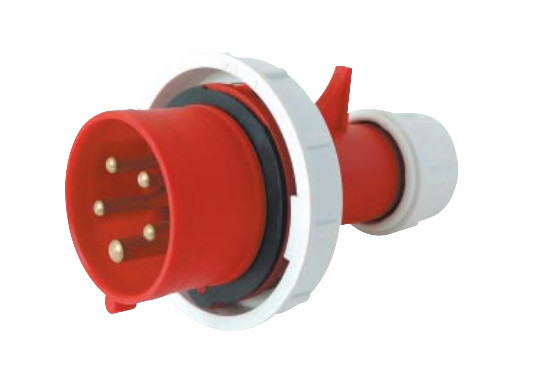

230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 6

Current(A): 16A/32A

Voltage(V):220-38V~ / 240-415V~

Poles: 3P+N+E

Code: YG0152, YG0252

Protection degree:IP67



Earth contact position 6h
Rated current (A) 16 32
Pole 5
Dimension(mm) a 131 152
b 87 100
d 8-16 10-20
sw 42 50
Cable nominal cross-section area (㎟) 1-2.5 2.5-6



230V 32 Amp 3 Pin Plug And Socket IEC Standard Grounding 1



Other products:

Like Household AC contactor, Electrical AC contactor, magnetic starter and so on....
