Ip67 16 Amp 3 Pin Industrial Socket Female Angled Panel Mounting
Application:
Industrial sockets have easy installation, long life and high reliability characteristics. They are widely used in the machine industry,crane industry, construction industry, trains and cars.
The cases and inlets are made of high-grade plastic nylon 66. The material has extremely good insulation ability and it is unbreakable, wearable long-time durable up to +120°C, resistant against oil, gasoline and salt water, almost non-aging,extremely cold-proof and splash-proof.

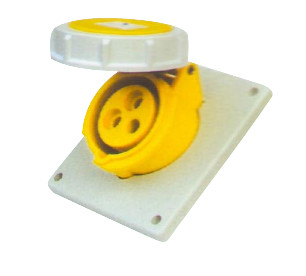

Current(A): 16A/32A
Voltage(V):110-130V ~
Poles: 2P+E
Code: YG4132-4, YG4232-4
Protection degree:IP67
| Earth contact position | 4h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 93 | 93 |
| b | 101 | 101 | |
| c | 78 | 78 | |
| d | 86 | 86 | |
| e | 33 | 40 | |
| f | 52 | 63 | |
| g | 70 | 72 | |
| h | 77 | 83 | |
| i | 5.5 | 5.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
------------------------------------------------------------------------------

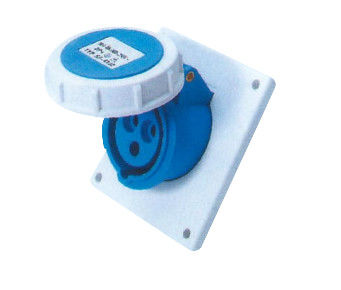

Current(A):16A/32A
Voltage(V):220-240V ~
Poles: 2P+E
Code: YG4132, YG4232
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 93 | 93 |
| b | 101 | 101 | |
| c | 78 | 78 | |
| d | 86 | 86 | |
| e | 33 | 40 | |
| f | 52 | 63 | |
| g | 70 | 72 | |
| h | 77 | 83 | |
| i | 5.5 | 5.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
---------------------------------------------------------------------------------------------------

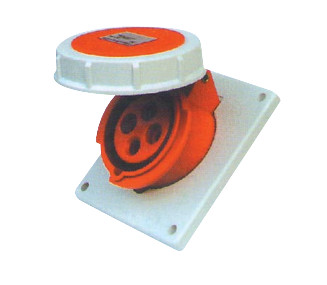

Current(A): 16A/32A
Voltage(V):380-415V~
Poles: 3P+E
Code: YG4142, YG4242
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 93 | 93 |
| b | 101 | 101 | |
| c | 78 | 78 | |
| d | 86 | 86 | |
| e | 33 | 40 | |
| f | 52 | 63 | |
| g | 70 | 72 | |
| h | 77 | 83 | |
| i | 5.5 | 5.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
------------------------------------------------------------------------------------------------------

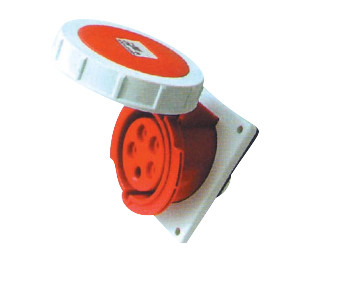

Current(A): 16A/32A
Voltage(V):220-380V~/240-415V~
Poles: 3P+N+E
Code: YG4152, YG4252
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 93 | 93 |
| b | 101 | 101 | |
| c | 78 | 78 | |
| d | 86 | 86 | |
| e | 33 | 40 | |
| f | 52 | 63 | |
| g | 70 | 72 | |
| h | 78 | 83 | |
| i | 5.5 | 5.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
