2P PE Industrial Power Sockets 3P+ E 3P+ N +E IP67 Waterproof 125A Inclined Utensil
Application of industrial socket:
Industrial socket connector is a new generation connector appratus for power connecting, has the features such as security & reliability.
They are used widly in the place such as petrochemical processing, electric power, electronic and so on

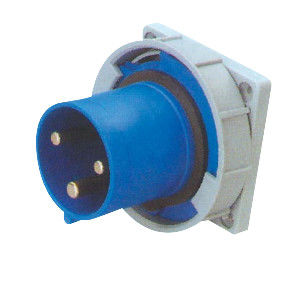

Current(A): 63A/125A
Voltage(V):220-240V ~
Poles: 2P+E
Code: YG633, YG643
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 100 | 120 |
| b | 81 | 100 | |
| c | 20 | 22 | |
| d | 108 | 102 | |
| e | 109 | 124 | |
| f | 75 | 100 | |
| g | 6.5 | 6.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
------------------------------------------------------------------------------

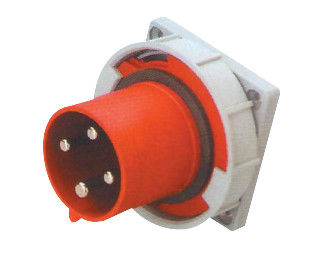

Current(A):63A/125A
Voltage(V):380-415V ~
Poles: 3P+E
Code: YG634, YG644
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 100 | 120 |
| b | 81 | 100 | |
| c | 20 | 22 | |
| d | 108 | 102 | |
| e | 109 | 124 | |
| f | 75 | 100 | |
| g | 6.5 | 6.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 |
|
---------------------------------------------------------------------------------------------------

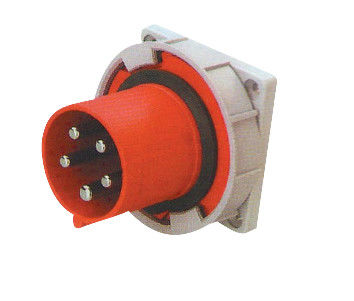

Current(A): 63A/125A
Voltage(V):220-380V / 240-415V~
Poles: 3P+N+E
Code: YG635, YG645
Protection degree:IP67
| Earth contact position | 6h | ||
| Rated current (A) | 63 | 125 | |
| Pole | 3 | ||
| Dimension(mm) | a | 100 | 120 |
| b | 81 | 100 | |
| c | 20 | 22 | |
| d | 108 | 102 | |
| e | 109 | 124 | |
| f | 75 | 100 | |
| g | 6.5 | 6.5 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 |
|
