Product Details:
|
| Feature: | Waterproof,Durable, Safe | Poles: | 3P, 4P, 5P |
|---|---|---|---|
| Protection Degree: | IP44 | Grounding: | Standard Grounding |
| Certificate: | CE, ROHs | Material: | Plastic + Cooper |
| Current: | 16A/32A | Type: | IP44 Industrial Panel Mounting Angled Socket |
| High Light: | 16 Amp Industrial Power Sockets,Industrial Power Sockets 220V,32A Electric Industrial Socket |
||

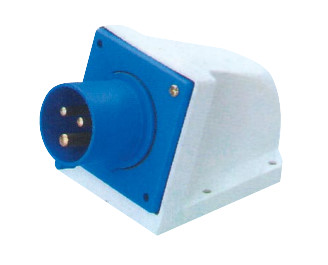

IP44 Industrial 16Amp 220V Waterproof Socket 32A Electric Industrial Socket
Current(A): 16A/32A
Voltage(V):220-240V ~
Poles: 2P+E
Code: YG513, YG523
Protection degree:IP44
| Earth contact position | 6h | ||
| Rated current (A) | 16 | 32 | |
| Pole | 3 | ||
| Dimension(mm) | a | 121 | 131 |
| b | 76 | 83 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
------------------------------------------------------------------------------

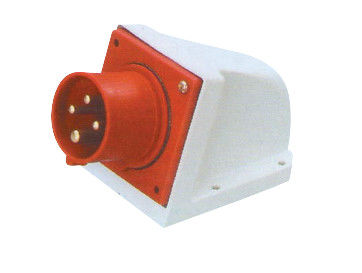

Current(A):16A/32A
Voltage(V):380-415V ~
Poles: 3P+E
Code: YG514, YG524
Protection degree:IP44
| Earth contact position | 6h | ||
| Rated current (A) | 16 | 32 | |
| Pole | 4 | ||
| Dimension(mm) | a | 121 | 131 |
| b | 76 | 83 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
---------------------------------------------------------------------------------------------------

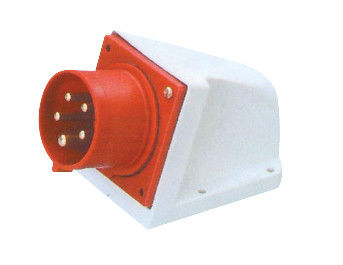

Current(A): 16A/32A
Voltage(V):220-380V / 240-415V~
Poles: 3P+N+E
Code: YG515, YG525
Protection degree:IP44
| Earth contact position | 6h | ||
| Rated current (A) | 16 | 32 | |
| Pole | 5 | ||
| Dimension(mm) | a | 123 | 132 |
| b | 79 | 86 | |
| Cable nominal cross-section area (㎟) | 1-2.5 | 2.5-6 | |
