Product Details:
|
| Color: | White | Electric Rating: | 25A,40A,63A,100A |
|---|---|---|---|
| Electrical Life: | 100000 | Mechanical Life: | 1000000 |
| Ui: | 500V | Usage Occasion: | Household, Hotels, Apartment |
| Coil: | AC | Ambient Temperature: | -5℃～+40 ℃ |
| OEM: | Available | Utilization Category: | AC-1,AC-7a,AC-7b |
| High Light: | 2NO Remote Control Contactor,AC Remote Control Contactor,AC 2 pole 40 amp contactor |
||

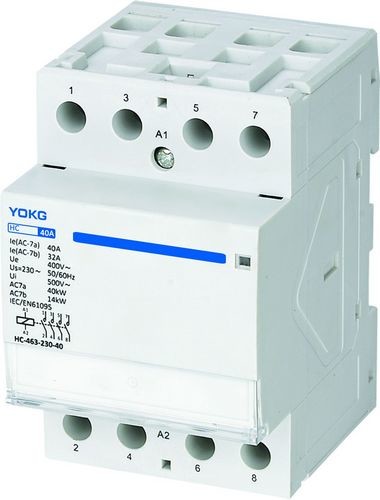

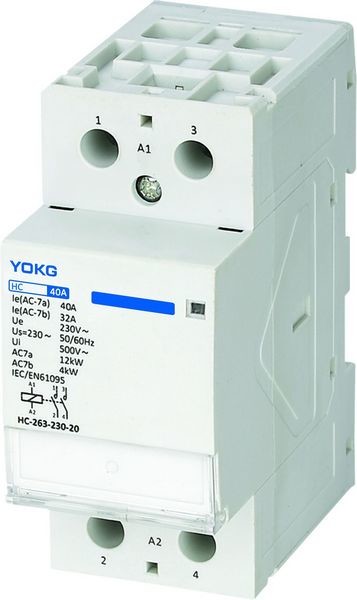

Remote Control 2P 4 poles 40A 110V Modular AC Contactor 2NO 240V Household Contactor
General:
| Brand Name | YOKG |
| Electricity Type | mini AC Contactor |
| Number of Pole | 2/4 |
| Main Circuit Rating Voltage | 24VAC,48VAC,110VAC, 230VAC |
| Main Circuit Rating Current | 40A |
| Standard | IEC/EN61095 |
| OEM | Avaiable |
| Utilization category | AC-1,AC-7a,AC-7b |
| Mounting | On Din rail TH35-7.5 mounting rail installation |
| Rated frequency | 50/60 Hz |
| Material | High Standard Plastic Silver Copper |
| Protection degree | IP20 |
| Ambient air temperature | -5～+40℃ |
| Pollution degree | Class 2 |
| Installation category | II |
| Protection degree | IP20 |
Products:
♦ Contactors are modular control appliances of novel structure, small volume. Its characteristic includes din-rail installation, modular size, beautiful design, and safety. It can apply inversion structure and be combined with mini circuit breaker in lighting box.
♦ It applies good insulation material, which improve the safety index.
♦ It has good appearance and low noise and is suitable for hotel and hospital, etc.
HC Home Contactor Order Code:
| 40A | 2P | 4P |
| 24V | HC-240-24-10 | HC-440-24-30 |
| HC-240-24-20 | HC-440-24-40 | |
| HC-240-24-11 | HC-440-24-31 | |
| HC-240-24-02 | HC-440-24-22 | |
| HC-440-24-04 | ||
| 48V | HC-240-48-10 | HC-440-48-30 |
| HC-240-48-20 | HC-440-48-40 | |
| HC-240-48-11 | HC-440-48-31 | |
| HC-240-48-02 | HC-440-48-22 | |
| HC-440-48-04 | ||
| 110V | HC-240-110-10 | HC-440-110-30 |
| HC-240-110-20 | HC-440-110-40 | |
| HC-240-110-11 | HC-440-110-31 | |
| HC-240-110-02 | HC-440-110-22 | |
| HC-440-110-04 | ||
| 230V | HC-240-230-10 | HC-440-230-30 |
| HC-240-230-20 | HC-440-230-40 | |
| HC-240-230-11 | HC-440-230-31 | |
| HC-240-230-02 | HC-440-230-22 | |
| HC-440-230-04 |
