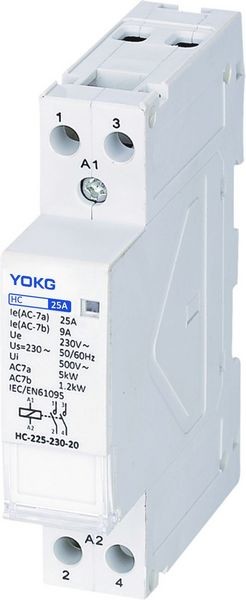

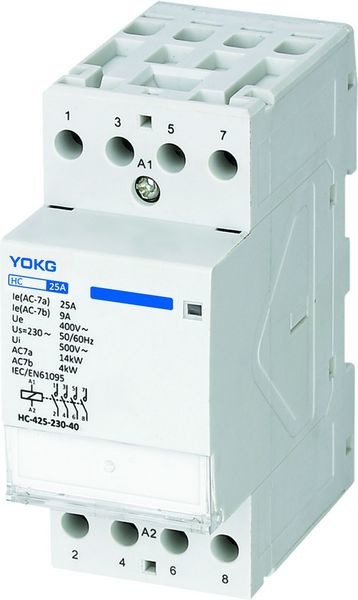

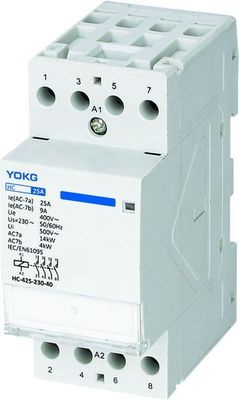

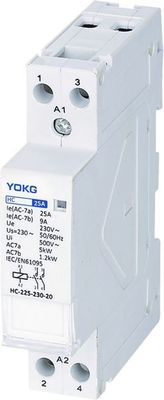

Plastic Silver Copper Modular Contactor 2P 4P 25A 48V 230V For Lighting Control System
System Application:
♦ HC Series AC household contactor (hereinafter contactor) is suitable for using in the circuits up to the rated working voltage 400 V AC 50 HZ (or 60 HZ) , rated working current up to 63A, to control household electric appliances and low inductive reactance load and micro inductive reactance load of similar usage, can also bounded to control household motor load of which the controlling power needs to be relatively decreased.
♦ This products applies to places such as household, hotels, apartments, etc to realize the automation of large-scale produced household electric appliances.
♦ In compliance with IEC61095, GB17885
Model and Definition:
Normal Operating Conditions and Installation Condition:
♦ The ambient air temperature: -5～+40℃, Average not more than +35℃ within 24 hours.
♦ Altitude(m): Not exceed 2000 meters
♦ Atmospheric conditions: When the highest temperature is +40℃, the air relative humidity should not be higher than 50%. The higher relative humidity should be allowed at the lower temperature, for instance, 90% humidity when 20 ℃. Special measures should be taken when condensate dew happens occasionally due to temperature changes.
♦ Pollution degree: Class 2
♦ Installation category: II
♦ Mounting: On Din rail TH35-7.5 mounting rail installation
♦ Protection degree: IP20
General:
| OEM | Avaiable |
| Utilization category | AC-1,AC-7a,AC-7b |
| Mounting | On Din rail TH35-7.5 mounting rail installation |
| Rated frequency | 50/60 Hz |
| Material | High Standard Plastic Silver Copper |
| Protection degree | IP20 |
| Mechniacal life | Electrical life 100000,Mechanical life 1000000 |
| Electric rating | up to 25A,40A,63A,100A |
| Standard | IEC/EN 61095 |
Appointed operation performance:
| Making and breaking condition | ||||||
| Utilization category | Ic/Ie | Ur/Ue | cos Φ | making time (a) s |
interval time s |
operation cycle times |
| AC-7a | 1.0 | 1.05 | 0.80 | 0.05 | 10 | 30 000 |
| AC-7b | (c) | (b) | 0.45 | 0.05 | 10 | 30 000 |
| (a) If contact has closed completely before breaking again, the making time is allowed less than 0.05s. (b) For making opertion Ur/Ue=1.0, for breaking operation Ur/Ue=0.17 (c) For making operation Ic/Ie=6.0 , for breaking operation Ic/Ie=1.0 |
||||||
Making and breaking Capacity:
| Making and breaking condition | ||||||
| Utilization category | Ic/Ie | Ur/Ue | cos Φ | making time (a) s |
interval time s |
operation cycle times |
| AC-7a | 1.5 | 1.05 | 0.80 | 0.05 | 10 | 50 |
| AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 | 50 |
Products:
♦ Contactors are modular control appliances of novel structure, small volume. Its characteristic includes din-rail installation, modular size, beautiful design, and safety. It can apply inversion structure and be combined with mini circuit breaker in lighting box.
♦ It applies good insulation material, which improve the safety index.
♦ It has good appearance and low noise and is suitable for hotel and hospital, etc.
HC Home Contactor Order Code:
| 25A | 2P | 4P |
| 24V | HC-225-24-10 | HC-425-24-30 |
| HC-225-24-20 | HC-425-24-40 | |
| HC-225-24-11 | HC-425-24-31 | |
| HC-225-24-02 | HC-425-24-22 | |
| HC-425-24-04 | ||
| 48V | HC-225-48-10 | HC-425-48-30 |
| HC-225-48-20 | HC-425-48-40 | |
| HC-225-48-11 | HC-425-48-31 | |
| HC-225-48-02 | HC-425-48-22 | |
| HC-425-48-04 | ||
| 110V | HC-225-110-10 | HC-425-110-30 |
| HC-225-110-20 | HC-425-110-40 | |
| HC-225-110-11 | HC-425-110-31 | |
| HC-225-110-02 | HC-425-110-22 | |
| HC-425-110-04 | ||
| 230V | HC-225-230-10 | HC-425-230-30 |
| HC-225-230-20 | HC-425-230-40 | |
| HC-225-230-11 | HC-425-230-31 | |
| HC-225-230-02 | HC-425-230-22 | |
| HC-425-230-04 |
