Detail Information

Installation Category:	III	Contact Material:	Silver OR COPPER
Protection Level:	IP20	Ambient Temperature:	-5℃ To +40℃
Contact Arrangement:	1NO/1NC	Mounting Type:	DIN Rail
Coil Voltage:	24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440V	Current Rating:	6A,9A,12A,16A
Highlight:	220V Mini Contactor AC DC Coil , 24V CJX2-K09 Contactor , CJX2-K16 AC Electric Contactor

Product Description

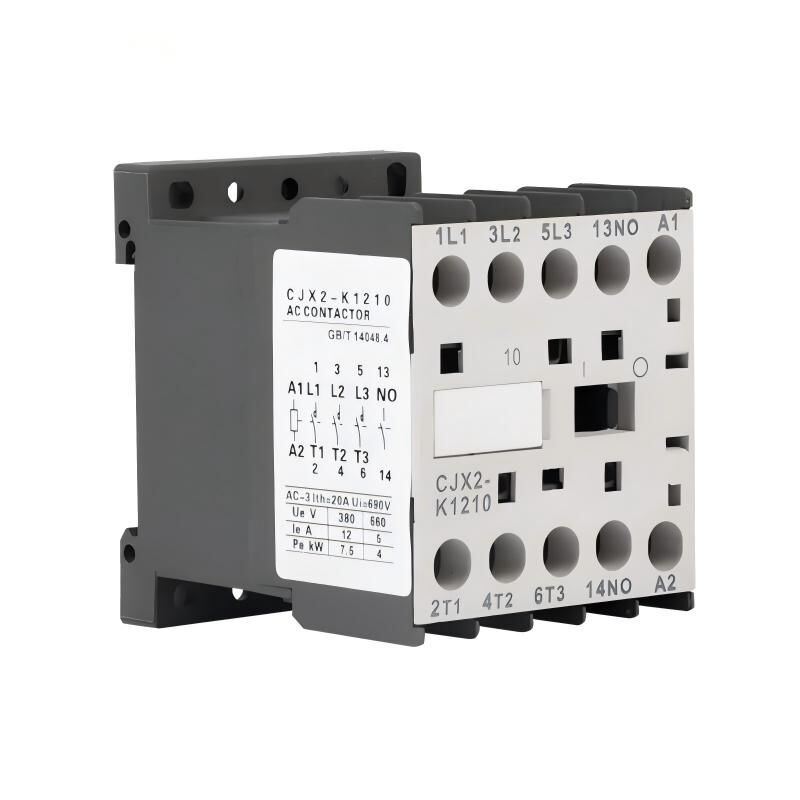

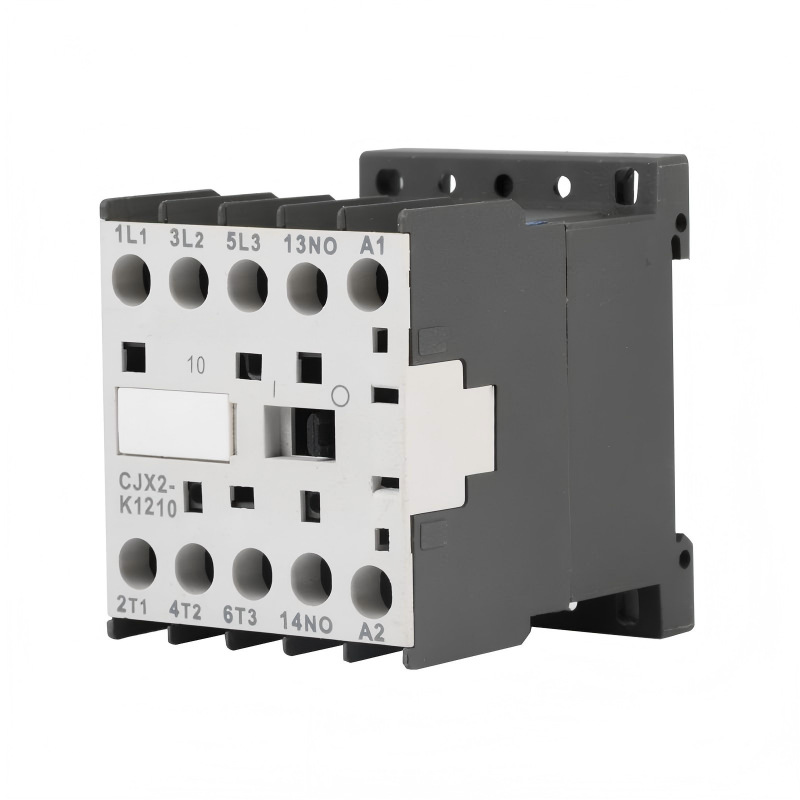

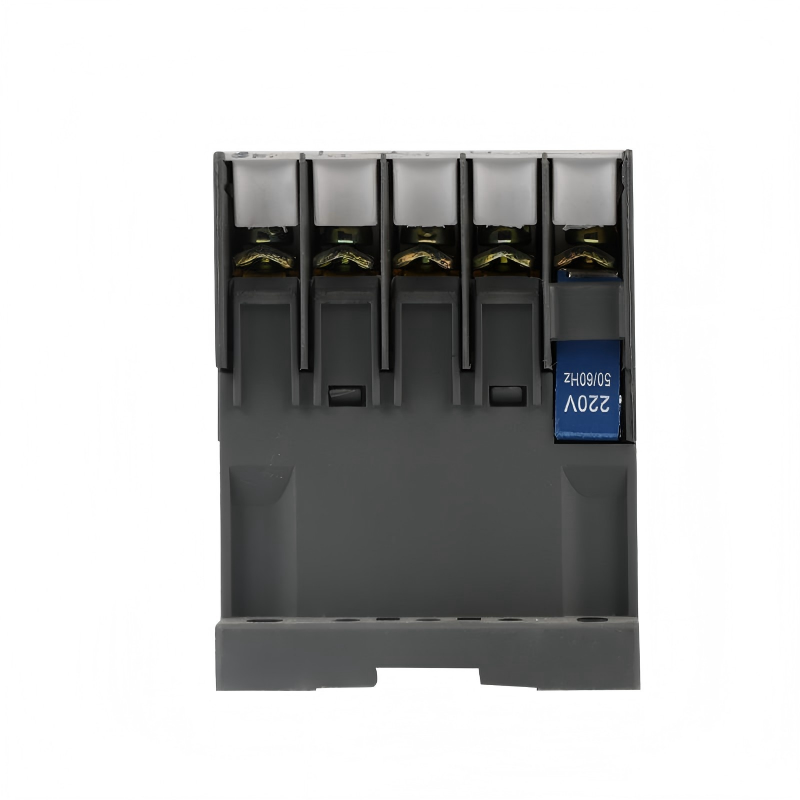

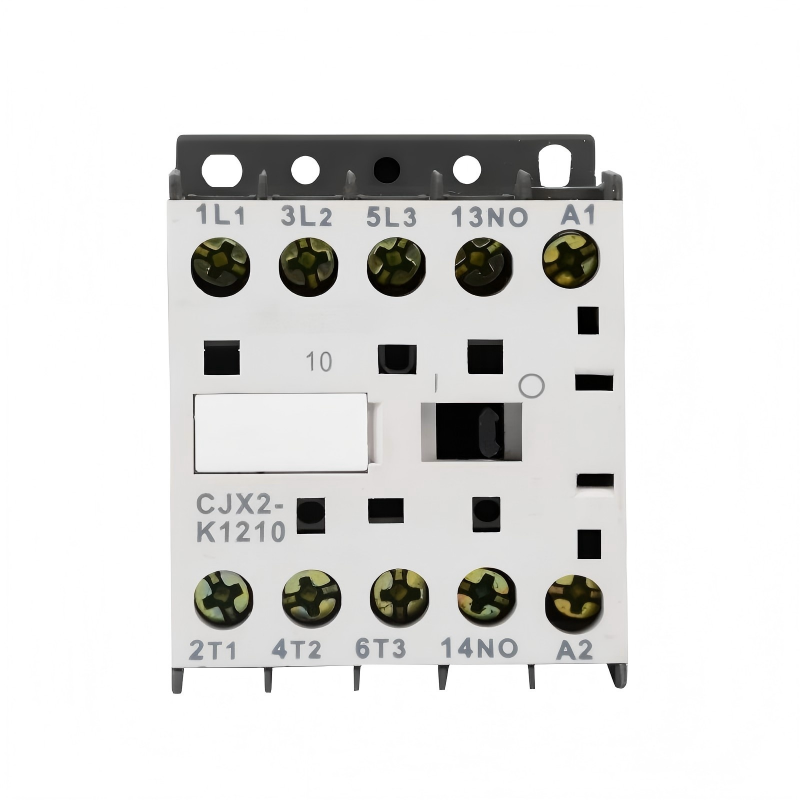

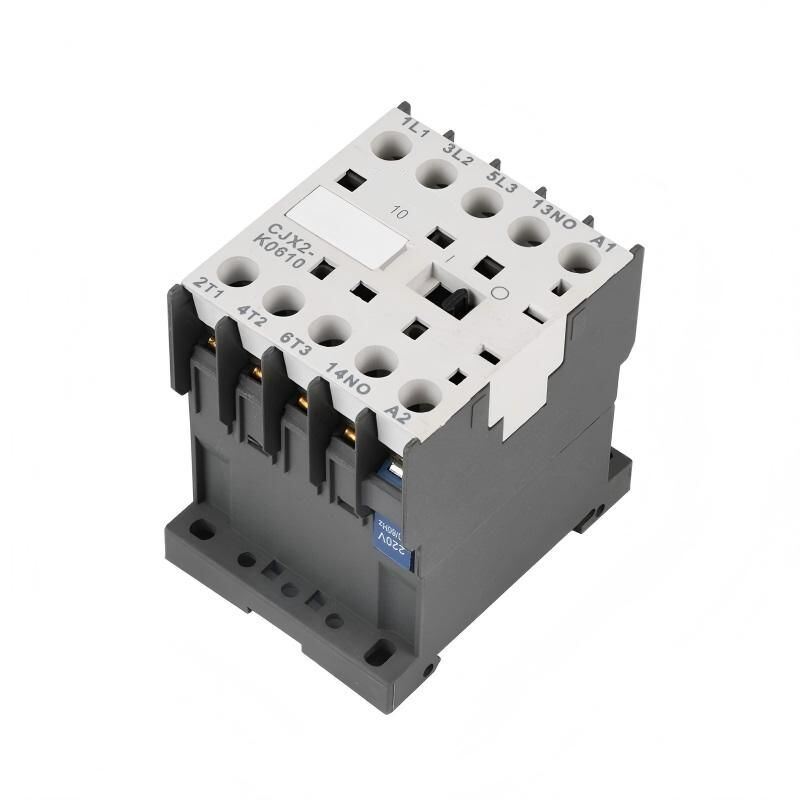

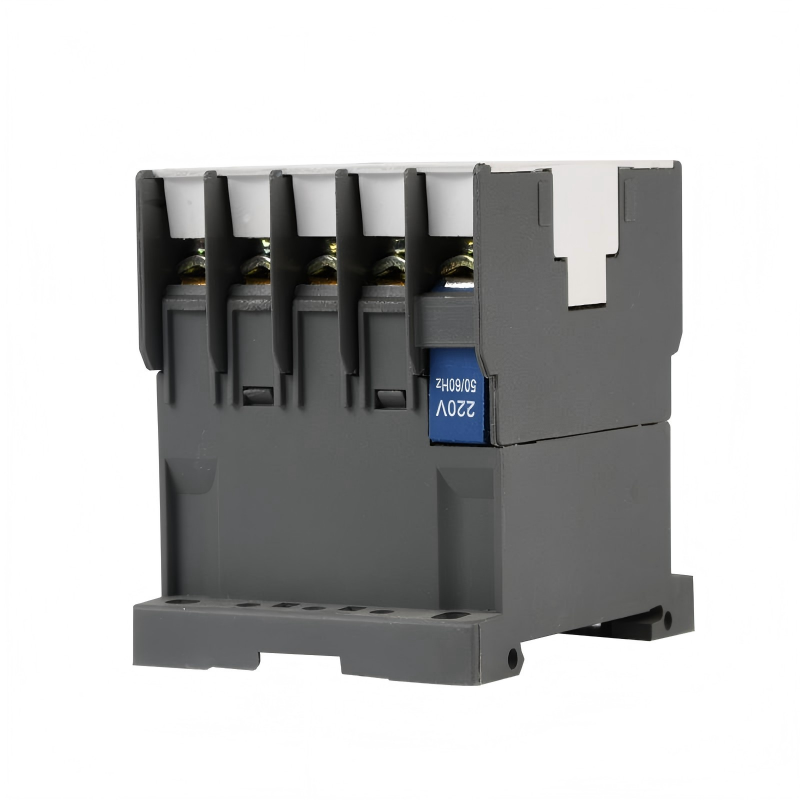

220V Mini Contactor AC DC Coil 24V CJX2-K09 CJX2-K12 CJX2-K16

Product Overview

This 3-phase contactor provides balanced switching across all three phases, ensuring smooth and efficient operation of three-phase motors and equipment. Its compatibility with 50/60Hz frequency systems, wide ambient temperature range, and protective plastic enclosure make it a reliable choice for both indoor and outdoor installations.

Key Features

Product Name: AC Electric Contactor
Mounting Type: DIN Rail
Frequency Rating: 50/60Hz
Coil Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
Number of Poles: 3
Contact Material: Silver or Copper
Includes NC/NO contact configuration
Silver point contactor for enhanced conductivity and durability
Designed as a 3 phase contactor suitable for industrial applications

Technical Specifications

Connection Circuits	Type	CJX2-K06
Coil Voltage(V)	AC 50Hz/60Hz	24,36,48,110,220,230,240,380,400,415,440
Acting Range	Attraction(Hot)	(85%~110%)Us; +40℃
	Release(Cold)	AC:(20%~75%)Us, DC:(10%~75%)Us;-5℃

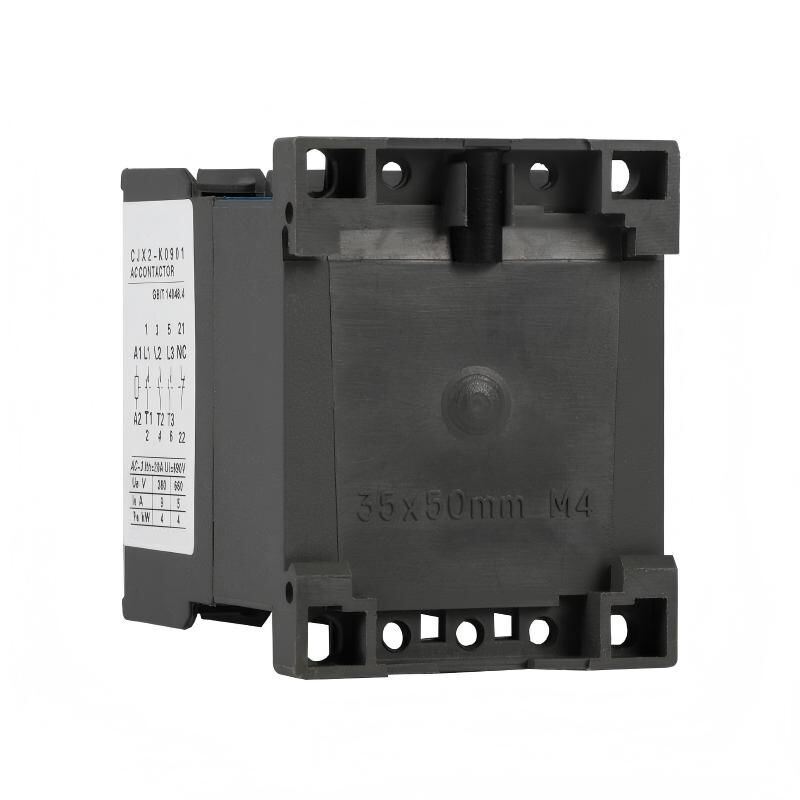

Installation	35mm DIN rail or screw(M4)
Connection	Main Contact	Screw(M3)
	Aux.Contact/Coil	Screw(M3) line-pressed terminal

Applications

These 3 phase contactors are ideal for starting and stopping motors, controlling lighting, heating, and other electrical loads in factories and manufacturing plants. Their robust contact arrangement of 1NO/1NC ensures stable switching operations, which is critical for maintaining the continuity and safety of electrical circuits.

Frequently Asked Questions

What brand manufactures the AC Electric Contactor?

The AC Electric Contactor is manufactured by YOKG, also can be OEM.

What are the available model numbers for this AC Electric Contactor?

The available model numbers are CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.

Where is the AC Electric Contactor produced?

This product is made in China.

What is the minimum order quantity for the AC Electric Contactor?

The minimum order quantity is 100 units.

What payment terms are accepted for purchasing the AC Electric Contactor?

We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) as payment terms.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16

Minimum Order Quantity:	100
Packaging Details:	Each unit be packed in one individual inner box
Payment Terms:	T/T,L/C
