Detail Information

Protection Level:	IP20	Ambient Temperature:	-5℃ To +40℃
Current Rating:	6A,9A,12A,16A	Rated Insulated Voltage Ui:	690V
Installation Category:	III	Contact Material:	Silver OR COPPER
Frequency Rating:	50/60Hz	Number Of Poles:	3
Highlight:	Magnetic DIN rail contactor 24V-380V , Mini AC contactor 50/60Hz , Electric contactor with magnetic mechanism

Product Description

Magnetic K Series DIN Rail Mount Mini Contactor

The AC Electric Contactor is a highly reliable and versatile device designed for controlling electric circuits in industrial and commercial applications. This 3 phase contactor is engineered to provide efficient switching capabilities, making it an essential component in motor control systems, lighting circuits, and other electrical installations that require precise and dependable operation.

Key Features

Product Name: AC Electric Contactor
Coil Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
Current Rating Available: 6A, 9A, 12A, 16A
Enclosure Material: Durable Plastic
Mounting Type: Easy DIN Rail Mounting
Frequency Rating: Supports 50Hz and 60Hz
Silver point contactor for enhanced conductivity and reliability
Robust 3 phase contactor suitable for industrial applications
Efficient performance ensuring stability in electrical circuits

Technical Specifications

General Parameters

Mounting Type	DIN Rail
Protection Level	IP20
Ambient Temperature	-5℃ To +40℃
Enclosure Material	Plastic
Pollution Degree	Class 3
Frequency Rating	50/60Hz
Contact Arrangement	1NO/1NC
Installation Category	III
Coil Voltage	24 / 36 / 48 / 110 / 220 / 230 / 240 / 380 / 400 / 415 / 440 V
Number of Poles	3
Product Type	AC Contactor, Silver Point Contactor

Performance Ratings

Type	CJX2-K06	CJX2-K09	CJX2-K12	CJX2-K16
Rated Power kW/HP(AC-3) IEC60947-4-1
200-240V	1.5/2	2.2/3	3/4	4/5.5
380-440V	2.2/3	4/5.5	5.5/7.5	7.5/10
500-550V	3/4	4/5.5	4/5.5	5.5/7.5
660-690V	3/4	4/5.5	4/5.5	4/5.5
Rated Current A(AC-3) IEC60947-4-1
200-240V	7	9	12	16
380-440V	6	9	12	16
500-550V	5	6	7	9
660-690V	4	5	5	5
Conventional Thermal Current Ith:(A)	20	20	20	20
Rated Insulated Voltage Ui:(V)	690

Auxiliary Contact Specifications

AC-15 Contact Arrangement	Standard: 1NO/1NC
Rated Current A (AC-15) 380-440V	0.95
Conventional Thermal Current Ith:(A)	16

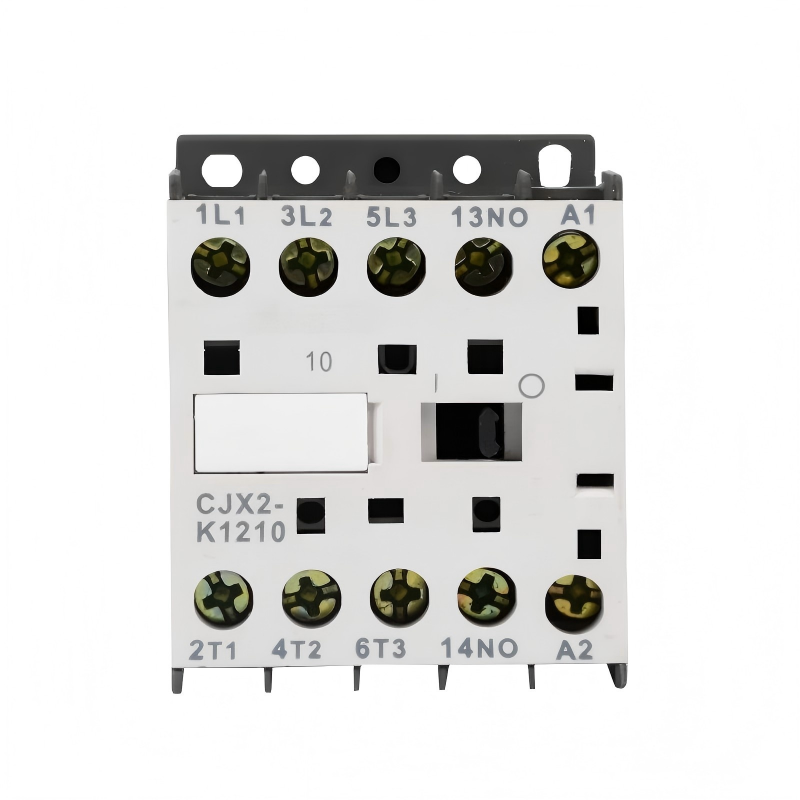

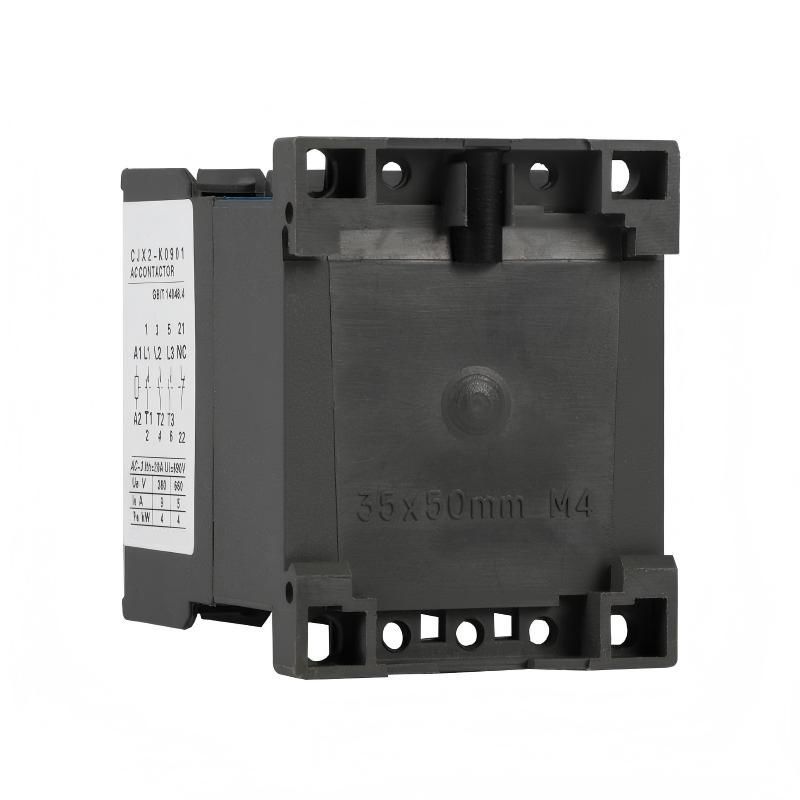

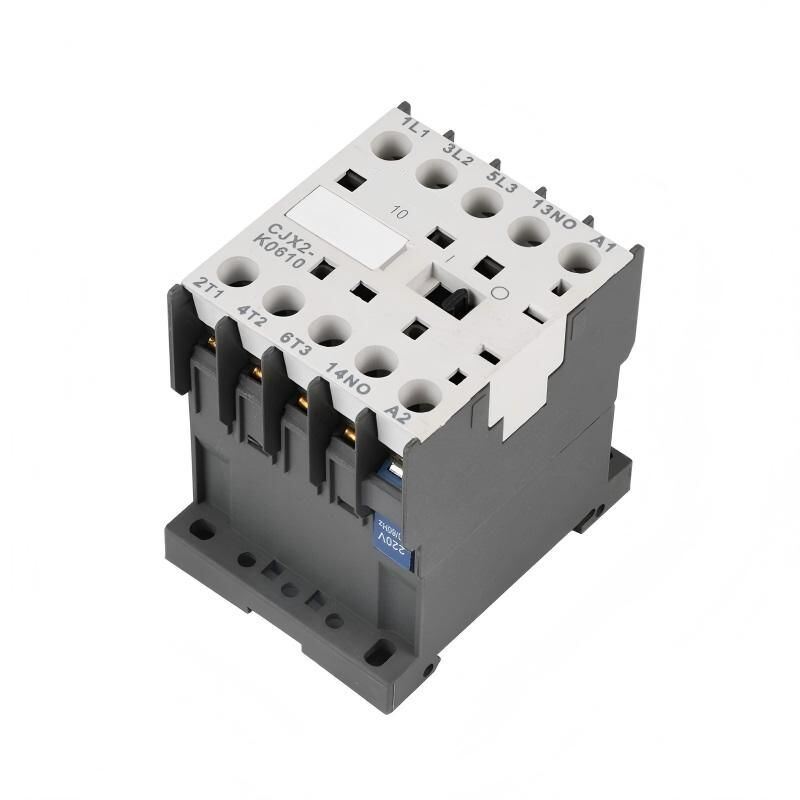

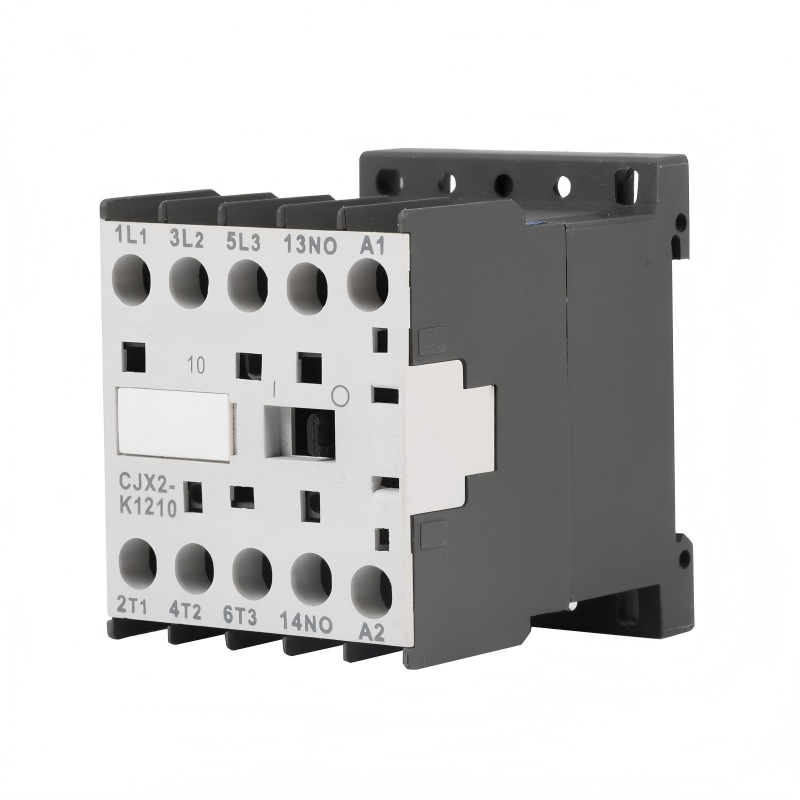

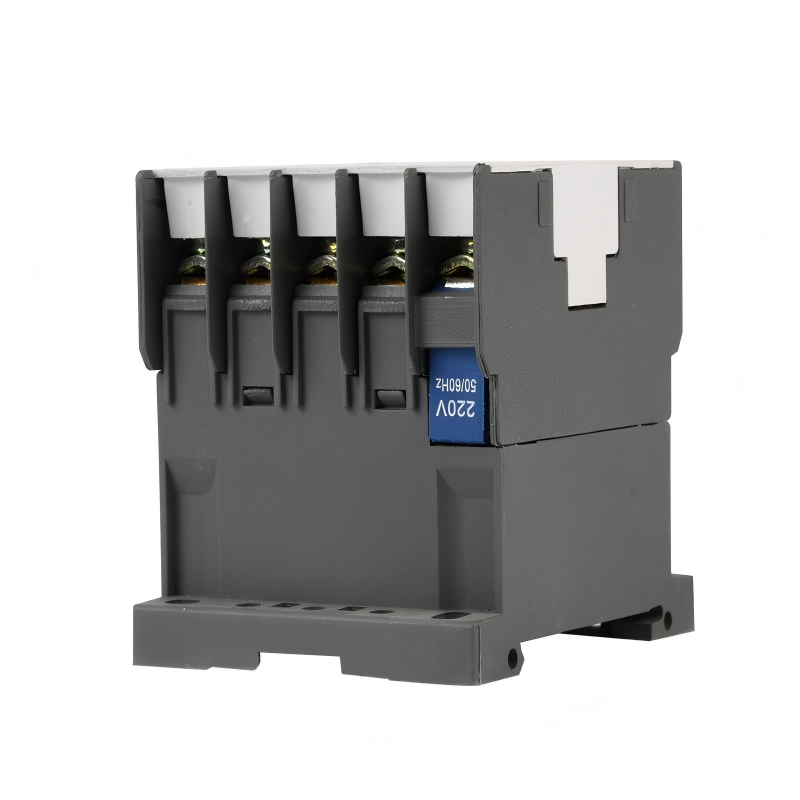

Product Images

Frequently Asked Questions

What are the available models for the Contactor?

The available models are CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.

Where is the Contactor manufactured?

The YOKG AC Electric Contactor is manufactured in China.

What is the minimum order quantity for the Contactor?

The minimum order quantity is 100 units.

What payment terms for purchasing the AC Electric Contactor?

YOKG accepts payment via T/T (Telegraphic Transfer) and L/C (Letter of Credit).

What applications are suitable for the Contactor models CJX2-K series?

The CJX2-K series AC Electric Contactors are suitable for controlling electric motors, lighting, heating, and other electrical loads in industrial and commercial applications.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16

Minimum Order Quantity:	500
Packaging Details:	Each unit be packed in one individual inner box
Payment Terms:	T/T,L/C
